Information supply pump
BOSCH
9 440 610 062
9440610062
ZEXEL
105220-5280
1052205280

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

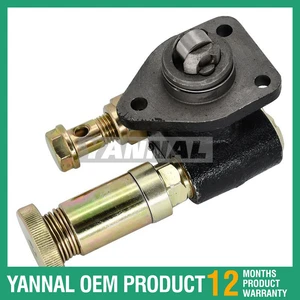

For Holdwell Fuel Feed Pump 105220-5280 For Komatsu Engine 6D95 Excavator PC200-5 PC220-5 PC200LC-5 PC200-6
Generic Fit For Komatsu Engine: 6D95, 6D102 || Fit For Komatsu Excavator: PC200-5, PC220-5, PC200LC-5, PC200-6, PC220-7
Generic Fit For Komatsu Engine: 6D95, 6D102 || Fit For Komatsu Excavator: PC200-5, PC220-5, PC200LC-5, PC200-6, PC220-7
BCXFORK Fuel Feed Pump 105220-5280 for Komatsu Engine 6D95 Excavator PC200-5 PC220-5 PC200LC-5 PC200-6
BCXFORK [IMPORTANT] Please make sure your old part number matches the one in the listing before placing an order. We ship based on the part number in the listing. If you're unsure if this product fits your vehicle, please provide the part number and a picture of your old starter for verification. || Part Number: 105220-5280, 1052205280 || This item fits for Komatsu Excavator: PC200-5, PC220-5, PC200LC-5, PC200-6, PC220-7 || package include: fuel pump
BCXFORK [IMPORTANT] Please make sure your old part number matches the one in the listing before placing an order. We ship based on the part number in the listing. If you're unsure if this product fits your vehicle, please provide the part number and a picture of your old starter for verification. || Part Number: 105220-5280, 1052205280 || This item fits for Komatsu Excavator: PC200-5, PC220-5, PC200LC-5, PC200-6, PC220-7 || package include: fuel pump
Scheme ###:
1. | [1] | 152003-1020 | PUMP HOUSING |
5. | [1] | 152100-1120 | PUMP PLUNGER |
6. | [1] | 152102-1600 | COMPRESSION SPRING |
7. | [1] | 152105-1500 | CAPSULE |
8. | [1] | 029332-6030 | GASKET |
10. | [1] | 152111-2820 | TAPPET |
10/2. | [1] | 152112-0100 | ROLLER |
10/3. | [1] | 152113-0700 | BEARING PIN |
10/4. | [2] | 152114-0400 | SLIDER |
14. | [2] | 152115-0500 | VALVE BODY |
14. | [2] | 152115-0500 | VALVE BODY |
15. | [2] | 152116-0200 | COILED SPRING |
15. | [2] | 152116-0200 | COILED SPRING |
17. | [1] | 152118-0900 | ADAPTOR |
18. | [1] | 029631-6060 | O-RING |
19. | [1] | 029631-6060 | O-RING |
20. | [1] | 152121-0200 | LOCKING WASHER |
25. | [1] | 152200-5420 | HAND PRIMER |
30. | [1] | 152300-5920 | EYE BOLT |
32. | [1] | 029731-4680 | EYE BOLT |
33. | [1] | 029711-4310 | INLET UNION |
35. | [2] | 029341-4130 | GASKET D20&13.8T2* |
35. | [2] | 029341-4130 | GASKET D20&13.8T2* |
36. | [2] | 029341-4130 | GASKET D20&13.8T2* |
42. | [1] | 152320-0100 | COVER |
Include in #1:
101452-3000
as SUPPLY PUMP
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Before any service work is to be done on this fuel system, the outer surface of the injection pump housing must be clean.
The fuel injection pump housing and governor has been removed from the engine for illustration purposes. 1. Remove the flange (1) and the flange assembly from the cover.2. Remove the cover (2) from the pump housing. 3. Remove the bypass valve (3) and springs from the pump housing. 4. Install tooling (A) on the fuel injection pump and loosen the bushing from the pump housing. Do not loosen the screws (4) that hold the levers to the shaft when removing or installing pumps. If the levers are moved, fuel pump calibration will be changed. 5. Remove the fuel injection pump (5) from the pump housing. The sleeve (6) on the plunger will slide off the lever as the pump is removed.6. Do Steps 4 and 5 for the remainder of the pumps.Install Fuel Injection Pumps
1. Turn the camshaft until the lifter for the pump to be installed is at its lowest position. 2. Install the fuel injection pump (1) in the bore of the pump housing.3. The sleeve (2) will be engaged with the lever when the pump is installed correctly.
If the levers have been moved on the shaft, fuel pump calibration must be made. (See Testing and Adjusting).
4. Tighten the bushing with tooling (A) to a torque of 70 5 lb.ft. (9.7 0.7 mkg).5. Do Steps 1 through 4 for the remainder of the pumps. 6. Install the bypass valve and spring (3) in the pump housing. 7. Install the cover (5) on the pump housing. Be sure the spring (3) is in the bore in the cover.8. Install the flange (4) and the flange assembly on the cover.Disassemble Fuel Injection Pumps
start by: a) remove fuel injection pumps 1. Remove the bushing (1) and seal from the bonnet (2).2. Remove the ring (3) from the bonnet and barrel (7). Remove the check valve (6) and spring (4) from the bonnet.3. Remove the spring (8) and washer (5). Remove the plunger (9) and sleeve (10). Keep the plunger and sleeve with their respective barrel for installation. Do not use plungers, sleeves and barrels with other plungers, sleeves and barrels.Assemble Fuel Injection Pumps
1. Install the sleeve (4), plunger (5), spring (2) and washer (3) on the barrel (1). Be sure the sleeve and plunger are installed in their original barrel and the large hole in the plunger is up. The sleeve must be installed with the thin flange up.2. Install the check valve and spring in the bonnet. Connect the barrel and bonnet and install the ring. Install the seal and bushing on the bonnet.end by: a) install fuel injection pumps
