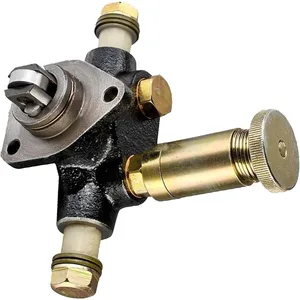

Information supply pump
BOSCH
9 440 610 115
9440610115
ZEXEL
105220-4932
1052204932

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below
CARTEX Fuel Feed Pump 8941327070 8971219100 for FITS Isuzu Engine 4BG1 FITS HITACHI Excavator EX100-2 EX120-5 EX160LC-5 ZX120 ZX95
CARTEX Whether you're a professional mechanic or a DIY enthusiast,We've got you covered with a wide range of parts that meet the highest standards of quality and performance. || Order your High Quality Part with peace of mind, knowing we prioritize your satisfaction. Quality Parts, Superior Performance - it's not just a promise, it's our standard || QUESTIONS? : We at CARTEX - High Quality Parts USA has more than 40 years of experience in industry and has in-house technicians, If you are not sure if this part fits your machine or tractor, just send us an email before you make the purchase and our in house technicians will revert back to you, right away.
CARTEX Whether you're a professional mechanic or a DIY enthusiast,We've got you covered with a wide range of parts that meet the highest standards of quality and performance. || Order your High Quality Part with peace of mind, knowing we prioritize your satisfaction. Quality Parts, Superior Performance - it's not just a promise, it's our standard || QUESTIONS? : We at CARTEX - High Quality Parts USA has more than 40 years of experience in industry and has in-house technicians, If you are not sure if this part fits your machine or tractor, just send us an email before you make the purchase and our in house technicians will revert back to you, right away.
Fuel Pump Compatible with Hitachi Excavator EX120-5 EX150-5 Fit for 105220-4932 105220-4991
AMPSTOE Fits Isuzu EX100 4BD1 Engine; For Hitachi Excavator EX120-5 EX150-5 || Part Number: For 105220-4932 105220-4991 105220-6250 1052204932 1052204991 1052206250 || Package includes: 1X Fuel Pump as pictured || Please check the pictures and description before ordering it. Make sure it's what you need. || If you have any problems after purchasing, please contact us in time before opening return or case.
AMPSTOE Fits Isuzu EX100 4BD1 Engine; For Hitachi Excavator EX120-5 EX150-5 || Part Number: For 105220-4932 105220-4991 105220-6250 1052204932 1052204991 1052206250 || Package includes: 1X Fuel Pump as pictured || Please check the pictures and description before ordering it. Make sure it's what you need. || If you have any problems after purchasing, please contact us in time before opening return or case.
Scheme ###:
1. | [1] | 152003-0720 | PUMP HOUSING |
5. | [1] | 152100-1120 | PUMP PLUNGER |
6. | [1] | 152102-0400 | COMPRESSION SPRING |
7. | [1] | 152105-1500 | CAPSULE |
8. | [1] | 029332-6030 | GASKET |
10. | [1] | 152111-2820 | TAPPET |
10/2. | [1] | 152112-0100 | ROLLER |
10/3. | [1] | 152113-0700 | BEARING PIN |
10/4. | [2] | 152114-0400 | SLIDER |
14. | [2] | 152115-0200 | VALVE BODY |
14. | [2] | 152115-0200 | VALVE BODY |
15. | [2] | 152116-0200 | COILED SPRING |
15. | [2] | 152116-0200 | COILED SPRING |
17. | [1] | 152118-0900 | ADAPTOR |
18. | [1] | 029631-6060 | O-RING |
19. | [1] | 029631-6060 | O-RING |
20. | [1] | 152121-0200 | LOCKING WASHER |
25. | [1] | 152200-5420 | HAND PRIMER |
30. | [1] | 152300-5620 | EYE BOLT |
32. | [1] | 029731-4580 | EYE BOLT |
35. | [2] | 029341-4080 | GASKET |
36. | [2] | 029341-4080 | GASKET |
Include in #1:
101401-0350
as SUPPLY PUMP
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Start By:a. remove oil pumpb. remove oil pan plate 1. Turn the crankshaft until two pistons are at the bottom center. Remove connecting rod caps (1) from the two connecting rods. Remove the lower half of the rod bearing from the rod bearing cap.2. Push the connecting rods away from the crankshaft. Remove the upper half of the rod bearing from the connecting rod. Install the connecting rod bearings dry when the clearance checks are made. Put clean engine oil on the connecting rod bearings for final assembly.3. Install the upper half of the rod bearing in the connecting rod.4. Install the lower half of the rod bearing in the connecting rod cap. Be sure the tabs in the back of the connecting rod bearings are in the tab grooves of the connecting rod and cap. 5. Use Plastigage (A) to check the connecting rod bearing clearance.6. Put Plastigage (A) on the connecting rod bearing.7. Put 2P2506 Thread Lubricant on the threads of the rod bolts and seat surfaces of the nuts.
When connecting rod caps are installed, make sure the number on the side of the cap is next to and respective with the number on the side of the connecting rod.
Do not turn the crankshaft when Plastigage (A) is in position.
Do not use an impact wrench to tighten the nuts the additional 90°.
8. Install connecting rod cap (1). Install the nuts. Tighten the nuts to a torque of 40 4 N m (30 3 lb ft). Put a mark on each nut and the end of each bolt. Tighten the nuts 90° more. Remove the connecting rod caps. Remove Plastigage (A) and measure the width of the Plastigage. The connecting rod clearance must be 0.076 to 0.168 mm (.0030 to .0066 in) for new bearings. The maximum clearance with used bearings is 0.25 mm (.010 in).9. Install the connecting rod caps and tighten the nuts as in Step 8.10. Do Steps 1 through 9 for the remainder of the connecting rod bearings.End By:a. install oil pan plateb. install oil pump
When connecting rod caps are installed, make sure the number on the side of the cap is next to and respective with the number on the side of the connecting rod.
Do not turn the crankshaft when Plastigage (A) is in position.
Do not use an impact wrench to tighten the nuts the additional 90°.
8. Install connecting rod cap (1). Install the nuts. Tighten the nuts to a torque of 40 4 N m (30 3 lb ft). Put a mark on each nut and the end of each bolt. Tighten the nuts 90° more. Remove the connecting rod caps. Remove Plastigage (A) and measure the width of the Plastigage. The connecting rod clearance must be 0.076 to 0.168 mm (.0030 to .0066 in) for new bearings. The maximum clearance with used bearings is 0.25 mm (.010 in).9. Install the connecting rod caps and tighten the nuts as in Step 8.10. Do Steps 1 through 9 for the remainder of the connecting rod bearings.End By:a. install oil pan plateb. install oil pump
