Information injection-pump assembly
BOSCH
9 460 614 191
9460614191
ZEXEL
104780-3100
1047803100
MITSUBISHI-HEAV
32A6510320
32a6510320
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below
Diesel Fuel Injection Pump 104680-3100 104780-3100 104780-3101 NP-VE4/10F1075RNP2490 32A65-10320 Compatible With S4S
LXXMZJT Quiet performance: EFI pumps are designed to reduce noise and vibration during operation and improve driving comfort || Easy maintenance: Fuel supply pumps are usually designed with easy installation and maintenance in mind, reducing operating costs || Strong adaptability: the fuel pump can adapt to different types of fuel, including gasoline, diesel, etc., to meet the needs of a variety of models || Strong fuel supply: The high pressure fuel pump can ensure that the fuel can be transported to the engine at sufficient pressure to improve the fuel combustion efficiency || Diesel Fuel Injection Pump 104680-3100 104780-3100 104780-3101 NP-VE4/10F1075RNP2490 32A65-10320 Compatible With S4S
LXXMZJT Quiet performance: EFI pumps are designed to reduce noise and vibration during operation and improve driving comfort || Easy maintenance: Fuel supply pumps are usually designed with easy installation and maintenance in mind, reducing operating costs || Strong adaptability: the fuel pump can adapt to different types of fuel, including gasoline, diesel, etc., to meet the needs of a variety of models || Strong fuel supply: The high pressure fuel pump can ensure that the fuel can be transported to the engine at sufficient pressure to improve the fuel combustion efficiency || Diesel Fuel Injection Pump 104680-3100 104780-3100 104780-3101 NP-VE4/10F1075RNP2490 32A65-10320 Compatible With S4S

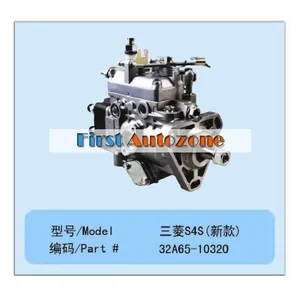

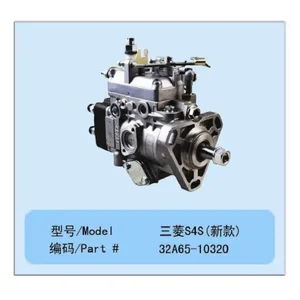

Compatible for Mitsubishi S4S Diesel Engine Fuel Injection Pump 32A65-10320
KCUHQWA Strong durability: usually made of sturdy materials and advanced manufacturing processes, with a long service life. || Wide adaptability: Suitable for diesel engines of different types and powers. || Energy conservation and emission reduction: By precisely controlling fuel injection, it helps to reduce exhaust emissions and fuel consumption. || High reliability: reduces the probability of engine failure caused by fuel supply issues. || Compatible for Mitsubishi S4S Diesel Engine Fuel Injection Pump 32A65-10320
KCUHQWA Strong durability: usually made of sturdy materials and advanced manufacturing processes, with a long service life. || Wide adaptability: Suitable for diesel engines of different types and powers. || Energy conservation and emission reduction: By precisely controlling fuel injection, it helps to reduce exhaust emissions and fuel consumption. || High reliability: reduces the probability of engine failure caused by fuel supply issues. || Compatible for Mitsubishi S4S Diesel Engine Fuel Injection Pump 32A65-10320
Diesel Fuel Injection Pump 104680-3100 104780-3100 104780-3101 NP-VE4/10F1075RNP2490 32A65-10320, Compatible For MITSUBISHI S4S
LUVCAASXQ Top-notch Quality: Engineered to OE standards, high-performance fuel pumps boast robust suction power and consistent fuel delivery, and undergo stringent quality checks to ensure longevity and durability || Fuel Efficiency Enhancement:Diesel fuel pumps are designed to optimize fuel delivery, enhancing overall engine efficiency and performance || Precise Fuel Delivery:These Fuel pumps are engineered to deliver fuel at precise rates and pressures, ensuring optimal combustion and reducing the risk of engine damage || Precise Fuel Metering : Accurately delivering the right amount of fuel to the engine for smooth running and reduced emissions || Diesel Fuel Injection Pump 104680-3100 104780-3100 104780-3101 NP-VE4/10F1075RNP2490 32A65-10320 , Compatible For MITSUBISHI S4S
LUVCAASXQ Top-notch Quality: Engineered to OE standards, high-performance fuel pumps boast robust suction power and consistent fuel delivery, and undergo stringent quality checks to ensure longevity and durability || Fuel Efficiency Enhancement:Diesel fuel pumps are designed to optimize fuel delivery, enhancing overall engine efficiency and performance || Precise Fuel Delivery:These Fuel pumps are engineered to deliver fuel at precise rates and pressures, ensuring optimal combustion and reducing the risk of engine damage || Precise Fuel Metering : Accurately delivering the right amount of fuel to the engine for smooth running and reduced emissions || Diesel Fuel Injection Pump 104680-3100 104780-3100 104780-3101 NP-VE4/10F1075RNP2490 32A65-10320 , Compatible For MITSUBISHI S4S
Components :
0. | INJECTION-PUMP ASSEMBLY | 104780-3100 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104680-3100 |
3. | NUMBER PLATE | 146989-4800 |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105148-1620 |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 11.8{120} |
10. | NOZZLE-HOLDER | 105078-0220 |
11. | NOZZLE | 105007-1490 |
Scheme ###:
1/6. | [1] | 146601-0900 | PACKING RING |
6. | [1] | 146100-0420 | SUPPLY PUMP |
9. | [1] | 146103-0100 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0020 | DRIVE SHAFT |
12/1. | [1] | 146200-0000 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-2320 | ROLLER SET |
24. | [1] | 146303-0000 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0000 | SLOTTED WASHER |
29. | [1] | 146220-4820 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146311-5420 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
34. | [1] | 146312-6300 | COMPRESSION SPRING |
34B. | [1] | 146312-6200 | COMPRESSION SPRING |
35/1. | [1] | 146690-3200 | SHIM D11.5&9.4T0.1 |
35/1. | [1] | 146690-3300 | SHIM D11.5&9.4T0.2 |
35/1. | [1] | 146690-3400 | SHIM D11.5&9.4T0.25 |
35/1. | [1] | 146690-3500 | SHIM D11.5&9.4T1.0 |
35/1. | [1] | 146690-4100 | SHIM D11.5&9.4T2 |
35/1. | [1] | 146690-4200 | SHIM D11.5&9.4T0.5 |
35/1. | [1] | 146690-4300 | SHIM D11.5&9.4T0.75 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-4020 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-0100 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
41. | [1] | 146312-1900 | COMPRESSION SPRING |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM D17&5.2T2.1 |
48/1. | [1] | 146690-5900 | SHIM D17&5.2T2.2 |
48/1. | [1] | 146690-6000 | SHIM D17&5.2T2.3 |
48/1. | [1] | 146690-6100 | SHIM D17&5.2T2.4 |
48/1. | [1] | 146690-6200 | SHIM D17&5.2T2.5 |
48/1. | [1] | 146690-6300 | SHIM D17&5.2T2.6 |
48/1. | [1] | 146690-6400 | SHIM D17&5.2T2.7 |
48/1. | [1] | 146690-6500 | SHIM D17&5.2T2.8 |
48/1. | [1] | 146690-6600 | SHIM D17&5.2T2.9 |
48/1. | [1] | 146690-6700 | SHIM D17&5.2T3.0 |
48/1. | [1] | 146690-6800 | SHIM D17&5.2T3.1 |
48/1. | [1] | 146690-6900 | SHIM D17&5.2T3.2 |
48/1. | [1] | 146690-7000 | SHIM D17&5.2T3.3 |
48/1. | [1] | 146690-7100 | SHIM D17&5.2T3.4 |
48/1. | [1] | 146690-7200 | SHIM D17&5.2T0.4 |
48/1. | [1] | 146690-7300 | SHIM D17&5.2T0.6 |
48/1. | [1] | 146690-7400 | SHIM D17&5.2T0.7 |
48/1. | [1] | 146690-7500 | SHIM D17&5.2T1.9 |
48/1. | [1] | 146690-7800 | SHIM D17&5.2T0.2 |
49. | [2] | 146234-0600 | GUIDE PIN |
50. | [1] | 146403-9520 | HYDRAULIC HEAD |
50. | [1] | 146403-9520 | HYDRAULIC HEAD |
50. | [1] | 146403-9520 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
55. | [4] | 146430-0320 | DELIVERY-VALVE ASSEMBLY |
56. | [4] | 146432-0000 | COMPRESSION SPRING |
58. | [4] | 146440-0220 | FITTING |
60. | [3] | 139106-0100 | FLAT-HEAD SCREW |
67. | [1] | 146822-0120 | GOVERNOR COVER |
67/1. | [1] | 146508-1022 | GOVERNOR COVER |
67/2. | [1] | 146515-2520 | CONTROL SHAFT |
67/3. | [1] | 146600-0100 | O-RING |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/5. | [1] | 146832-5500 | CONTROL LEVER MARK:255 |
67/5B. | [1] | 146832-5600 | CONTROL LEVER MARK:256 |
67/5C. | [1] | 146832-9300 | CONTROL LEVER MARK:293 |
67/5D. | [1] | 146832-9400 | CONTROL LEVER MARK:294 |
67/6. | [2] | 014110-6440 | LOCKING WASHER |
67/6. | [2] | 014110-6440 | LOCKING WASHER |
67/7. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/8. | [1] | 146515-1820 | LEVER SHAFT |
67/9. | [1] | 146587-4500 | COILED SPRING |
67/10. | [1] | 146600-0200 | O-RING |
67/11. | [1] | 146602-0100 | PLAIN WASHER D14&10.1T1.50 |
67/12. | [1] | 146540-1300 | CONTROL LEVER |
67/12B. | [1] | 146540-1400 | CONTROL LEVER MARK:0 |
67/12C. | [1] | 146540-5200 | CONTROL LEVER |
67/12D. | [1] | 146540-5300 | CONTROL LEVER |
67/13. | [1] | 146621-1700 | UNION NUT |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-2800 | BLEEDER SCREW |
67/16. | [1] | 146526-3400 | BLEEDER SCREW |
67/18. | [1] | 146587-0400 | COILED SPRING |
67/19. | [1] | 146541-0000 | ANGLE PIECE |
67/23. | [1] | 146925-2520 | BRACKET |
67/24. | [2] | 139006-4500 | BLEEDER SCREW |
67/25. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/78. | [1] | 146600-4400 | SEAL RING |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-3400 | THREADED PIN L53.00 |
67/201B. | [1] | 146545-3500 | THREADED PIN L55.00 |
67/201C. | [1] | 146545-3600 | THREADED PIN L57.00 |
67/202. | [1] | 139208-0900 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
95. | [1] | 146871-8720 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0420 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER D20&8.4T1.40 |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-2600 | PLAIN WASHER D34&13T1.0 |
115. | [1] | 146976-1200 | SLIDING SLEEVE |
116. | [1] | 146576-0200 | CAP |
117/1. | [1] | 146577-1800 | PLUG L2.10 |
117/1. | [1] | 146577-1900 | PLUG L2.30 |
117/1. | [1] | 146577-2000 | PLUG L2.50 |
117/1. | [1] | 146577-2100 | PLUG L2.70 |
117/1. | [1] | 146577-2200 | PLUG L2.90 |
117/1. | [1] | 146577-2300 | PLUG L3.10 |
117/1. | [1] | 146577-2400 | PLUG L3.30 |
117/1. | [1] | 146577-2500 | PLUG L3.50 |
117/1. | [1] | 146577-2600 | PLUG L3.70 |
117/1. | [1] | 146577-2700 | PLUG L3.90 |
117/1. | [1] | 146577-2800 | PLUG L4.10 |
117/1. | [1] | 146577-2900 | PLUG L4.30 |
117/1. | [1] | 146577-3000 | PLUG L4.50 |
117/1. | [1] | 146577-3100 | PLUG L4.70 |
117/1. | [1] | 146577-3200 | PLUG L4.90 |
117/1. | [1] | 146577-3300 | PLUG L5.10 |
117/1. | [1] | 146577-6700 | PLUG L2.2 |
117/1. | [1] | 146577-6800 | PLUG L2.4 |
117/1. | [1] | 146577-6900 | PLUG L2.6 |
117/1. | [1] | 146577-7000 | PLUG L2.8 |
117/1. | [1] | 146577-7100 | PLUG L3.0 |
117/1. | [1] | 146577-7200 | PLUG L3.2 |
117/1. | [1] | 146577-7300 | PLUG L3.4 |
117/1. | [1] | 146577-7400 | PLUG L3.6 |
117/1. | [1] | 146577-7500 | PLUG L3.8 |
117/1. | [1] | 146577-7600 | PLUG L4.0 |
117/1. | [1] | 146577-7700 | PLUG L4.2 |
117/1. | [1] | 146577-7800 | PLUG L4.4 |
117/1. | [1] | 146577-7900 | PLUG L4.6 |
117/1. | [1] | 146577-8000 | PLUG L4.8 |
117/1. | [1] | 146577-8100 | PLUG L5.0 |
117/1. | [1] | 146877-0000 | PLUG L5.2 |
117/1. | [1] | 146877-0100 | PLUG L5.3 |
117/1. | [1] | 146877-0200 | PLUG L5.4 |
117/1. | [1] | 146877-0300 | PLUG L5.5 |
117/1. | [1] | 146877-4700 | PLUG |
117/1. | [1] | 146877-4800 | PLUG |
117/1. | [1] | 146877-4900 | PLUG |
117/1. | [1] | 146877-5000 | PLUG |
120. | [1] | 146879-3320 | RETAINING PIN |
122. | [1] | 146580-1400 | GOVERNOR SPRING |
123. | [4] | 139106-0200 | FLAT-HEAD SCREW |
130. | [1] | 146421-0020 | CAPSULE |
130/2. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
130/3. | [1] | 146422-0000 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0220 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-0120 | OVER FLOW VALVE |
137. | [2] | 139512-0500 | GASKET |
200. | [1] | 146206-0100 | COILED SPRING |
235. | [1] | 146935-8601 | BRACKET |
236. | [2] | 010206-2240 | HEX-SOCKET-HEAD CAP SCREW |
237. | [1] | 146620-0200 | HEX-SOCKET-HEAD CAP SCREW |
240. | [1] | 146650-1220 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146662-1420 | WIRE |
243. | [1] | 146621-4901 | UNION NUT |
245. | [1] | 139512-0500 | GASKET |
247. | [1] | 146669-1720 | INLET UNION |
251. | [1] | 146125-0101 | FILTER |
252. | [1] | 146125-0200 | COILED SPRING |
800S. | [1] | 146020-1820 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0900 | PACKING RING |
804S. | [1] | 146232-0720 | COMPRESSION SPRING |
805S. | [1] | 146574-0320 | PARTS SET |
810S. | [1] | 146600-1120 | REPAIR SET |
821S. | [1] | 146210-5720 | ROLLER SET |
835S. | [1] | 146598-1000 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
906. | [1] | 146989-4800 | NAMEPLATE |
907. | [1] | 025803-1640 | WOODRUFF KEY |
908. | [1] | 013021-2140 | UNION NUT M12P1.75H10 |
909. | [1] | 014111-2440 | LOCKING WASHER D21.5&12.2T3 |
910S. | [1] | 146600-6020 | PARTS SET |
910S. | [1] | 146600-6020 | PARTS SET |
912S. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
913S. | [1] | 146422-0000 | BLEEDER SCREW |
914S. | [1] | 146699-0020 | VALVE SET |
915S. | [1] | 146662-1420 | WIRE |
916S. | [1] | 025803-1640 | WOODRUFF KEY |
Include in #2:
104780-3100
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
9 460 614 191
9460614191
ZEXEL
104780-3100
1047803100
MITSUBISHI-HEAV
32A6510320
32a6510320
Zexel num
Bosch num
Firm num
Name
9 460 614 191
32A6510320 MITSUBISHI-HEAV
INJECTION-PUMP ASSEMBLY
S4S * K 11CJ INJECTION PUMP ASSY VE4 VE
S4S * K 11CJ INJECTION PUMP ASSY VE4 VE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113orSAEJ967d
1404 Test oil ISO4113orSAEJ967d
Test oil temperature
degC
45
45
50
Nozzle
105780-0060
Bosch type code
NP-DN0SD1510
Nozzle holder
105780-2150
Opening pressure
MPa
13
13
13.3
Opening pressure
kgf/cm2
133
133
136
Injection pipe
157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450
Inside diameter - outside diameter - length (mm) mm 2-6-450
Joint assembly
157641-4720
Tube assembly
157641-4020
Transfer pump pressure
kPa
20
20
20
Transfer pump pressure
kgf/cm2
0.2
0.2
0.2
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
46.4
45.9
46.9
Difference in delivery
mm3/st.
4
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_02
Pump speed
r/min
400
400
400
Average injection quantity
mm3/st.
42.8
38.8
46.8
Oil temperature
degC
48
46
50
Injection timing adjustment_03
Pump speed
r/min
700
700
700
Average injection quantity
mm3/st.
43.9
39.9
47.9
Oil temperature
degC
50
48
52
Injection timing adjustment_04
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
46.4
45.4
47.4
Difference in delivery
mm3/st.
4.5
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_05
Pump speed
r/min
1050
1050
1050
Average injection quantity
mm3/st.
46.7
43.2
50.2
Oil temperature
degC
50
48
52
Injection quantity adjustment
Pump speed
r/min
1150
1150
1150
Average injection quantity
mm3/st.
15.4
13.4
17.4
Difference in delivery
mm3/st.
2
Basic
*
Oil temperature
degC
50
48
52
Injection quantity adjustment_02
Pump speed
r/min
1275
1275
1275
Average injection quantity
mm3/st.
3
Oil temperature
degC
50
48
52
Injection quantity adjustment_03
Pump speed
r/min
1150
1150
1150
Average injection quantity
mm3/st.
15.4
10.4
20.4
Difference in delivery
mm3/st.
4
Basic
*
Oil temperature
degC
50
48
52
Governor adjustment
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
15.9
13.9
17.9
Difference in delivery
mm3/st.
2
Basic
*
Oil temperature
degC
48
46
50
Governor adjustment_02
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
15.9
13.4
18.4
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
48
46
50
Timer adjustment
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
58.3
53.3
63.3
Basic
*
Oil temperature
degC
48
46
50
Remarks
Full
Full
Timer adjustment_02
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
58.3
53.3
63.3
Oil temperature
degC
48
46
50
Remarks
Full
Full
Speed control lever angle
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF at idling position
Magnet OFF at idling position
0000000901
Pump speed
r/min
800
800
800
Overflow quantity
cm3/min
420
290
550
Oil temperature
degC
50
48
52
Stop lever angle
Pump speed
r/min
800
800
800
Pressure
kPa
549
520
578
Pressure
kgf/cm2
5.6
5.3
5.9
Basic
*
Oil temperature
degC
50
48
52
0000001101
Pump speed
r/min
800
800
800
Timer stroke
mm
2.5
2.3
2.7
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
600
600
600
Timer stroke
mm
1
0.4
1.6
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
800
800
800
Timer stroke
mm
2.5
2.1
2.9
Basic
*
Oil temperature
degC
50
48
52
_04
Pump speed
r/min
1000
1000
1000
Timer stroke
mm
3.9
3.3
4.5
Oil temperature
degC
50
48
52
_05
Pump speed
r/min
1100
1100
1100
Timer stroke
mm
4.1
3.6
4.5
Oil temperature
degC
50
48
52
0000001201
Max. applied voltage
V
8
8
8
Test voltage
V
13
12
14
0000001401
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
17
16.5
17.5
Timer stroke TA
mm
3
2.8
3.2
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
1100
1100
1100
Average injection quantity
mm3/st.
22
21
23
Timer stroke TA
mm
4.1
3.6
4.5
Timer stroke variation dT
mm
0
0
0
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
1100
1100
1100
Average injection quantity
mm3/st.
14
13
15
Timer stroke TA
mm
2.5
1.5
3.5
Timer stroke variation dT
mm
1.6
1.6
1.6
Oil temperature
degC
50
48
52
Timing setting
K dimension
mm
3.3
3.2
3.4
KF dimension
mm
5.8
5.7
5.9
MS dimension
mm
2.5
2.4
2.6
Control lever angle alpha
deg.
25
21
29
Control lever angle beta
deg.
27
22
32
Test data Ex:
0000001801 STARTING I/Q ADJUSTMENT
Starting Q decrease lever adjustment
Adjust using the screw (A) so that the standards are satisfied, then fix using the nut (B) (Torque to T after adjustment)
Screw protrusion: L
(C) = Cap
(D) = Stop lever
----------
L=7.4~11.1mm T=6~9N-m(0.6~0.9kgf-m)
----------
L=7.4~11.1mm T=6~9N-m(0.6~0.9kgf-m) SW=SW10
----------
L=7.4~11.1mm T=6~9N-m(0.6~0.9kgf-m)
----------
L=7.4~11.1mm T=6~9N-m(0.6~0.9kgf-m) SW=SW10
