Information injection-pump assembly
BOSCH
9 460 613 367
9460613367
ZEXEL
104749-5530
1047495530
ISUZU
8972207420
8972207420
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

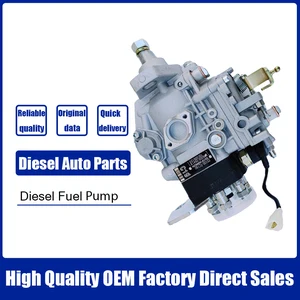

BsapP Diesel Fuel Injection Pump 104649-5530 104749-5530 104749-5531 NP-VE4/9F1250LNP2184 8972207420 Compatible For ISUZU, jiejie945613 store
BsapP High-quality products with strong applicability. || Made of high quality materials, it is resistant to high temperature, wear and corrosion. || Plug and play, no splicing or cutting, easy installation and durability. || Precision work, high precision, stable performance, good quality, good decoration and long service life. || Diesel Fuel Injection Pump 104649-5530 104749-5530 104749-5531 NP-VE4/9F1250LNP2184 8972207420 Compatible For ISUZU
BsapP High-quality products with strong applicability. || Made of high quality materials, it is resistant to high temperature, wear and corrosion. || Plug and play, no splicing or cutting, easy installation and durability. || Precision work, high precision, stable performance, good quality, good decoration and long service life. || Diesel Fuel Injection Pump 104649-5530 104749-5530 104749-5531 NP-VE4/9F1250LNP2184 8972207420 Compatible For ISUZU
$1,250.30
20 Oct 2023
0.0022[0.00] pounds
CN: meiyuanlei
Diesel Fuel Injection Pump 104649-5530 104749-5530 104749-5531 NP-VE4/9F1250LNP2184 8972207420,Compatible For ISUZU
AKkis ☆ Diesel Fuel Injection Pump 104649-5530 104749-5530 104749-5531 NP-VE4/9F1250LNP2184 8972207420,Compatible For ISUZU || ☆ Quiet: The fuel pump is carefully designed and optimized, with low noise level, reducing noise interference during vehicle driving and improving driving experience and comfort. || ☆ High efficiency: The fuel pump can deliver fuel to the engine in a very short time to ensure the smooth operation and efficient combustion of the engine, thereby improving fuel utilization and vehicle performance. || ☆ Stability: Using advanced technology and design, it ensures stable fuel supply under various working conditions and prevents insufficient or excessive fuel reserve, thereby improving the driving safety and reliability of the car. || ☆ Energy saving and environmental protection: The fuel pump can intelligently adjust the amount of fuel supply according to the needs of the engine, avoid energy waste and excessive exhaust emissions, reduce environmental pollution, and improve fuel economy.
AKkis ☆ Diesel Fuel Injection Pump 104649-5530 104749-5530 104749-5531 NP-VE4/9F1250LNP2184 8972207420,Compatible For ISUZU || ☆ Quiet: The fuel pump is carefully designed and optimized, with low noise level, reducing noise interference during vehicle driving and improving driving experience and comfort. || ☆ High efficiency: The fuel pump can deliver fuel to the engine in a very short time to ensure the smooth operation and efficient combustion of the engine, thereby improving fuel utilization and vehicle performance. || ☆ Stability: Using advanced technology and design, it ensures stable fuel supply under various working conditions and prevents insufficient or excessive fuel reserve, thereby improving the driving safety and reliability of the car. || ☆ Energy saving and environmental protection: The fuel pump can intelligently adjust the amount of fuel supply according to the needs of the engine, avoid energy waste and excessive exhaust emissions, reduce environmental pollution, and improve fuel economy.
Components :
0. | INJECTION-PUMP ASSEMBLY | 104749-5530 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104649-5530 |
3. | NUMBER PLATE | 146969-1700 |
4. | _ | |
5. | CAPSULE | 146620-0120 |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105151-1451 |
8. | Nozzle and Holder | 5-15300-039-1 |
9. | Open Pre:MPa(Kqf/cm2) | 11.8{120} |
10. | NOZZLE-HOLDER | 105081-3141 |
11. | NOZZLE | 105000-1650 |
Scheme ###:
1/6. | [1] | 146601-0700 | PACKING RING |
6. | [1] | 146100-0120 | SUPPLY PUMP |
9. | [1] | 146103-0000 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0320 | DRIVE SHAFT |
12/1. | [1] | 146200-0300 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-1720 | ROLLER SET |
24. | [1] | 146303-0000 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0000 | SLOTTED WASHER |
29. | [1] | 146220-0020 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146300-0100 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
33. | [1] | 146603-0700 | SHIM D17.5&7.5T0.60 |
34. | [1] | 146302-5400 | COMPRESSION SPRING |
34B. | [1] | 146302-4800 | COMPRESSION SPRING |
35/1. | [0] | 146603-0700 | SHIM D17.5&7.5T0.60 |
35/1. | [0] | 146603-0800 | SHIM D17.5&7.5T0.70 |
35/1. | [0] | 146603-0900 | SHIM D17.5&7.5T0.90 |
35/1. | [0] | 146603-1000 | SHIM D17.5&7.5T1.00 |
35/1. | [0] | 146603-1100 | SHIM D17.5&7.5T1.20 |
35/1. | [0] | 146603-3600 | SHIM D17.5&7.5T2.40 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-0700 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-0100 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM D17&5.2T2.1 |
48/1. | [1] | 146690-5900 | SHIM D17&5.2T2.2 |
48/1. | [1] | 146690-6000 | SHIM D17&5.2T2.3 |
48/1. | [1] | 146690-6100 | SHIM D17&5.2T2.4 |
48/1. | [1] | 146690-6200 | SHIM D17&5.2T2.5 |
48/1. | [1] | 146690-6300 | SHIM D17&5.2T2.6 |
48/1. | [1] | 146690-6400 | SHIM D17&5.2T2.7 |
48/1. | [1] | 146690-6500 | SHIM D17&5.2T2.8 |
48/1. | [1] | 146690-6600 | SHIM D17&5.2T2.9 |
48/1. | [1] | 146690-6700 | SHIM D17&5.2T3.0 |
48/1. | [1] | 146690-6800 | SHIM D17&5.2T3.1 |
48/1. | [1] | 146690-6900 | SHIM D17&5.2T3.2 |
48/1. | [1] | 146690-7000 | SHIM D17&5.2T3.3 |
48/1. | [1] | 146690-7100 | SHIM D17&5.2T3.4 |
48/1. | [1] | 146690-7200 | SHIM D17&5.2T0.4 |
48/1. | [1] | 146690-7300 | SHIM D17&5.2T0.6 |
48/1. | [1] | 146690-7400 | SHIM D17&5.2T0.7 |
48/1. | [1] | 146690-7500 | SHIM D17&5.2T1.9 |
48/1. | [1] | 146690-7800 | SHIM D17&5.2T0.2 |
49. | [2] | 146234-0500 | GUIDE PIN |
50. | [1] | 146401-1920 | HYDRAULIC HEAD |
50. | [1] | 146401-1920 | HYDRAULIC HEAD |
50. | [1] | 146401-1920 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
55. | [4] | 146430-0320 | DELIVERY-VALVE ASSEMBLY |
56. | [4] | 146432-0000 | COMPRESSION SPRING |
58. | [4] | 146440-0120 | FITTING |
60. | [4] | 139106-0100 | FLAT-HEAD SCREW |
67. | [1] | 146821-7420 | GOVERNOR COVER |
67/1. | [1] | 146508-6321 | GOVERNOR COVER |
67/2. | [1] | 146515-0320 | CONTROL SHAFT |
67/3. | [1] | 146600-0100 | O-RING |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/5. | [1] | 146535-6000 | CONTROL LEVER |
67/5B. | [1] | 146535-6100 | CONTROL LEVER |
67/6. | [2] | 014110-6440 | LOCKING WASHER |
67/6. | [2] | 014110-6440 | LOCKING WASHER |
67/7. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/8. | [1] | 146515-0120 | LEVER SHAFT |
67/9. | [1] | 146587-0100 | COILED SPRING |
67/10. | [1] | 146600-0200 | O-RING |
67/11. | [1] | 146602-0100 | PLAIN WASHER D14&10.1T1.50 |
67/12. | [1] | 146540-4200 | CONTROL LEVER |
67/12B. | [1] | 146540-4300 | CONTROL LEVER |
67/13. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-2800 | BLEEDER SCREW |
67/16. | [1] | 146526-2800 | BLEEDER SCREW |
67/18. | [1] | 146587-1100 | COILED SPRING |
67/23. | [1] | 146935-4620 | BRACKET |
67/24. | [2] | 139006-4600 | BLEEDER SCREW |
67/25. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/26. | [1] | 146925-3220 | BRACKET |
67/78. | [1] | 146600-4400 | SEAL RING |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-4600 | THREADED PIN |
67/201B. | [1] | 146545-4700 | THREADED PIN |
67/201C. | [1] | 146545-4800 | THREADED PIN |
67/202. | [1] | 146598-5000 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
67/204. | [1] | 146545-4500 | DAMPER |
95. | [1] | 146851-1620 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0100 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER D20&8.4T1.40 |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-2600 | PLAIN WASHER D34&13T1.0 |
115. | [1] | 146975-3600 | SLIDING SLEEVE |
116. | [1] | 146576-0400 | CAP |
117/1. | [1] | 146877-0820 | PLUG |
117/1. | [1] | 146877-0920 | PLUG |
117/1. | [1] | 146877-1020 | PLUG |
117/1. | [1] | 146877-1120 | PLUG |
117/1. | [1] | 146877-1220 | PLUG |
117/1. | [1] | 146877-1320 | PLUG |
117/1. | [1] | 146877-1420 | PLUG |
117/1. | [1] | 146877-1520 | PLUG |
117/1. | [1] | 146877-1620 | PLUG |
117/1. | [1] | 146877-1720 | PLUG |
117/1. | [1] | 146877-1820 | PLUG |
117/1. | [1] | 146877-1920 | PLUG |
117/1. | [1] | 146877-2020 | PLUG |
117/1. | [1] | 146877-2120 | PLUG |
117/1. | [1] | 146877-2220 | PLUG |
117/1. | [1] | 146877-2320 | PLUG |
117/1. | [1] | 146877-2420 | PLUG |
117/1. | [1] | 146877-2520 | PLUG |
117/1. | [1] | 146877-2620 | PLUG |
117/1. | [1] | 146877-2720 | PLUG |
117/1. | [1] | 146877-2820 | PLUG |
117/1. | [1] | 146877-2920 | PLUG |
117/1. | [1] | 146877-3020 | PLUG |
117/1. | [1] | 146877-3120 | PLUG |
117/1. | [1] | 146877-3220 | PLUG |
117/1. | [1] | 146877-3320 | PLUG |
117/1. | [1] | 146877-3420 | PLUG |
117/1. | [1] | 146877-3520 | PLUG |
117/1. | [1] | 146877-3620 | PLUG |
117/1. | [1] | 146877-3720 | PLUG |
117/1. | [1] | 146877-3820 | PLUG |
117/1. | [1] | 146877-3920 | PLUG |
117/1. | [1] | 146877-4020 | PLUG |
117/1. | [1] | 146877-4120 | PLUG |
117/1. | [1] | 146877-4220 | PLUG |
120. | [1] | 146579-6920 | RETAINING PIN |
122. | [1] | 146580-0100 | GOVERNOR SPRING |
123. | [4] | 139106-0200 | FLAT-HEAD SCREW |
130. | [1] | 146421-0020 | CAPSULE |
130/2. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
130/3. | [1] | 146422-0000 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0220 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-0120 | OVER FLOW VALVE |
137. | [2] | 139512-0500 | GASKET |
138. | [1] | 146610-7320 | INLET UNION |
200. | [1] | 146206-0100 | COILED SPRING |
205. | [1] | 025804-1610 | WOODRUFF KEY |
206. | [1] | 013121-4140 | UNION NUT M14P1.5H11 |
207. | [1] | 029321-4050 | LOCKING WASHER |
240. | [1] | 146650-1220 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146658-7320 | WIRE |
243. | [1] | 146621-1000 | UNION NUT |
245. | [3] | 139512-0500 | GASKET |
246. | [1] | 146125-0000 | EYE BOLT |
247. | [1] | 146610-5720 | INLET UNION |
248. | [1] | 146614-0200 | SPACER BUSHING |
260. | [1] | 146611-0120 | BRACKET |
261. | [2] | 146621-4700 | UNION NUT |
264. | [1] | 016500-5010 | O-RING |
270. | [1] | 146615-0221 | TOOTHED GEAR |
270/1. | [1] | 146615-0201 | COUPLING PLATE |
270/2. | [1] | 156211-5400 | TOOTHED GEAR |
270/3. | [6] | 020006-1870 | BLEEDER SCREW M6P1L18 7T |
343. | [1] | 146598-8320 | CAP |
800S. | [1] | 146018-9620 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0700 | PACKING RING |
800S/1/6. | [1] | 146601-0700 | PACKING RING |
804S. | [1] | 146232-0220 | COMPRESSION SPRING |
805S. | [1] | 146574-0320 | PARTS SET |
810S. | [1] | 146600-1120 | REPAIR SET |
821S. | [1] | 146210-5720 | ROLLER SET |
825S. | [1] | 146598-8120 | CAP |
835S. | [1] | 146598-7320 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
837S. | [1] | 146598-7310 | CAP |
903. | [1] | 146620-0120 | CAPSULE |
903/2. | [1] | 146600-1300 | O-RING &13W1.9 |
906. | [1] | 146969-1700 | NAMEPLATE |
Include in #2:
104749-5530
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
9 460 613 367
9460613367
ZEXEL
104749-5530
1047495530
ISUZU
8972207420
8972207420
Zexel num
Bosch num
Firm num
Name
9 460 613 367
8972207420 ISUZU
INJECTION-PUMP ASSEMBLY
C240 * K 11CJ INJECTION PUMP ASSY VE4 VE
C240 * K 11CJ INJECTION PUMP ASSY VE4 VE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113orSAEJ967d
1404 Test oil ISO4113orSAEJ967d
Test oil temperature
degC
45
45
50
Nozzle
105780-0060
Bosch type code
NP-DN0SD1510
Nozzle holder
105780-2150
Opening pressure
MPa
13
13
13.3
Opening pressure
kgf/cm2
133
133
136
Injection pipe
157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450
Inside diameter - outside diameter - length (mm) mm 2-6-450
Joint assembly
157641-4720
Tube assembly
157641-4020
Transfer pump pressure
kPa
20
20
20
Transfer pump pressure
kgf/cm2
0.2
0.2
0.2
Direction of rotation (viewed from drive side)
Left L
Left L
Injection timing adjustment
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
38.3
37.8
38.8
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_02
Pump speed
r/min
600
600
600
Average injection quantity
mm3/st.
37.9
36.4
39.4
Oil temperature
degC
50
48
52
Injection timing adjustment_03
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
38.3
37.3
39.3
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_04
Pump speed
r/min
1250
1250
1250
Average injection quantity
mm3/st.
39
37.4
40.6
Oil temperature
degC
50
48
52
Injection quantity adjustment
Pump speed
r/min
1375
1375
1375
Average injection quantity
mm3/st.
9.7
7.7
11.7
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
50
48
52
Injection quantity adjustment_02
Pump speed
r/min
1425
1425
1425
Average injection quantity
mm3/st.
4
Oil temperature
degC
50
48
52
Injection quantity adjustment_03
Pump speed
r/min
1375
1375
1375
Average injection quantity
mm3/st.
9.7
7.7
11.7
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
50
48
52
Governor adjustment
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
8.3
6.3
10.3
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
48
46
50
Governor adjustment_02
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
8.3
6.3
10.3
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
48
46
50
Timer adjustment
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
48
45
51
Oil temperature
degC
48
46
50
Remarks
Full
Full
Timer adjustment_02
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
48
45
51
Oil temperature
degC
48
46
50
Remarks
Full
Full
Speed control lever angle
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF at idling position
Magnet OFF at idling position
0000000901
Pump speed
r/min
1000
1000
1000
Overflow quantity
cm3/min
420
290
550
Oil temperature
degC
50
48
52
Stop lever angle
Pump speed
r/min
1000
1000
1000
Pressure
kPa
402
382
422
Pressure
kgf/cm2
4.1
3.9
4.3
Basic
*
Oil temperature
degC
50
48
52
Stop lever angle_02
Pump speed
r/min
1000
1000
1000
Pressure
kPa
402
382
422
Pressure
kgf/cm2
4.1
3.9
4.3
Basic
*
Oil temperature
degC
50
48
52
0000001101
Pump speed
r/min
1000
1000
1000
Timer stroke
mm
2.5
2.3
2.7
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
600
600
600
Timer stroke
mm
0.9
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
1000
1000
1000
Timer stroke
mm
2.5
2.3
2.7
Basic
*
Oil temperature
degC
50
48
52
_04
Pump speed
r/min
1250
1250
1250
Timer stroke
mm
3.7
3.3
4.1
Oil temperature
degC
50
48
52
0000001201
Max. applied voltage
V
8
8
8
Test voltage
V
13
12
14
Timing setting
K dimension
mm
3.3
3.2
3.4
KF dimension
mm
5.8
5.7
5.9
MS dimension
mm
2
1.9
2.1
Control lever angle alpha
deg.
25
21
29
Control lever angle beta
deg.
38
33
43
Test data Ex:
0000001801 STARTING I/Q ADJUSTMENT
Starting injection quantity adjustment
Adjust the adjusting bolt A so that the starting injection quantity adjustment is within the standards. Fix using the nut B.
(C) Stop lever
L:Adjustment dimensions
----------
----------
L=2~8.5mm
----------
----------
L=2~8.5mm
