Information injection-pump assembly
BOSCH
F 01G 09W 0G1
f01g09w0g1
ZEXEL
104749-5482
1047495482
ISUZU
8971366832
8971366832

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below
4 Cylinder Diesel VE Injection Pumps Fuel Injector Pump 104649-5471 104749-5482 897136-6832 Compatible For Zexel ISUZU 6HK1 Engine
WEIGONG Made of durable plastic and metal, this fuel pump assembly ensures the service life and reliability || The electric fuel pump has excellent design and stable operation, which reduces the risk of mechanical failure and improves the overall reliability || The simple structure of electric fuel pump makes maintenance more convenient and reduces the maintenance cost of long-term operation || Each fuel pump assembly undergoes rigorous testing to guarantee quality before || 4 Cylinder Diesel VE Injection Pumps Fuel Injector Pump 104649-5471 104749-5482 897136-6832 Compatible For Zexel ISUZU 6HK1 Engine
WEIGONG Made of durable plastic and metal, this fuel pump assembly ensures the service life and reliability || The electric fuel pump has excellent design and stable operation, which reduces the risk of mechanical failure and improves the overall reliability || The simple structure of electric fuel pump makes maintenance more convenient and reduces the maintenance cost of long-term operation || Each fuel pump assembly undergoes rigorous testing to guarantee quality before || 4 Cylinder Diesel VE Injection Pumps Fuel Injector Pump 104649-5471 104749-5482 897136-6832 Compatible For Zexel ISUZU 6HK1 Engine

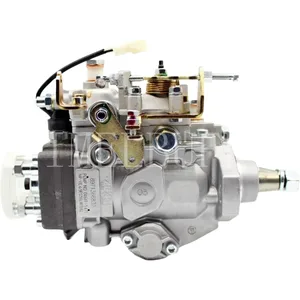

Fuel Injection Pump 8-97136683-2 104749-5482 compatible with Isuzu 4HK1 Zexel Engine
Starhycfa Product name:Fuel Injection Pump || Part Number:8-97136683-2 104749-5482 || APPlication:Compatible with Isuzu 4HK1 Zexel Engine || 1.Please carefully compare the pictures or OE numbers to match your original parts before purchasing the product. || 2.Please make sure that the model number, part number and photo is the same as yours before order. To Avoid placing wrong orders and wasting your precious time.
Starhycfa Product name:Fuel Injection Pump || Part Number:8-97136683-2 104749-5482 || APPlication:Compatible with Isuzu 4HK1 Zexel Engine || 1.Please carefully compare the pictures or OE numbers to match your original parts before purchasing the product. || 2.Please make sure that the model number, part number and photo is the same as yours before order. To Avoid placing wrong orders and wasting your precious time.
High Pressure Fuel Injection Pump Compatible With Zexel 4 Cylinder 104649-5471 104749-5482 897136-6832 Compatible With ISUZU 6HK1 Engine
DUVAROLIN High Pressure Fuel Injection Pump Compatible With Zexel 4 Cylinder 104649-5471 104749-5482 897136-6832 Compatible With ISUZU 6HK1 Engine || 【quality】: Helps To Provide A Stable And Reliable Fuel Supply To Automobile Engines. || 【function 】The Function Is To Suck Fuel From The Fuel Tank, Pressurise It And Deliver It To The Fuel Supply Pipe, And Work With The Fuel Pressure Regulator To Establish A Certain Fuel Pressure. || 【After-sales】We Provide After-sales Support To Ensure OurAre Satisfied And Assured With Every Purchase. || Note :When Replacing A Fuel Pump, Check For Proper Electrical Connections, Pressure, Volume, And Current.Install And Pre-tighten The Bolts On Both Sides So That The Pump Body Plunger Is Perpendicular To The Camshaft, Then Tighten To Secure.
DUVAROLIN High Pressure Fuel Injection Pump Compatible With Zexel 4 Cylinder 104649-5471 104749-5482 897136-6832 Compatible With ISUZU 6HK1 Engine || 【quality】: Helps To Provide A Stable And Reliable Fuel Supply To Automobile Engines. || 【function 】The Function Is To Suck Fuel From The Fuel Tank, Pressurise It And Deliver It To The Fuel Supply Pipe, And Work With The Fuel Pressure Regulator To Establish A Certain Fuel Pressure. || 【After-sales】We Provide After-sales Support To Ensure OurAre Satisfied And Assured With Every Purchase. || Note :When Replacing A Fuel Pump, Check For Proper Electrical Connections, Pressure, Volume, And Current.Install And Pre-tighten The Bolts On Both Sides So That The Pump Body Plunger Is Perpendicular To The Camshaft, Then Tighten To Secure.
Components :
0. | INJECTION-PUMP ASSEMBLY | 104749-5482 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104649-5471 |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105151-1451 |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 11.8(120) |
10. | NOZZLE-HOLDER | 105081-3141 |
11. | NOZZLE | 105000-1650 |
Scheme ###:
1/6. | [1] | 146601-0700 | PACKING RING |
6. | [1] | 146100-0120 | SUPPLY PUMP |
9. | [1] | 146103-0000 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0320 | DRIVE SHAFT |
12/1. | [1] | 146200-0300 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-1720 | ROLLER SET |
24. | [1] | 146303-0100 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0000 | SLOTTED WASHER |
29. | [1] | 146220-0020 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146300-0100 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
33. | [1] | 146603-0700 | SHIM |
34. | [1] | 146302-5400 | COMPRESSION SPRING |
34B. | [1] | 146302-4800 | COMPRESSION SPRING |
35/1. | [0] | 146603-0700 | SHIM D17.5&7.5T0.60 |
35/1. | [0] | 146603-0800 | SHIM D17.5&7.5T0.70 |
35/1. | [0] | 146603-0900 | SHIM D17.5&7.5T0.90 |
35/1. | [0] | 146603-1000 | SHIM D17.5&7.5T1.00 |
35/1. | [0] | 146603-1100 | SHIM D17.5&7.5T1.20 |
35/1. | [0] | 146603-3600 | SHIM D17.5&7.5T2.40 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-0700 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-0100 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM D17&5.2T2.1 |
48/1. | [1] | 146690-5900 | SHIM D17&5.2T2.2 |
48/1. | [1] | 146690-6000 | SHIM D17&5.2T2.3 |
48/1. | [1] | 146690-6100 | SHIM D17&5.2T2.4 |
48/1. | [1] | 146690-6200 | SHIM D17&5.2T2.5 |
48/1. | [1] | 146690-6300 | SHIM D17&5.2T2.6 |
48/1. | [1] | 146690-6400 | SHIM D17&5.2T2.7 |
48/1. | [1] | 146690-6500 | SHIM D17&5.2T2.8 |
48/1. | [1] | 146690-6600 | SHIM D17&5.2T2.9 |
48/1. | [1] | 146690-6700 | SHIM D17&5.2T3.0 |
48/1. | [1] | 146690-6800 | SHIM D17&5.2T3.1 |
48/1. | [1] | 146690-6900 | SHIM D17&5.2T3.2 |
48/1. | [1] | 146690-7000 | SHIM D17&5.2T3.3 |
48/1. | [1] | 146690-7100 | SHIM D17&5.2T3.4 |
48/1. | [1] | 146690-7200 | SHIM D17&5.2T0.4 |
48/1. | [1] | 146690-7300 | SHIM D17&5.2T0.6 |
48/1. | [1] | 146690-7400 | SHIM D17&5.2T0.7 |
48/1. | [1] | 146690-7500 | SHIM D17&5.2T1.9 |
48/1. | [1] | 146690-7800 | SHIM D17&5.2T0.2 |
49. | [2] | 146234-0500 | GUIDE PIN |
50. | [1] | 146401-1920 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET |
55. | [4] | 146430-0320 | DELIVERY-VALVE ASSEMBLY VE4 |
56. | [4] | 146432-0000 | COMPRESSION SPRING |
58. | [4] | 146440-0120 | FITTING |
60. | [4] | 139106-0100 | FLAT-HEAD SCREW |
67. | [1] | 146820-3421 | GOVERNOR COVER |
67/1. | [1] | 146508-6321 | GOVERNOR COVER |
67/2. | [1] | 146515-0320 | CONTROL SHAFT |
67/3. | [1] | 146600-0100 | O-RING |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/5. | [1] | 146535-6000 | CONTROL LEVER |
67/5B. | [1] | 146535-6100 | CONTROL LEVER |
67/6. | [2] | 014110-6440 | LOCKING WASHER D12.2&6.1T1.5 |
67/7. | [1] | 013020-6040 | UNION NUT |
67/8. | [1] | 146515-0120 | LEVER SHAFT |
67/9. | [1] | 146587-0100 | COILED SPRING |
67/10. | [1] | 146600-0200 | O-RING |
67/11. | [1] | 146602-0100 | PLAIN WASHER |
67/12. | [1] | 146540-4200 | CONTROL LEVER |
67/12B. | [1] | 146540-4300 | CONTROL LEVER |
67/13. | [1] | 013020-6040 | UNION NUT |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-2800 | BLEEDER SCREW |
67/16. | [1] | 146526-2800 | BLEEDER SCREW |
67/18. | [1] | 146587-1100 | COILED SPRING |
67/23. | [1] | 146926-7920 | BRACKET |
67/24. | [2] | 139006-4600 | BLEEDER SCREW |
67/25. | [1] | 013020-6040 | UNION NUT |
67/26. | [1] | 146925-3220 | BRACKET |
67/78. | [1] | 146600-4400 | SEAL RING |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-3400 | THREADED PIN L53.00 |
67/201B. | [1] | 146545-3500 | THREADED PIN L55.00 |
67/201C. | [1] | 146545-3600 | THREADED PIN L57.00 |
67/202. | [1] | 139208-0900 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
95. | [1] | 146851-1620 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1.0 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0100 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-2600 | PLAIN WASHER |
115. | [1] | 146976-3800 | SLIDING SLEEVE |
116. | [1] | 146576-0400 | CAP |
117/1. | [1] | 146877-0820 | PLUG L=5.0 |
117/1. | [1] | 146877-0920 | PLUG L=5.1 |
117/1. | [1] | 146877-1020 | PLUG L=5.2 |
117/1. | [1] | 146877-1120 | PLUG L=5.3 |
117/1. | [1] | 146877-1220 | PLUG L=5.4 |
117/1. | [1] | 146877-1320 | PLUG L=5.5 |
117/1. | [1] | 146877-1420 | PLUG L=5.6 |
117/1. | [1] | 146877-1520 | PLUG L=5.7 |
117/1. | [1] | 146877-1620 | PLUG L=5.8 |
117/1. | [1] | 146877-1720 | PLUG L=5.9 |
117/1. | [1] | 146877-1820 | PLUG L=6.0 |
117/1. | [1] | 146877-1920 | PLUG L=6.1 |
117/1. | [1] | 146877-2020 | PLUG L=6.2 |
117/1. | [1] | 146877-2120 | PLUG L=6.3 |
117/1. | [1] | 146877-2220 | PLUG L=6.4 |
117/1. | [1] | 146877-2320 | PLUG L=6.5 |
117/1. | [1] | 146877-2420 | PLUG L=6.6 |
117/1. | [1] | 146877-2520 | PLUG L=6.7 |
117/1. | [1] | 146877-2620 | PLUG L=6.8 |
117/1. | [1] | 146877-2720 | PLUG L=6.9 |
117/1. | [1] | 146877-2820 | PLUG L=7.0 |
117/1. | [1] | 146877-2920 | PLUG L=7.1 |
117/1. | [1] | 146877-3020 | PLUG L=7.2 |
117/1. | [1] | 146877-3120 | PLUG L=7.3 |
117/1. | [1] | 146877-3220 | PLUG L=7.4 |
117/1. | [1] | 146877-3320 | PLUG L=7.5 |
117/1. | [1] | 146877-3420 | PLUG L=7.6 |
117/1. | [1] | 146877-3520 | PLUG L=7.7 |
117/1. | [1] | 146877-3620 | PLUG L=7.8 |
117/1. | [1] | 146877-3720 | PLUG L=7.9 |
117/1. | [1] | 146877-3820 | PLUG L=8.0 |
117/1. | [1] | 146877-3920 | PLUG L=8.1 |
117/1. | [1] | 146877-4020 | PLUG L=8.2 |
117/1. | [1] | 146877-4120 | PLUG L=8.3 |
117/1. | [1] | 146877-4220 | PLUG L=8.4 |
120. | [1] | 146579-6920 | RETAINING PIN |
122. | [1] | 146580-0100 | GOVERNOR SPRING |
123. | [4] | 139106-0200 | FLAT-HEAD SCREW |
130. | [1] | 146421-0020 | CAPSULE |
130/2. | [1] | 026508-1140 | GASKET D11.4&8.2T1.0 |
130/3. | [1] | 146422-0000 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0220 | CONTROL VALVE STAMP 02 |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-0120 | OVER FLOW VALVE |
137. | [2] | 139512-0500 | GASKET |
138. | [1] | 146610-7320 | INLET UNION |
200. | [1] | 146206-0100 | COILED SPRING |
205. | [1] | 029470-4030 | WOODRUFF KEY |
206. | [1] | 013121-4140 | UNION NUT |
207. | [1] | 029321-4050 | LOCKING WASHER |
240. | [1] | 146650-1220 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146658-7320 | WIRE |
243. | [1] | 146621-4901 | UNION NUT |
245. | [3] | 139512-0500 | GASKET |
246. | [1] | 146125-0700 | EYE BOLT |
247. | [1] | 146610-5720 | INLET UNION |
248. | [1] | 146614-0200 | SPACER BUSHING |
260. | [1] | 146611-0120 | BRACKET |
261. | [2] | 146621-4700 | UNION NUT |
264. | [1] | 016500-5010 | O-RING |
270. | [1] | 146615-0221 | TOOTHED GEAR |
270/1. | [1] | 146615-0201 | COUPLING PLATE |
270/2. | [1] | 156211-5400 | TOOTHED GEAR |
270/3. | [6] | 020006-1870 | BLEEDER SCREW |
800S. | [1] | 146020-2720 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0700 | PACKING RING |
804S. | [1] | 146232-0220 | COMPRESSION SPRING |
805S. | [1] | 146574-0320 | PARTS SET |
810S. | [1] | 146600-1120 | REPAIR SET |
821S. | [1] | 146210-5720 | ROLLER SET |
835S. | [1] | 146598-1000 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
906. | [1] | 146979-8000 | NAMEPLATE |
Include in #2:
104749-5482
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
F 01G 09W 0G1
f01g09w0g1
ZEXEL
104749-5482
1047495482
ISUZU
8971366832
8971366832
Zexel num
Bosch num
Firm num
Name
104749-5482
F 01G 09W 0G1
8971366832 ISUZU
INJECTION-PUMP ASSEMBLY
C240
C240
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113orSAEJ967d
1404 Test oil ISO4113orSAEJ967d
Test oil temperature
degC
45
45
50
Nozzle
105780-0060
Bosch type code
NP-DN0SD1510
Nozzle holder
105780-2150
Opening pressure
MPa
13
13
13.3
Opening pressure
kgf/cm2
133
133
136
Injection pipe
157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450
Inside diameter - outside diameter - length (mm) mm 2-6-450
Joint assembly
157641-4720
Tube assembly
157641-4020
Transfer pump pressure
kPa
20
20
20
Transfer pump pressure
kgf/cm2
0.2
0.2
0.2
Direction of rotation (viewed from drive side)
Left L
Left L
Injection timing adjustment
Pump speed
r/min
1250
1250
1250
Average injection quantity
mm3/st.
35.9
35.4
36.4
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_02
Pump speed
r/min
600
600
600
Average injection quantity
mm3/st.
34.6
32.1
37.1
Oil temperature
degC
50
48
52
Injection timing adjustment_03
Pump speed
r/min
900
900
900
Average injection quantity
mm3/st.
34.9
32.9
36.9
Oil temperature
degC
50
48
52
Injection timing adjustment_04
Pump speed
r/min
1250
1250
1250
Average injection quantity
mm3/st.
35.9
34.9
36.9
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
50
48
52
Injection quantity adjustment
Pump speed
r/min
1375
1375
1375
Average injection quantity
mm3/st.
9.7
7.7
11.7
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
50
48
52
Injection quantity adjustment_02
Pump speed
r/min
1425
1425
1425
Average injection quantity
mm3/st.
4
Oil temperature
degC
50
48
52
Injection quantity adjustment_03
Pump speed
r/min
1375
1375
1375
Average injection quantity
mm3/st.
9.7
7.7
11.7
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
50
48
52
Governor adjustment
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
8.3
6.3
10.3
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
48
46
50
Governor adjustment_02
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
8.3
6.3
10.3
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
48
46
50
Timer adjustment
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
48
45
51
Basic
*
Oil temperature
degC
48
46
50
Remarks
Full
Full
Timer adjustment_02
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
48
45
51
Oil temperature
degC
48
46
50
Remarks
Full
Full
Speed control lever angle
Pump speed
r/min
350
350
350
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF at idling position
Magnet OFF at idling position
0000000901
Pump speed
r/min
1000
1000
1000
Overflow quantity
cm3/min
400
270
530
Oil temperature
degC
50
48
52
Stop lever angle
Pump speed
r/min
1000
1000
1000
Pressure
kPa
402
382
422
Pressure
kgf/cm2
4.1
3.9
4.3
Basic
*
Oil temperature
degC
50
48
52
Stop lever angle_02
Pump speed
r/min
600
600
600
Pressure
kPa
304
275
333
Pressure
kgf/cm2
3.1
2.8
3.4
Oil temperature
degC
50
48
52
Stop lever angle_03
Pump speed
r/min
1000
1000
1000
Pressure
kPa
402
382
422
Pressure
kgf/cm2
4.1
3.9
4.3
Basic
*
Oil temperature
degC
50
48
52
Stop lever angle_04
Pump speed
r/min
1250
1250
1250
Pressure
kPa
461
432
490
Pressure
kgf/cm2
4.7
4.4
5
Oil temperature
degC
50
48
52
0000001101
Pump speed
r/min
1000
1000
1000
Timer stroke
mm
2.5
2.3
2.7
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
600
600
600
Timer stroke
mm
0.9
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
1000
1000
1000
Timer stroke
mm
2.5
2.3
2.7
Basic
*
Oil temperature
degC
50
48
52
_04
Pump speed
r/min
1250
1250
1250
Timer stroke
mm
3.7
3.3
4.1
Oil temperature
degC
50
48
52
0000001201
Max. applied voltage
V
8
8
8
Test voltage
V
13
12
14
Timing setting
K dimension
mm
3.3
3.2
3.4
KF dimension
mm
5.8
5.7
5.9
MS dimension
mm
2
1.9
2.1
Control lever angle alpha
deg.
25
21
29
Control lever angle beta
deg.
38
33
43
Test data Ex:
0000001801 STARTING I/Q ADJUSTMENT

Starting injection quantity adjustment
Adjust the adjusting bolt A so that the starting injection quantity adjustment is within the standards. Fix using the nut B.
(A) Adjusting bolt
(B) Nut (SW10, Torque T)
(C) Stop lever
L:Adjustment dimensions
----------
L=2~8.5mm T=6~9N-m(0.6~0.9kgf-m)
----------
L=2~8.5mm
----------
L=2~8.5mm T=6~9N-m(0.6~0.9kgf-m)
----------
L=2~8.5mm
Information:
03Jul2007
U-305
A-248
D-257
O-277
Parts stock action only
PRODUCT IMPROVEMENT PROGRAM FOR INSPECTING AND REMOVING 8N7005 INJECTORS FROM DEALER PARTS STOCK THAT ARE NOT PACKAGED IN THE PROPER CATERPILLAR PACKAGE AND CATERPILLAR LABEL
1254 7750 1252 PI70234
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
31Oct2007
PROBLEM
Some 8N7005 Fuel Valve Nozzles have been shipped in incorrect Packaging. The package does not have the standard Caterpillar label. The Parts do not have the Caterpillar Logo.
ACTION REQUIRED
Inspect 8N7005 Fuel Valve Nozzles in inventory. Confirm that the injectors are packaged in Caterpillar packaging and Caterpillar label with Caterpillar Logo on the parts.
Image 1 shows the proper packaging and branding on the right side and the improper packaging on the left.
Image 2 shows the proper Caterpillar Logo and the left side shows the nozzles with the incorrect packaging and other identifying marks.
SERVICE CLAIM ALLOWANCES
Submit one claim for all parts removed from dealer parts stock.
PARTS DISPOSITION
Return parts to address below to the attn: Clark Hopkins
For NACD
Caterpillar Inc.
Attn: Supplier Recovery
Service Claims Room
8201 N. University
Peoria, IL 61615
Have questions with 104749-5482?
Group cross 104749-5482 ZEXEL
Isuzu
Isuzu
104749-5482
F 01G 09W 0G1
8971366832
INJECTION-PUMP ASSEMBLY
C240
C240
