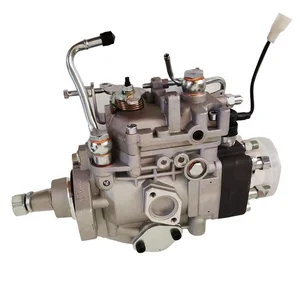

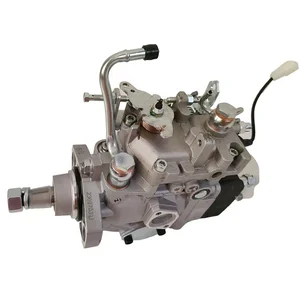

104749-5480 ZEXEL 9 460 610 746 BOSCH INJECTION-PUMP ASSEMBLY 9460610746 1047495480 8971366830

Information injection-pump assembly

BOSCH 9 460 610 746 9460610746

ZEXEL 104749-5480 1047495480

ISUZU 8971366830 8971366830

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy INJECTION-PUMP ASSEMBLY 104749-5480 zexel genuine, new aftermarket engine parts with delivery

Components :

0.	INJECTION-PUMP ASSEMBLY	104749-5480
1.	_
2.	FUEL INJECTION PUMP	104649-5470
3.	NUMBER PLATE	146966-8900
4.	_
5.	CAPSULE	146620-0120
6.	ADJUSTING DEVICE
7.	NOZZLE AND HOLDER ASSY	105151-1451
8.	Nozzle and Holder	5-15300-039-1
9.	Open Pre:MPa(Kqf/cm2)	11.8{120}
10.	NOZZLE-HOLDER	105081-3141
11.	NOZZLE	105000-1650

Scheme ###:

1/6.	[1]	146601-0700	PACKING RING
6.	[1]	146100-0120	SUPPLY PUMP
9.	[1]	146103-0000	COVER
10.	[2]	139104-0000	FLAT-HEAD SCREW
12.	[1]	146200-0320	DRIVE SHAFT
12/1.	[1]	146200-0300	DRIVE SHAFT
12/2.	[1]	146201-0000	WOODRUFF KEY
12/3.	[2]	146202-0100	DAMPER
12/4.	[1]	146203-0000	TOOTHED GEAR
17.	[1]	146204-0000	PLAIN WASHER
20.	[1]	146210-1720	ROLLER SET
24.	[1]	146303-0000	BEARING PIN
25.	[1]	146304-0000	BEARING PIN
26.	[1]	146305-0000	CLAMPING BAND
27.	[1]	146205-0000	SLOTTED WASHER
29.	[1]	146220-0020	CAM PLATE
30.	[1]	146600-0800	O-RING
31.	[1]	146300-0100	PUMP PLUNGER
32.	[1]	146301-0000	SLIDING PIECE
33.	[1]	146603-0700	SHIM
34.	[1]	146302-5400	COMPRESSION SPRING
34B.	[1]	146302-4800	COMPRESSION SPRING
35/1.	[0]	146603-0700	SHIM D17.5&7.5T0.60
35/1.	[0]	146603-0800	SHIM D17.5&7.5T0.70
35/1.	[0]	146603-0900	SHIM D17.5&7.5T0.90
35/1.	[0]	146603-1000	SHIM D17.5&7.5T1.00
35/1.	[0]	146603-1100	SHIM D17.5&7.5T1.20
35/1.	[0]	146603-3600	SHIM D17.5&7.5T2.40
36.	[1]	146600-0800	O-RING
37.	[1]	146310-0700	COVER
38.	[2]	146620-5000	BLEEDER SCREW
39.	[1]	146310-0100	COVER
40.	[2]	146620-5000	BLEEDER SCREW
43.	[1]	146230-0000	SHIM
44.	[1]	146230-0100	PLAIN WASHER
45.	[1]	146231-0001	SLOTTED WASHER
47.	[2]	146233-0000	SLOTTED WASHER
48/1.	[2]	146603-0000	SHIM D17.0&5.2T0.50
48/1.	[2]	146603-0100	SHIM D17.0&5.2T0.80
48/1.	[2]	146603-0200	SHIM D17.0&5.2T1.00
48/1.	[2]	146603-0300	SHIM D17.0&5.2T1.20
48/1.	[2]	146603-0400	SHIM D17.0&5.2T1.50
48/1.	[2]	146603-0500	SHIM D17.0&5.2T1.80
48/1.	[2]	146603-0600	SHIM D17.0&5.2T2.00
48/1.	[2]	146690-1400	SHIM D17&5.2T0.9
48/1.	[2]	146690-1500	SHIM D17&5.2T1.1
48/1.	[2]	146690-1600	SHIM D17&5.2T1.3
48/1.	[2]	146690-1700	SHIM D17&5.2T1.4
48/1.	[2]	146690-1800	SHIM D17&5.2T1.6
48/1.	[2]	146690-1900	SHIM D17&5.2T1.7
48/1.	[2]	146690-5800	SHIM
48/1.	[2]	146690-5900	SHIM
48/1.	[2]	146690-6000	SHIM
48/1.	[2]	146690-6100	SHIM
48/1.	[2]	146690-6200	SHIM
48/1.	[2]	146690-6300	SHIM
48/1.	[2]	146690-6400	SHIM
48/1.	[2]	146690-6500	SHIM
48/1.	[2]	146690-6600	SHIM
48/1.	[2]	146690-6700	SHIM
48/1.	[2]	146690-6800	SHIM
48/1.	[2]	146690-6900	SHIM
48/1.	[2]	146690-7000	SHIM
48/1.	[2]	146690-7100	SHIM
48/1.	[2]	146690-7200	SHIM
48/1.	[2]	146690-7300	SHIM
48/1.	[2]	146690-7400	SHIM
48/1.	[2]	146690-7500	SHIM
48/1.	[2]	146690-7800	SHIM
49.	[2]	146234-0020	GUIDE PIN
50.	[1]	146401-1920	HYDRAULIC HEAD
50.	[1]	146401-1920	HYDRAULIC HEAD
50.	[1]	146401-1920	HYDRAULIC HEAD
51.	[1]	146600-0000	O-RING
52/1.	[1]	146420-0000	SHIM D9.5&3.0T1.90
52/1.	[1]	146420-0100	SHIM D9.5&3.0T1.92
52/1.	[1]	146420-0200	SHIM D9.5&3.0T1.94
52/1.	[1]	146420-0300	SHIM D9.5&3.0T1.96
52/1.	[1]	146420-0400	SHIM D9.5&3.0T1.98
52/1.	[1]	146420-0500	SHIM D9.5&3.0T2.00
52/1.	[1]	146420-0600	SHIM D9.5&3.0T2.02
52/1.	[1]	146420-0700	SHIM D9.5&3.0T2.04
52/1.	[1]	146420-0800	SHIM D9.5&3.0T2.06
52/1.	[1]	146420-0900	SHIM D9.5&3.0T2.08
52/1.	[1]	146420-1000	SHIM D9.5&3.0T2.10
52/1.	[1]	146420-1100	SHIM D9.5&3.0T2.12
52/1.	[1]	146420-1200	SHIM D9.5&3.0T2.14
52/1.	[1]	146420-1300	SHIM D9.5&3.0T2.16
52/1.	[1]	146420-1400	SHIM D9.5&3.0T2.18
52/1.	[1]	146420-1500	SHIM D9.5&3.0T2.20
52/1.	[1]	146420-1600	SHIM D9.5&3.0T2.22
52/1.	[1]	146420-1700	SHIM D9.5&3.0T2.24
52/1.	[1]	146420-1800	SHIM D9.5&3.0T2.26
52/1.	[1]	146420-1900	SHIM D9.5&3.0T2.28
52/1.	[1]	146420-2000	SHIM D9.5&3.0T2.30
52/1.	[1]	146420-2100	SHIM D9.5&3.0T2.32
52/1.	[1]	146420-2200	SHIM D9.5&3.0T2.34
52/1.	[1]	146420-2300	SHIM D9.5&3.0T2.36
52/1.	[1]	146420-2400	SHIM D9.5&3.0T2.38
52/1.	[1]	146420-2500	SHIM D9.5&3.0T2.40
52/1.	[1]	146420-2600	SHIM D9.5&3.0T2.42
52/1.	[1]	146420-2700	SHIM D9.5&3.0T2.44
52/1.	[1]	146420-2800	SHIM D9.5&3.0T2.46
52/1.	[1]	146420-2900	SHIM D9.5&3.0T2.48
52/1.	[1]	146420-3000	SHIM D9.5&3.0T2.50
52/1.	[1]	146420-3100	SHIM D9.5&3.0T2.52
52/1.	[1]	146420-3200	SHIM D9.5&3.0T2.54
52/1.	[1]	146420-3300	SHIM D9.5&3.0T2.56
52/1.	[1]	146420-3400	SHIM D9.5&3.0T2.58
52/1.	[1]	146420-3500	SHIM D9.5&3.0T2.60
52/1.	[1]	146420-3600	SHIM D9.5&3.0T2.62
52/1.	[1]	146420-3700	SHIM D9.5&3.0T2.64
52/1.	[1]	146420-3800	SHIM D9.5&3.0T2.66
52/1.	[1]	146420-3900	SHIM D9.5&3.0T2.68
52/1.	[1]	146420-4000	SHIM D9.5&3.0T2.70
52/1.	[1]	146420-4100	SHIM D9.5&3.0T2.72
52/1.	[1]	146420-4200	SHIM D9.5&3.0T2.74
52/1.	[1]	146420-4300	SHIM D9.5&3.0T2.76
52/1.	[1]	146420-4400	SHIM D9.5&3.0T2.78
52/1.	[1]	146420-4500	SHIM D9.5&3.0T2.80
52/1.	[1]	146420-4600	SHIM D9.5&3.0T2.82
52/1.	[1]	146420-4700	SHIM D9.5&3.0T2.84
52/1.	[1]	146420-4800	SHIM D9.5&3.0T2.86
52/1.	[1]	146420-4900	SHIM D9.5&3.0T2.88
52/1.	[1]	146420-5000	SHIM D9.5&3.0T2.90
52/1.	[1]	146420-5100	SHIM D9.5&3.0T1.74
52/1.	[1]	146420-5200	SHIM D9.5&3.0T1.76
52/1.	[1]	146420-5300	SHIM D9.5&3.0T1.78
52/1.	[1]	146420-5400	SHIM D9.5&3.0T1.80
52/1.	[1]	146420-5500	SHIM D9.5&3.0T1.82
52/1.	[1]	146420-5600	SHIM D9.5&3.0T1.84
52/1.	[1]	146420-5700	SHIM D9.5&3.0T1.86
52/1.	[1]	146420-5800	SHIM D9.5&3.0T1.88
54.	[4]	146433-0100	GASKET
55.	[4]	146430-0320	DELIVERY-VALVE ASSEMBLY VE4
56.	[4]	146432-0000	COMPRESSION SPRING
58.	[4]	146440-0120	FITTING
60.	[4]	139106-0100	FLAT-HEAD SCREW
67.	[1]	146820-3421	GOVERNOR COVER
67/1.	[1]	146508-6321	GOVERNOR COVER
67/2.	[1]	146515-0320	CONTROL SHAFT
67/3.	[1]	146600-0100	O-RING
67/4.	[2]	139310-0200	PLAIN WASHER
67/4.	[2]	139310-0200	PLAIN WASHER
67/5.	[1]	146535-6000	CONTROL LEVER
67/5B.	[1]	146535-6100	CONTROL LEVER
67/6.	[2]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
67/6.	[2]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
67/7.	[1]	013020-6040	UNION NUT
67/8.	[1]	146515-0120	LEVER SHAFT
67/9.	[1]	146587-0100	COILED SPRING
67/10.	[1]	146600-0200	O-RING
67/11.	[1]	146602-0100	PLAIN WASHER
67/12.	[1]	146540-4200	CONTROL LEVER
67/12B.	[1]	146540-4300	CONTROL LEVER
67/13.	[1]	013020-6040	UNION NUT
67/14.	[1]	146621-1700	UNION NUT
67/15.	[1]	146526-2800	BLEEDER SCREW
67/16.	[1]	146526-2800	BLEEDER SCREW
67/18.	[1]	146587-1100	COILED SPRING
67/23.	[1]	146926-7920	BRACKET
67/24.	[2]	139006-4600	BLEEDER SCREW
67/25.	[1]	013020-6040	UNION NUT
67/26.	[1]	146925-3220	BRACKET
67/78.	[1]	146600-4400	SEAL RING
67/200.	[1]	139308-0300	PLAIN WASHER
67/201.	[1]	146545-3400	THREADED PIN L53.00
67/201B.	[1]	146545-3500	THREADED PIN L55.00
67/201C.	[1]	146545-3600	THREADED PIN L57.00
67/202.	[1]	139208-0900	UNION NUT
67/203.	[1]	146600-1200	O-RING
95.	[1]	146851-1620	FULCRUM LEVER
104.	[2]	146568-0000	SLOTTED SPRING PIN
105.	[2]	026508-1140	GASKET D11.4&8.2T1.0
106.	[2]	146588-0500	COILED SPRING
107.	[1]	146569-0300	UNION NUT
108.	[1]	146570-0100	GOVERNOR SHAFT
109.	[1]	146600-0400	O-RING
110/1.	[1]	146571-0000	SHIM D20.2&8.3T1.05
110/1.	[1]	146571-0100	SHIM D20.2&8.3T1.25
110/1.	[1]	146571-0200	SHIM D20.2&8.3T1.45
110/1.	[1]	146571-0300	SHIM D20.2&8.3T1.65
110/1.	[1]	146571-0400	SHIM D20.2&8.3T1.85
110/1.	[1]	146571-0500	SHIM D20.2&8.3T1.15
110/1.	[1]	146571-0600	SHIM D20.2&8.3T1.35
110/1.	[1]	146571-0700	SHIM D20.2&8.3T1.55
110/1.	[1]	146571-0800	SHIM D20.2&8.3T1.75
111.	[1]	146602-0600	PLAIN WASHER
112.	[1]	146572-0020	FLYWEIGHT ASSEMBLY
114.	[1]	146602-2600	PLAIN WASHER
115.	[1]	146975-3600	SLIDING SLEEVE
116.	[1]	146576-0400	CAP
117/1.	[1]	146877-0820	PLUG
117/1.	[1]	146877-0920	PLUG
117/1.	[1]	146877-1020	PLUG
117/1.	[1]	146877-1120	PLUG
117/1.	[1]	146877-1220	PLUG
117/1.	[1]	146877-1320	PLUG
117/1.	[1]	146877-1420	PLUG
117/1.	[1]	146877-1520	PLUG
117/1.	[1]	146877-1620	PLUG
117/1.	[1]	146877-1720	PLUG
117/1.	[1]	146877-1820	PLUG
117/1.	[1]	146877-1920	PLUG
117/1.	[1]	146877-2020	PLUG
117/1.	[1]	146877-2120	PLUG
117/1.	[1]	146877-2220	PLUG
117/1.	[1]	146877-2320	PLUG
117/1.	[1]	146877-2420	PLUG
117/1.	[1]	146877-2520	PLUG
117/1.	[1]	146877-2620	PLUG
117/1.	[1]	146877-2720	PLUG
117/1.	[1]	146877-2820	PLUG
117/1.	[1]	146877-2920	PLUG
117/1.	[1]	146877-3020	PLUG
117/1.	[1]	146877-3120	PLUG
117/1.	[1]	146877-3220	PLUG
117/1.	[1]	146877-3320	PLUG
117/1.	[1]	146877-3420	PLUG
117/1.	[1]	146877-3520	PLUG
117/1.	[1]	146877-3620	PLUG
117/1.	[1]	146877-3720	PLUG
117/1.	[1]	146877-3820	PLUG
117/1.	[1]	146877-3920	PLUG
117/1.	[1]	146877-4020	PLUG
117/1.	[1]	146877-4120	PLUG
117/1.	[1]	146877-4220	PLUG
120.	[1]	146579-6920	RETAINING PIN
122.	[1]	146580-0100	GOVERNOR SPRING
123.	[4]	139106-0200	FLAT-HEAD SCREW
130.	[1]	146421-0020	CAPSULE
130/2.	[1]	026508-1140	GASKET D11.4&8.2T1.0
130/3.	[1]	146422-0000	BLEEDER SCREW
130/4.	[1]	146600-0500	O-RING
133.	[1]	146600-0600	O-RING
134.	[1]	146600-0700	O-RING
135.	[1]	146110-0220	CONTROL VALVE STAMP 02
135/5.	[1]	146114-0000	SPRING WASHER
136.	[1]	146120-0120	OVER FLOW VALVE
137.	[2]	139512-0500	GASKET
138.	[1]	146610-7320	INLET UNION
200.	[1]	146206-0100	COILED SPRING
205.	[1]	025804-1610	WOODRUFF KEY
206.	[1]	013121-4140	UNION NUT
207.	[1]	029321-4050	LOCKING WASHER
240.	[1]	146650-1220	PULLING ELECTROMAGNET
240/8.	[1]	146600-1700	O-RING
242.	[1]	146658-7320	WIRE
243.	[1]	146621-1000	UNION NUT
245.	[3]	139512-0500	GASKET
246.	[1]	146125-0000	EYE BOLT
247.	[1]	146610-5720	INLET UNION
248.	[1]	146614-0200	SPACER BUSHING
260.	[1]	146611-0120	BRACKET
261.	[2]	146621-4700	UNION NUT
264.	[1]	016500-5010	O-RING
270.	[1]	146615-0221	TOOTHED GEAR
270/1.	[1]	146615-0201	COUPLING PLATE
270/2.	[1]	156211-5400	TOOTHED GEAR
270/3.	[6]	020006-1870	BLEEDER SCREW
800S.	[1]	146019-5620	PUMP HOUSING
800S/1/6.	[1]	146601-0700	PACKING RING
804S.	[1]	146232-0220	COMPRESSION SPRING
805S.	[1]	146574-0320	PARTS SET
810S.	[1]	146600-1120	REPAIR SET
821S.	[1]	146210-5720	ROLLER SET
835S.	[1]	146598-1000	CAP
836S/1.	[1]	146598-0600	CAP L18
836S/1.	[1]	146598-0700	CAP L21
836S/1.	[1]	146598-0800	CAP L24
836S/1.	[1]	146598-0900	CAP L27
903.	[1]	146620-0120	CAPSULE
903/2.	[1]	146600-1300	O-RING
906.	[1]	146966-8900	NAMEPLATE

Include in #2:

104749-5480 as INJECTION-PUMP ASSEMBLY

Cross reference number

Zexel num

Bosch num

Firm num

Name

104749-5480
104749-5481

9 460 610 746

8971366830 ISUZU

INJECTION-PUMP ASSEMBLY
C240 * K 11CJ VE4 VE

Information:

Fig. 32-In-Circuit Negative Rectifier Diode Test PointsTo check negative diode assembly, connect tester to diode plate stud (1, Fig. 32) and to diode lead (2). Check remaining diodes (3 and 4) by the same method.
Fig. 33-In-Circuit Positive Rectifier Diode Test PointsTo check positive diode assembly, connect tester to output terminal (1, Fig. 33) and to diode lead (2). Check remaining diodes (3 and 4) by the same method.In-Circuit Rectifier Diode Test With Test Light
IMPORTANT: Do not use a 120-volt test lamp. Use a 12-volt DC test lamp only; otherwise diodes will be damaged.
Fig. 34-In-Circuit Negative Rectifier Diode Test PointsTo check negative diode assembly, connect test lamp probes to diode plate stud (1, Fig. 34) and to diode lead (2). Reverse test lamp probes. Test lamp should light in one direction only.Recheck diodes individually after disassembly to determine which diode is shorted if test lamp lights in both directions.
Fig. 35-In-Circuit Positive Rectified Diode Test PointsTo check positive diode assembly, connect test lamp probes to output terminal (1, Fig. 35) and to diode lead (2). Reverse test lamp probes. Test lamp should light in one direction only.Recheck diodes individually after disassembly to determine which diode is shorted if test lamp lights in both directions.Field Leakage (Short) Test
Remove the regulator and brush assembly.
Fig. 36-Field Leakage Test PointsConnect ohmmeter or test lamp (12 volt or 120 volt may be used) test probes to one of the slip rings (1, Fig. 36) and to the ground terminal (2).Ohmmeter resistance should be infinite (test lamp should not light).Repeat test after rotor has been removed to ascertain leakage or short. Connect test probes to one of the slip rings and to rotor shaft.In-Circuit Stator Leakage (Short) Test
IMPORTANT: Do not use a 120-volt test lamp. Use a 12-volt DC test lamp only, otherwise diodes will be damaged.
Fig. 37-In-Circuit Stator Leakage Test PointsTo check stator leakage, connect test lamp probes to diode plate (1, Fig. 37) and to diode lead 2. Reverse test lamp probes. Test lamp should light in one direction only.Repeat test after stator has been removed if test light lights in both directions.Out-of-Circuit Stator Leakage (Short) Test
Remove rectifier diode plates and stator as an assembly.
Fig. 38-Out-of-Circuit Stator Leakage Test PointsConnect ohmmeter or test lamp (12 volt only) probes to a diode lead (1, Fig. 38) and to the stator (2).Resistance reading should be infinite (test lamp should not light).Stator
Disconnect the stator leads from the diode leads.
Fig. 39-Grounded Stator Winding Test PointsCheck for a grounded winding by connecting ohmmeter probes to one stator lead (1, Fig. 39) and to the stator frame (2). The ohmmeter reading should be infinite.
Fig. 40-Shorted Stator Winding Test PointsUsing a sensitive ohmmeter which has been carefully zeroed, connect probes to lead (1, Fig. 40) and to lead (2). Resistance should be 0.4 ohm. If the reading is infinite replace stator.With the ohmmeter probes on (1) and (2) touch leads (3) and (4) together. Resistance should be 0 ohm. If resistance is not 0 ohm, replace stator.Repeat test on leads (1)
