Information injection-pump assembly
BOSCH
9 460 614 125
9460614125
ZEXEL
104746-6442
1047466442
ISUZU
8971881872
8971881872
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below
104646-6442 104746-6442 NP-VE4/11F1900LNP2075 8971881872 Diesel Fuel Injection Pump Compatible With ISUZU 4JB1-T
LXXMZJT Quiet performance: EFI pumps are designed to reduce noise and vibration during operation and improve driving comfort || Easy maintenance: Fuel supply pumps are usually designed with easy installation and maintenance in mind, reducing operating costs || Strong adaptability: the fuel pump can adapt to different types of fuel, including gasoline, diesel, etc., to meet the needs of a variety of models || Strong fuel supply: The high pressure fuel pump can ensure that the fuel can be transported to the engine at sufficient pressure to improve the fuel combustion efficiency || 104646-6442 104746-6442 NP-VE4/11F1900LNP2075 8971881872 Diesel Fuel Injection Pump Compatible With ISUZU 4JB1-T
LXXMZJT Quiet performance: EFI pumps are designed to reduce noise and vibration during operation and improve driving comfort || Easy maintenance: Fuel supply pumps are usually designed with easy installation and maintenance in mind, reducing operating costs || Strong adaptability: the fuel pump can adapt to different types of fuel, including gasoline, diesel, etc., to meet the needs of a variety of models || Strong fuel supply: The high pressure fuel pump can ensure that the fuel can be transported to the engine at sufficient pressure to improve the fuel combustion efficiency || 104646-6442 104746-6442 NP-VE4/11F1900LNP2075 8971881872 Diesel Fuel Injection Pump Compatible With ISUZU 4JB1-T
104646-6442 104746-6442 NP-VE4/11F1900LNP2075 8971881872 Diesel Fuel Injection Pump Compatible For ISUZU 4JB1-T
DFGDSFSD A fuel pump is a device used to transport fuel from a fuel tank to an engine combustion chamber. || The fuel pump pumps the fuel from the fuel tank and delivers it to the engine to ensure that the engine has enough fuel supply, so as to run smoothly. || By effectively providing fuel to the engine, the fuel pump can improve the performance and driving experience of the car, such as faster acceleration response and more stable power output. || The fuel pump ensures that the fuel enters the engine combustion chamber with proper pressure and flow, which helps to maintain the normal combustion process, improve engine efficiency and reduce pollutant emissions. || 104646-6442 104746-6442 NP-VE4/11F1900LNP2075 8971881872 Diesel Fuel Injection Pump Compatible For ISUZU 4JB1-T
DFGDSFSD A fuel pump is a device used to transport fuel from a fuel tank to an engine combustion chamber. || The fuel pump pumps the fuel from the fuel tank and delivers it to the engine to ensure that the engine has enough fuel supply, so as to run smoothly. || By effectively providing fuel to the engine, the fuel pump can improve the performance and driving experience of the car, such as faster acceleration response and more stable power output. || The fuel pump ensures that the fuel enters the engine combustion chamber with proper pressure and flow, which helps to maintain the normal combustion process, improve engine efficiency and reduce pollutant emissions. || 104646-6442 104746-6442 NP-VE4/11F1900LNP2075 8971881872 Diesel Fuel Injection Pump Compatible For ISUZU 4JB1-T
104646-6442 104746-6442 NP-VE4/11F1900LNP2075 8971881872 Diesel Fuel Injection Pump Compatible For ISUZU 4JB1-T
DFGDSFSD A fuel pump is a device used to transport fuel from a fuel tank to an engine combustion chamber. || The fuel pump pumps the fuel from the fuel tank and delivers it to the engine to ensure that the engine has enough fuel supply, so as to run smoothly. || By effectively providing fuel to the engine, the fuel pump can improve the performance and driving experience of the car, such as faster acceleration response and more stable power output. || The fuel pump ensures that the fuel enters the engine combustion chamber with proper pressure and flow, which helps to maintain the normal combustion process, improve engine efficiency and reduce pollutant emissions. || 104646-6442 104746-6442 NP-VE4/11F1900LNP2075 8971881872 Diesel Fuel Injection Pump Compatible For ISUZU 4JB1-T
DFGDSFSD A fuel pump is a device used to transport fuel from a fuel tank to an engine combustion chamber. || The fuel pump pumps the fuel from the fuel tank and delivers it to the engine to ensure that the engine has enough fuel supply, so as to run smoothly. || By effectively providing fuel to the engine, the fuel pump can improve the performance and driving experience of the car, such as faster acceleration response and more stable power output. || The fuel pump ensures that the fuel enters the engine combustion chamber with proper pressure and flow, which helps to maintain the normal combustion process, improve engine efficiency and reduce pollutant emissions. || 104646-6442 104746-6442 NP-VE4/11F1900LNP2075 8971881872 Diesel Fuel Injection Pump Compatible For ISUZU 4JB1-T
Components :
0. | INJECTION-PUMP ASSEMBLY | 104746-6442 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104646-6442 |
3. | NUMBER PLATE | 146978-7800 |
4. | _ | 146672-1720 |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | 593176-1521 |
7. | NOZZLE AND HOLDER ASSY | 105118-6401 |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 21.6{220} |
10. | NOZZLE-HOLDER | 105048-3251 |
11. | NOZZLE | 105017-9030 |
Scheme ###:
1/6. | [1] | 146601-0700 | PACKING RING |
6. | [1] | 146100-0120 | SUPPLY PUMP |
9. | [1] | 146103-0000 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0820 | DRIVE SHAFT |
12/1. | [1] | 146200-0800 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-1720 | ROLLER SET |
24. | [1] | 146303-0000 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0100 | SLOTTED WASHER |
29. | [1] | 146220-3520 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146300-2000 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
33. | [1] | 146603-0700 | SHIM D17.5&7.5T0.60 |
34. | [1] | 146302-8100 | COMPRESSION SPRING |
34B. | [1] | 146302-9900 | COMPRESSION SPRING |
34C. | [1] | 146302-2600 | COMPRESSION SPRING K=2.05KG/MM |
35/1. | [0] | 146603-0700 | SHIM D17.5&7.5T0.60 |
35/1. | [0] | 146603-0800 | SHIM D17.5&7.5T0.70 |
35/1. | [0] | 146603-0900 | SHIM D17.5&7.5T0.90 |
35/1. | [0] | 146603-1000 | SHIM D17.5&7.5T1.00 |
35/1. | [0] | 146603-1100 | SHIM D17.5&7.5T1.20 |
35/1. | [0] | 146603-3600 | SHIM D17.5&7.5T2.40 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-0700 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-5100 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM D17&5.2T2.1 |
48/1. | [1] | 146690-5900 | SHIM D17&5.2T2.2 |
48/1. | [1] | 146690-6000 | SHIM D17&5.2T2.3 |
48/1. | [1] | 146690-6100 | SHIM D17&5.2T2.4 |
48/1. | [1] | 146690-6200 | SHIM D17&5.2T2.5 |
48/1. | [1] | 146690-6300 | SHIM D17&5.2T2.6 |
48/1. | [1] | 146690-6400 | SHIM D17&5.2T2.7 |
48/1. | [1] | 146690-6500 | SHIM D17&5.2T2.8 |
48/1. | [1] | 146690-6600 | SHIM D17&5.2T2.9 |
48/1. | [1] | 146690-6700 | SHIM D17&5.2T3.0 |
48/1. | [1] | 146690-6800 | SHIM D17&5.2T3.1 |
48/1. | [1] | 146690-6900 | SHIM D17&5.2T3.2 |
48/1. | [1] | 146690-7000 | SHIM D17&5.2T3.3 |
48/1. | [1] | 146690-7100 | SHIM D17&5.2T3.4 |
48/1. | [1] | 146690-7200 | SHIM D17&5.2T0.4 |
48/1. | [1] | 146690-7300 | SHIM D17&5.2T0.6 |
48/1. | [1] | 146690-7400 | SHIM D17&5.2T0.7 |
48/1. | [1] | 146690-7500 | SHIM D17&5.2T1.9 |
48/1. | [1] | 146690-7800 | SHIM D17&5.2T0.2 |
49. | [2] | 146234-0600 | GUIDE PIN |
50. | [1] | 146402-3820 | HYDRAULIC HEAD |
50. | [1] | 146402-3820 | HYDRAULIC HEAD |
50. | [1] | 146402-3820 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
55. | [4] | 146430-6020 | DELIVERY-VALVE ASSEMBLY |
56. | [4] | 146432-0200 | COMPRESSION SPRING |
58. | [4] | 146440-1520 | FITTING |
60. | [4] | 139106-0100 | FLAT-HEAD SCREW |
66. | [1] | 146600-0100 | O-RING |
67. | [1] | 146760-4620 | MANIFOLD-PRESSURE COMP. |
67/1. | [1] | 146806-2920 | GOVERNOR COVER |
67/13. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-2800 | BLEEDER SCREW |
67/16. | [1] | 146526-3000 | BLEEDER SCREW |
67/23. | [1] | 146928-5500 | BRACKET |
67/24. | [3] | 139006-4500 | BLEEDER SCREW |
67/26. | [1] | 146932-2900 | BRACKET |
67/31. | [1] | 146710-0800 | BUSHING |
67/32. | [1] | 146711-0000 | PLATE |
67/33. | [1] | 139218-0400 | UNION NUT |
67/34. | [1] | 146712-0700 | BEARING PIN |
67/35. | [1] | 146621-0300 | UNION NUT |
67/36. | [1] | 146600-1400 | O-RING |
67/37. | [1] | 146710-0100 | BUSHING |
67/38. | [1] | 139506-0200 | GASKET D8.9&6.8T1.00 |
67/39. | [1] | 146620-0300 | CAPSULE |
67/40. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
67/41. | [1] | 146713-4100 | ADJUSTING PIN |
67/42. | [2] | 146714-0000 | PLATE |
67/43. | [1] | 146715-0000 | DIAPHRAGM |
67/44. | [1] | 139306-0100 | LOCKING WASHER |
67/45. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
67/46. | [1] | 146716-0000 | UNION NUT |
67/47. | [1] | 146717-2700 | COILED SPRING |
67/48/1. | [1] | 146720-0000 | SPACER BUSHING L3.7 |
67/48/1. | [1] | 146720-0100 | SPACER BUSHING L3.9 |
67/48/1. | [1] | 146720-0200 | SPACER BUSHING L4.1 |
67/48/1. | [1] | 146720-0300 | SPACER BUSHING L4.3 |
67/48/1. | [1] | 146720-0400 | SPACER BUSHING L4.5 |
67/48/1. | [1] | 146720-0500 | SPACER BUSHING L4.7 |
67/48/1. | [1] | 146720-0600 | SPACER BUSHING L4.9 |
67/48/1. | [1] | 146720-0700 | SPACER BUSHING L5.1 |
67/48/1. | [1] | 146720-0800 | SPACER BUSHING L5.3 |
67/48/1. | [1] | 146720-0900 | SPACER BUSHING L2.7 |
67/48/1. | [1] | 146720-1000 | SPACER BUSHING L2.9 |
67/48/1. | [1] | 146720-1100 | SPACER BUSHING L3.1 |
67/48/1. | [1] | 146720-1200 | SPACER BUSHING L3.3 |
67/48/1. | [1] | 146720-1300 | SPACER BUSHING L3.5 |
67/48/1. | [1] | 146720-1400 | SPACER BUSHING L2.8 |
67/48/1. | [1] | 146720-1500 | SPACER BUSHING L3.0 |
67/48/1. | [1] | 146720-1600 | SPACER BUSHING L3.2 |
67/48/1. | [1] | 146720-1700 | SPACER BUSHING L3.4 |
67/48/1. | [1] | 146720-1800 | SPACER BUSHING L3.6 |
67/48/1. | [1] | 146720-1900 | SPACER BUSHING L3.8 |
67/48/1. | [1] | 146720-2000 | SPACER BUSHING L4.0 |
67/48/1. | [1] | 146720-2100 | SPACER BUSHING L4.2 |
67/48/1. | [1] | 146720-2200 | SPACER BUSHING L4.4 |
67/48/1. | [1] | 146720-2300 | SPACER BUSHING L4.6 |
67/48/1. | [1] | 146720-2400 | SPACER BUSHING L4.8 |
67/48/1. | [1] | 146720-2500 | SPACER BUSHING L5.0 |
67/48/1. | [1] | 146720-2600 | SPACER BUSHING L5.2 |
67/48/1. | [1] | 146720-2700 | SPACER BUSHING L5.4 |
67/48/1. | [1] | 146720-2800 | SPACER BUSHING L5.5 |
67/48/1. | [1] | 146720-2900 | SPACER BUSHING L5.6 |
67/48/1. | [1] | 146720-4500 | SPACER BUSHING L1.8 |
67/48/1. | [1] | 146720-4600 | SPACER BUSHING L1.9 |
67/48/1. | [1] | 146720-4700 | SPACER BUSHING L2.0 |
67/48/1. | [1] | 146720-4800 | SPACER BUSHING L2.1 |
67/48/1. | [1] | 146720-4900 | SPACER BUSHING L2.2 |
67/48/1. | [1] | 146720-5000 | SPACER BUSHING L2.3 |
67/48/1. | [1] | 146720-5100 | SPACER BUSHING L2.4 |
67/48/1. | [1] | 146720-5200 | SPACER BUSHING L2.5 |
67/48/1. | [1] | 146720-5300 | SPACER BUSHING L2.6 |
67/48/1. | [1] | 146725-2500 | SPACER BUSHING L5.7 |
67/48/1. | [1] | 146725-2600 | SPACER BUSHING L5.8 |
67/48/1. | [1] | 146725-2700 | SPACER BUSHING L5.9 |
67/48/1. | [1] | 146725-2800 | SPACER BUSHING L6.0 |
67/48/1. | [1] | 146725-2900 | SPACER BUSHING L6.1 |
67/48/1. | [1] | 146725-3000 | SPACER BUSHING L6.2 |
67/48/1. | [1] | 146725-3100 | SPACER BUSHING L6.3 |
67/48/1. | [1] | 146725-3200 | SPACER BUSHING L6.4 |
67/48/1. | [1] | 146725-3300 | SPACER BUSHING L6.5 |
67/48/1. | [1] | 146725-3400 | SPACER BUSHING L6.6 |
67/48/1. | [1] | 146725-3500 | SPACER BUSHING L6.7 |
67/48/1. | [1] | 146725-3600 | SPACER BUSHING L6.8 |
67/48/1. | [1] | 146725-3700 | SPACER BUSHING L6.9 |
67/48/1. | [1] | 146725-3800 | SPACER BUSHING L7.0 |
67/48/1. | [1] | 146725-3900 | SPACER BUSHING L7.1 |
67/48/1. | [1] | 146725-4000 | SPACER BUSHING L7.2 |
67/48/1. | [1] | 146725-4100 | SPACER BUSHING L7.3 |
67/48/1. | [1] | 146725-4200 | SPACER BUSHING L7.4 |
67/48/1. | [1] | 146725-4300 | SPACER BUSHING L7.5 |
67/49. | [1] | 146721-0820 | COVER |
67/54. | [3] | 139006-4600 | BLEEDER SCREW |
67/55. | [1] | 139006-4700 | BLEEDER SCREW |
67/56. | [1] | 146723-0300 | CONTROL LEVER |
67/57. | [1] | 146712-0100 | BEARING PIN |
67/58. | [2] | 146620-0600 | CAPSULE |
67/59. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
67/60. | [1] | 146724-0300 | ELEMENT |
67/61. | [1] | 146724-0600 | CAPSULE |
67/64. | [1] | 146933-4400 | BRACKET |
67/68. | [1] | 139006-4400 | BLEEDER SCREW |
67/78. | [1] | 146600-4400 | SEAL RING |
67/100. | [1] | 146928-5700 | BRACKET |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-3400 | THREADED PIN L53.00 |
67/201B. | [1] | 146545-3500 | THREADED PIN L55.00 |
67/201C. | [1] | 146545-3600 | THREADED PIN L57.00 |
67/202. | [1] | 139208-0900 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
68. | [1] | 146810-5920 | CONTROL SHAFT |
69. | [1] | 139310-0200 | PLAIN WASHER |
72. | [1] | 146539-6100 | CONTROL LEVER |
72B. | [1] | 146539-6200 | CONTROL LEVER |
73. | [1] | 014110-6440 | LOCKING WASHER |
75. | [1] | 146621-2500 | UNION NUT |
95. | [1] | 146865-5120 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0100 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER D20&8.4T1.40 |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-0500 | PLAIN WASHER D17&6.4T1.60 |
115. | [1] | 146975-4200 | SLIDING SLEEVE |
116. | [1] | 146576-0200 | CAP |
117/1. | [1] | 146577-1800 | PLUG L2.10 |
117/1. | [1] | 146577-1900 | PLUG L2.30 |
117/1. | [1] | 146577-2000 | PLUG L2.50 |
117/1. | [1] | 146577-2100 | PLUG L2.70 |
117/1. | [1] | 146577-2200 | PLUG L2.90 |
117/1. | [1] | 146577-2300 | PLUG L3.10 |
117/1. | [1] | 146577-2400 | PLUG L3.30 |
117/1. | [1] | 146577-2500 | PLUG L3.50 |
117/1. | [1] | 146577-2600 | PLUG L3.70 |
117/1. | [1] | 146577-2700 | PLUG L3.90 |
117/1. | [1] | 146577-2800 | PLUG L4.10 |
117/1. | [1] | 146577-2900 | PLUG L4.30 |
117/1. | [1] | 146577-3000 | PLUG L4.50 |
117/1. | [1] | 146577-3100 | PLUG L4.70 |
117/1. | [1] | 146577-3200 | PLUG L4.90 |
117/1. | [1] | 146577-3300 | PLUG L5.10 |
117/1. | [1] | 146577-6700 | PLUG L2.2 |
117/1. | [1] | 146577-6800 | PLUG L2.4 |
117/1. | [1] | 146577-6900 | PLUG L2.6 |
117/1. | [1] | 146577-7000 | PLUG L2.8 |
117/1. | [1] | 146577-7100 | PLUG L3.0 |
117/1. | [1] | 146577-7200 | PLUG L3.2 |
117/1. | [1] | 146577-7300 | PLUG L3.4 |
117/1. | [1] | 146577-7400 | PLUG L3.6 |
117/1. | [1] | 146577-7500 | PLUG L3.8 |
117/1. | [1] | 146577-7600 | PLUG L4.0 |
117/1. | [1] | 146577-7700 | PLUG L4.2 |
117/1. | [1] | 146577-7800 | PLUG L4.4 |
117/1. | [1] | 146577-7900 | PLUG L4.6 |
117/1. | [1] | 146577-8000 | PLUG L4.8 |
117/1. | [1] | 146577-8100 | PLUG L5.0 |
117/1. | [1] | 146877-0000 | PLUG L5.2 |
117/1. | [1] | 146877-0100 | PLUG L5.3 |
117/1. | [1] | 146877-0200 | PLUG L5.4 |
117/1. | [1] | 146877-0300 | PLUG L5.5 |
117/1. | [1] | 146877-4700 | PLUG |
117/1. | [1] | 146877-4800 | PLUG |
117/1. | [1] | 146877-4900 | PLUG |
117/1. | [1] | 146877-5000 | PLUG |
123. | [4] | 146620-0500 | HEX-SOCKET-HEAD CAP SCREW |
130. | [1] | 146421-1120 | CAPSULE |
130/2. | [1] | 139508-0200 | GASKET D11.4&8.2T1 |
130/3. | [1] | 146422-0300 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0620 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146688-2020 | PULLING ELECTROMAGNET |
137. | [2] | 139514-0200 | GASKET |
145. | [1] | 146621-4901 | UNION NUT |
147. | [1] | 146600-5000 | O-RING |
160. | [1] | 146625-8020 | PLATE |
205. | [1] | 025804-1610 | WOODRUFF KEY |
206. | [1] | 013121-4140 | UNION NUT M14P1.5H11 |
207. | [1] | 029321-4050 | LOCKING WASHER |
217. | [1] | 146541-2900 | SLOTTED WASHER |
218. | [1] | 146592-4300 | COILED SPRING |
219. | [1] | 146541-3000 | BUSHING |
220. | [1] | 146592-4400 | COILED SPRING |
233. | [1] | 146658-8920 | WIRE |
240. | [1] | 146650-1220 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146658-7320 | WIRE |
243. | [1] | 146621-4901 | UNION NUT |
245. | [3] | 139512-0500 | GASKET |
246. | [1] | 146125-0700 | EYE BOLT |
247. | [1] | 146677-1420 | PIPE |
248. | [1] | 146614-0200 | SPACER BUSHING |
260. | [1] | 146611-0720 | BRACKET |
261. | [2] | 146621-4700 | UNION NUT |
264. | [1] | 016500-5010 | O-RING |
270. | [1] | 146615-2021 | TOOTHED GEAR |
270/1. | [1] | 146615-2000 | TOOTHED GEAR |
270/2. | [1] | 146615-0201 | COUPLING PLATE |
270/3. | [6] | 020006-1870 | BLEEDER SCREW M6P1L18 7T |
310. | [1] | 146683-0421 | POTENTCIOMETER |
310/1. | [1] | 146684-5600 | POTENTCIOMETER |
310/3. | [2] | 139104-0400 | FLAT-HEAD SCREW |
310/4. | [1] | 146614-2300 | JOINT CONNECTION |
310/5. | [1] | 146661-0401 | BOOT |
310/6. | [1] | 146621-0500 | UNION NUT |
310/7. | [1] | 146620-1500 | FLAT-HEAD SCREW |
312. | [1] | 146933-4520 | PLATE |
314. | [1] | 139006-4400 | BLEEDER SCREW |
800S. | [1] | 146009-6320 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0700 | PACKING RING |
804S. | [1] | 146232-0720 | COMPRESSION SPRING |
805S. | [1] | 146574-0120 | PARTS SET |
810S. | [1] | 146600-1120 | REPAIR SET |
812S. | [1] | 146600-1920 | PARTS SET |
821S. | [1] | 146210-5720 | ROLLER SET |
835S. | [1] | 146598-1000 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
903. | [1] | 146672-1720 | PULSE GENERATOR |
903/2. | [1] | 146600-1300 | O-RING &13W1.9 |
905. | [1] | 593176-1521 | ADJUSTING DEVICE |
905/2. | [1] | 535020-3220 | BRACKET |
906. | [1] | 146978-7800 | NAMEPLATE |
912. | [2] | 139006-6600 | BLEEDER SCREW |
Include in #2:
104746-6442
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
9 460 614 125
9460614125
ZEXEL
104746-6442
1047466442
ISUZU
8971881872
8971881872
Zexel num
Bosch num
Firm num
Name
104746-6442
9 460 614 125
8971881872 ISUZU
INJECTION-PUMP ASSEMBLY
4JB1-T K 11CJ INJECTION PUMP ASSY VE4 VE
4JB1-T K 11CJ INJECTION PUMP ASSY VE4 VE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113orSAEJ967d
1404 Test oil ISO4113orSAEJ967d
Test oil temperature
degC
45
45
50
Nozzle
105780-0060
Bosch type code
NP-DN0SD1510
Nozzle holder
105780-2150
Opening pressure
MPa
13
13
13.3
Opening pressure
kgf/cm2
133
133
136
Injection pipe
157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450
Inside diameter - outside diameter - length (mm) mm 2-6-450
Joint assembly
157641-4720
Tube assembly
157641-4020
Transfer pump pressure
kPa
20
20
20
Transfer pump pressure
kgf/cm2
0.2
0.2
0.2
Direction of rotation (viewed from drive side)
Left L
Left L
(Solenoid timer adjustment condition)
With S/T O-ring; S/T OFF. OFF
With S/T O-ring; S/T OFF. OFF
Timer measuring device installation position
Low pressure side LOW PRESSURE SIDE
Low pressure side LOW PRESSURE SIDE
Injection timing adjustment
Pump speed
r/min
750
750
750
Boost pressure
kPa
40
38.7
41.3
Boost pressure
kgf/cm2
0.41
0.396
0.424
Boost pressure
mmHg
300
290
310
Average injection quantity
mm3/st.
51.5
51
52
Difference in delivery
mm3/st.
3.5
Basic
*
Oil temperature
degC
50
48
52
Remarks
CBS
CBS
Injection timing adjustment_02
Pump speed
r/min
1250
1250
1250
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Average injection quantity
mm3/st.
69.1
68.6
69.6
Difference in delivery
mm3/st.
5.5
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
Injection timing adjustment_03
Pump speed
r/min
500
500
500
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
34.7
30.7
38.7
Oil temperature
degC
48
46
50
Injection timing adjustment_04
Pump speed
r/min
750
750
750
Boost pressure
kPa
40
38.7
41.3
Boost pressure
kgf/cm2
0.41
0.396
0.424
Boost pressure
mmHg
300
290
310
Average injection quantity
mm3/st.
51.5
50.5
52.5
Difference in delivery
mm3/st.
3.5
Basic
*
Oil temperature
degC
50
48
52
Remarks
CBS
CBS
Injection timing adjustment_05
Pump speed
r/min
1150
1150
1150
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Average injection quantity
mm3/st.
68.3
64.8
71.8
Oil temperature
degC
50
48
52
Injection timing adjustment_06
Pump speed
r/min
1250
1250
1250
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Average injection quantity
mm3/st.
69.1
68.1
70.1
Difference in delivery
mm3/st.
5.5
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
Injection timing adjustment_07
Pump speed
r/min
1250
1250
1250
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
54.4
50.9
57.9
Oil temperature
degC
50
48
52
Injection timing adjustment_08
Pump speed
r/min
1900
1900
1900
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Average injection quantity
mm3/st.
75.5
71.5
79.5
Oil temperature
degC
50
48
52
Injection quantity adjustment
Pump speed
r/min
2300
2300
2300
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Average injection quantity
mm3/st.
28.7
25.7
31.7
Difference in delivery
mm3/st.
4.5
Basic
*
Oil temperature
degC
52
50
54
Injection quantity adjustment_02
Pump speed
r/min
2700
2700
2700
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Average injection quantity
mm3/st.
5
Oil temperature
degC
55
52
58
Injection quantity adjustment_03
Pump speed
r/min
2300
2300
2300
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Average injection quantity
mm3/st.
28.7
25.7
31.7
Difference in delivery
mm3/st.
4.5
Basic
*
Oil temperature
degC
52
50
54
Governor adjustment
Pump speed
r/min
375
375
375
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
7.2
5.2
9.2
Difference in delivery
mm3/st.
2
Basic
*
Oil temperature
degC
48
46
50
Governor adjustment_02
Pump speed
r/min
375
375
375
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
7.2
5.2
9.2
Difference in delivery
mm3/st.
2
Basic
*
Oil temperature
degC
48
46
50
Timer adjustment
Pump speed
r/min
100
100
100
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
60
60
100
Basic
*
Oil temperature
degC
48
46
50
Remarks
IDLE
IDLE
Timer adjustment_02
Pump speed
r/min
100
100
100
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
60
60
100
Oil temperature
degC
48
46
50
Remarks
IDLE
IDLE
Speed control lever angle
Pump speed
r/min
375
375
375
Boost pressure
kPa
0
0
0
Boost pressure
kgf/cm2
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF at idling position
Magnet OFF at idling position
0000000901
Pump speed
r/min
1900
1900
1900
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Overflow quantity with S/T ON
cm3/min
770
640
900
Oil temperature
degC
50
48
52
Stop lever angle
Pump speed
r/min
1900
1900
1900
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Pressure with S/T OFF
kPa
618
598
638
Pressure with S/T OFF
kgf/cm2
6.3
6.1
6.5
Basic
*
Oil temperature
degC
50
48
52
Remarks
OFF
OFF
Stop lever angle_02
Pump speed
r/min
750
750
750
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Pressure with S/T ON
kPa
549
461
637
Pressure with S/T ON
kgf/cm2
5.6
4.7
6.5
Oil temperature
degC
50
48
52
Stop lever angle_03
Pump speed
r/min
1600
1600
1600
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Pressure with S/T OFF
kPa
520
481
559
Pressure with S/T OFF
kgf/cm2
5.3
4.9
5.7
Oil temperature
degC
50
48
52
Stop lever angle_04
Pump speed
r/min
1900
1900
1900
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Pressure with S/T OFF
kPa
618
598
638
Pressure with S/T OFF
kgf/cm2
6.3
6.1
6.5
Basic
*
Oil temperature
degC
50
48
52
Remarks
OFF
OFF
Stop lever angle_05
Pump speed
r/min
2100
2100
2100
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Pressure with S/T OFF
kPa
677
638
716
Pressure with S/T OFF
kgf/cm2
6.9
6.5
7.3
Oil temperature
degC
52
50
54
0000001101
Pump speed
r/min
1900
1900
1900
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Timer stroke with S/T OFF
mm
4.5
4.3
4.7
Basic
*
Oil temperature
degC
50
48
52
Remarks
OFF
OFF
_02
Pump speed
r/min
750
750
750
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Timer stroke with S/T ON
mm
0.5
0.5
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
1600
1600
1600
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Timer stroke with S/T OFF
mm
2.4
2
2.8
Oil temperature
degC
50
48
52
_04
Pump speed
r/min
1900
1900
1900
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Timer stroke with S/T OFF
mm
4.5
4.3
4.7
Basic
*
Oil temperature
degC
50
48
52
Remarks
OFF
OFF
_05
Pump speed
r/min
2300
2300
2300
Boost pressure
kPa
73.3
72
74.6
Boost pressure
kgf/cm2
0.75
0.736
0.764
Boost pressure
mmHg
550
540
560
Timer stroke with S/T OFF
mm
7
6.7
7.4
Oil temperature
degC
52
50
54
0000001201
Max. applied voltage
V
8
8
8
Test voltage
V
13
12
14
Timing setting
K dimension
mm
3.1
3
3.2
KF dimension
mm
5.5
5.4
5.6
MS dimension
mm
0.7
0.6
0.8
BCS stroke
mm
2.9
2.8
3
Pre-stroke
mm
0.45
0.43
0.47
Control lever angle alpha
deg.
18
14
22
Control lever angle beta
deg.
37
32
42
Test data Ex:
0000001801 POTENTIOMETER ADJUSTMENT
A:Adjusting point
B:Confirmation point
C:Lever position
Vi:Applied voltage
V:Output voltage
C1:Idle
C2:Full speed
----------
----------
V1=1.2+-0.03V V2=7.37+-0.86V V3=10V V4=10V
----------
----------
V1=1.2+-0.03V V2=7.37+-0.86V V3=10V V4=10V
0000001901 V-FICD ADJUSTMENT
Adjustment of the V-FICD
1. Adjust so that the distance between the control lever (B) and the actuator rod (A) is S.
2. Apply negative pressure of P1kPa {P2 mmHg} to the actuator and confirm that it moves through its full stroke.
----------
S=1+1mm P1=-53.3kPa P2=-400mmHg
----------
S=1+1mm
----------
S=1+1mm P1=-53.3kPa P2=-400mmHg
----------
S=1+1mm
Have questions with 104746-6442?
Group cross 104746-6442 ZEXEL
Isuzu
Isuzu
104746-6442
9 460 614 125
8971881872

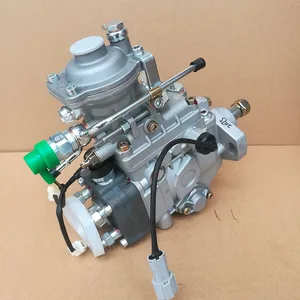

INJECTION-PUMP ASSEMBLY
4JB1-T
4JB1-T
