Information injection-pump assembly
BOSCH
9 460 614 880
9460614880
ZEXEL
104746-5113
1047465113
ISUZU
8972630863
8972630863

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

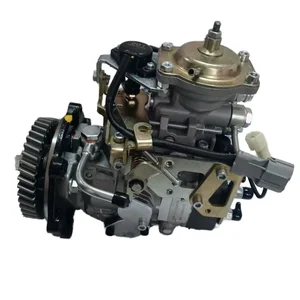

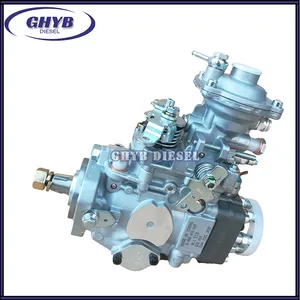

Diesel Fuel Injection Pump Compatible With Isuzu 4JB1-TC 104646-5113 104746-5113 11F1700LNP2336 Engine Replacement Parts
SYOTOE Small size: small size, easy to install in the limited space of the vehicle. || Convenient installation: the external fuel pump is connected in series in the oil pipeline outside the oil tank, which has great freedom of installation and convenient replacement. || Simple maintenance: some fuel pumps are designed to facilitate daily maintenance, such as cleaning the filter screen easily, which is helpful to prolong their service life. || Good cooling effect: the motor of electric fuel pump is immersed in fuel, which has good cooling effect and is conducive to prolonging the service life of the motor. || Easy to control: the electric fuel pump can be controlled electronically to realize accurate adjustment of fuel flow and pressure, which is more convenient to operate.
SYOTOE Small size: small size, easy to install in the limited space of the vehicle. || Convenient installation: the external fuel pump is connected in series in the oil pipeline outside the oil tank, which has great freedom of installation and convenient replacement. || Simple maintenance: some fuel pumps are designed to facilitate daily maintenance, such as cleaning the filter screen easily, which is helpful to prolong their service life. || Good cooling effect: the motor of electric fuel pump is immersed in fuel, which has good cooling effect and is conducive to prolonging the service life of the motor. || Easy to control: the electric fuel pump can be controlled electronically to realize accurate adjustment of fuel flow and pressure, which is more convenient to operate.

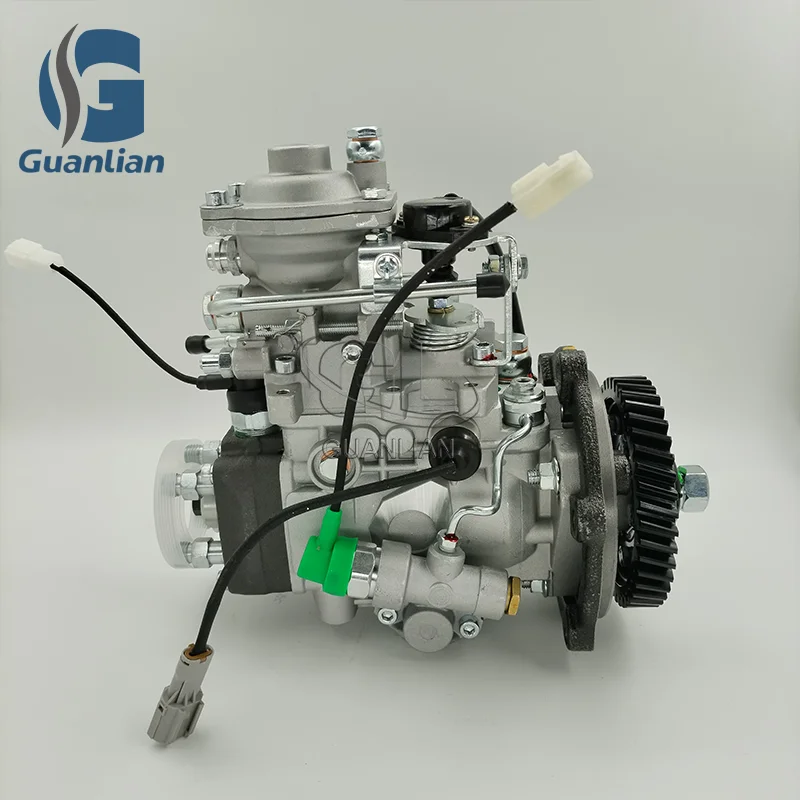

8972630863 Fuel Injection Pump 104746-5113 8-97263086-3 For 4JB1
UCLMCNID Made of high-performance alloys, it is wear-resistant and corrosion-resistant, extending its service life. || Using our product can fully atomize fuel, promote complete combustion, and improve fuel economy. || The internal fuel flow channel has been optimized to reduce pressure loss. || It can maintain a stable working state under various working conditions. || 8972630863 Fuel Injection Pump 104746-5113 8-97263086-3 For 4JB1
UCLMCNID Made of high-performance alloys, it is wear-resistant and corrosion-resistant, extending its service life. || Using our product can fully atomize fuel, promote complete combustion, and improve fuel economy. || The internal fuel flow channel has been optimized to reduce pressure loss. || It can maintain a stable working state under various working conditions. || 8972630863 Fuel Injection Pump 104746-5113 8-97263086-3 For 4JB1
Components :
0. | INJECTION-PUMP ASSEMBLY | 104746-5113 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104646-5113 |
3. | NUMBER PLATE | 146979-3000 |
4. | _ | 146672-4620 |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | 146679-2420 |
7. | NOZZLE AND HOLDER ASSY | 105118-7373 |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 19.1{195}/25.0{255} |
10. | NOZZLE-HOLDER | 105048-2201 |
11. | NOZZLE | 105019-1260 |
Scheme ###:
1/6. | [1] | 146601-0700 | PACKING RING |
6. | [1] | 146100-0120 | SUPPLY PUMP |
9. | [1] | 146103-0400 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-1920 | DRIVE SHAFT |
12/1. | [1] | 146200-1900 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
12/5. | [1] | 146206-0400 | COILED SPRING |
17. | [1] | 146204-0100 | PLAIN WASHER |
20. | [1] | 146210-7920 | ROLLER SET |
24. | [1] | 146303-0400 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0301 | SLOTTED WASHER |
29. | [1] | 146220-6720 | CAM PLATE |
30. | [1] | 146600-6200 | GASKET |
31. | [1] | 146300-5300 | PUMP PLUNGER |
32. | [1] | 146301-0500 | SLIDING PIECE |
33. | [1] | 146603-0700 | SHIM D17.5&7.5T0.60 |
34. | [1] | 146306-4100 | COMPRESSION SPRING |
34B. | [1] | 146306-4200 | COMPRESSION SPRING |
34C. | [1] | 146306-4300 | COMPRESSION SPRING |
35/1. | [0] | 146603-0700 | SHIM D17.5&7.5T0.60 |
35/1. | [0] | 146603-0800 | SHIM D17.5&7.5T0.70 |
35/1. | [0] | 146603-0900 | SHIM D17.5&7.5T0.90 |
35/1. | [0] | 146603-1000 | SHIM D17.5&7.5T1.00 |
35/1. | [0] | 146603-1100 | SHIM D17.5&7.5T1.20 |
35/1. | [0] | 146603-3600 | SHIM D17.5&7.5T2.40 |
36. | [1] | 146600-6200 | GASKET |
37. | [1] | 146310-0000 | COVER |
38. | [2] | 146622-0300 | BLEEDER SCREW |
39. | [1] | 146310-5500 | COVER |
40. | [2] | 146622-0300 | BLEEDER SCREW |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM D17&5.2T2.1 |
48/1. | [1] | 146690-5900 | SHIM D17&5.2T2.2 |
48/1. | [1] | 146690-6000 | SHIM D17&5.2T2.3 |
48/1. | [1] | 146690-6100 | SHIM D17&5.2T2.4 |
48/1. | [1] | 146690-6200 | SHIM D17&5.2T2.5 |
48/1. | [1] | 146690-6300 | SHIM D17&5.2T2.6 |
48/1. | [1] | 146690-6400 | SHIM D17&5.2T2.7 |
48/1. | [1] | 146690-6500 | SHIM D17&5.2T2.8 |
48/1. | [1] | 146690-6600 | SHIM D17&5.2T2.9 |
48/1. | [1] | 146690-6700 | SHIM D17&5.2T3.0 |
48/1. | [1] | 146690-6800 | SHIM D17&5.2T3.1 |
48/1. | [1] | 146690-6900 | SHIM D17&5.2T3.2 |
48/1. | [1] | 146690-7000 | SHIM D17&5.2T3.3 |
48/1. | [1] | 146690-7100 | SHIM D17&5.2T3.4 |
48/1. | [1] | 146690-7200 | SHIM D17&5.2T0.4 |
48/1. | [1] | 146690-7300 | SHIM D17&5.2T0.6 |
48/1. | [1] | 146690-7400 | SHIM D17&5.2T0.7 |
48/1. | [1] | 146690-7500 | SHIM D17&5.2T1.9 |
48/1. | [1] | 146690-7800 | SHIM D17&5.2T0.2 |
49. | [2] | 146234-0800 | GUIDE PIN |
50. | [1] | 146402-4720 | HYDRAULIC HEAD |
50. | [1] | 146402-4720 | HYDRAULIC HEAD |
50. | [1] | 146402-4720 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
58. | [4] | 149300-0521 | PRESSURE-CONTROL VALVE |
60. | [3] | 139106-0100 | FLAT-HEAD SCREW |
66. | [1] | 146600-0100 | O-RING |
67. | [1] | 146760-6720 | MANIFOLD-PRESSURE COMP. |
67/1. | [1] | 146806-4520 | GOVERNOR COVER |
67/13. | [1] | 146621-1700 | UNION NUT |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-3000 | BLEEDER SCREW |
67/16. | [1] | 146526-3000 | BLEEDER SCREW |
67/23. | [1] | 146935-5900 | BRACKET |
67/24. | [1] | 139006-4500 | BLEEDER SCREW |
67/31. | [1] | 146710-0800 | BUSHING |
67/32. | [1] | 146711-0000 | PLATE |
67/33. | [1] | 139218-0400 | UNION NUT |
67/34. | [1] | 146712-0700 | BEARING PIN |
67/35. | [1] | 146621-0300 | UNION NUT |
67/36. | [1] | 146600-1400 | O-RING |
67/37. | [1] | 146710-1400 | BUSHING |
67/38. | [1] | 139506-0200 | GASKET D8.9&6.8T1.00 |
67/39. | [1] | 146620-9500 | CAPSULE |
67/40. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
67/41. | [1] | 146713-4100 | ADJUSTING PIN |
67/42. | [2] | 146714-0000 | PLATE |
67/43. | [1] | 146715-0000 | DIAPHRAGM |
67/44. | [1] | 139306-0100 | LOCKING WASHER |
67/45. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
67/46. | [1] | 146716-0000 | UNION NUT |
67/47. | [1] | 146717-4400 | COILED SPRING |
67/48/1. | [1] | 146720-0000 | SPACER BUSHING L3.7 |
67/48/1. | [1] | 146720-0100 | SPACER BUSHING L3.9 |
67/48/1. | [1] | 146720-0200 | SPACER BUSHING L4.1 |
67/48/1. | [1] | 146720-0300 | SPACER BUSHING L4.3 |
67/48/1. | [1] | 146720-0400 | SPACER BUSHING L4.5 |
67/48/1. | [1] | 146720-0500 | SPACER BUSHING L4.7 |
67/48/1. | [1] | 146720-0600 | SPACER BUSHING L4.9 |
67/48/1. | [1] | 146720-0700 | SPACER BUSHING L5.1 |
67/48/1. | [1] | 146720-0800 | SPACER BUSHING L5.3 |
67/48/1. | [1] | 146720-0900 | SPACER BUSHING L2.7 |
67/48/1. | [1] | 146720-1000 | SPACER BUSHING L2.9 |
67/48/1. | [1] | 146720-1100 | SPACER BUSHING L3.1 |
67/48/1. | [1] | 146720-1200 | SPACER BUSHING L3.3 |
67/48/1. | [1] | 146720-1300 | SPACER BUSHING L3.5 |
67/48/1. | [1] | 146720-1400 | SPACER BUSHING L2.8 |
67/48/1. | [1] | 146720-1500 | SPACER BUSHING L3.0 |
67/48/1. | [1] | 146720-1600 | SPACER BUSHING L3.2 |
67/48/1. | [1] | 146720-1700 | SPACER BUSHING L3.4 |
67/48/1. | [1] | 146720-1800 | SPACER BUSHING L3.6 |
67/48/1. | [1] | 146720-1900 | SPACER BUSHING L3.8 |
67/48/1. | [1] | 146720-2000 | SPACER BUSHING L4.0 |
67/48/1. | [1] | 146720-2100 | SPACER BUSHING L4.2 |
67/48/1. | [1] | 146720-2200 | SPACER BUSHING L4.4 |
67/48/1. | [1] | 146720-2300 | SPACER BUSHING L4.6 |
67/48/1. | [1] | 146720-2400 | SPACER BUSHING L4.8 |
67/48/1. | [1] | 146720-2500 | SPACER BUSHING L5.0 |
67/48/1. | [1] | 146720-2600 | SPACER BUSHING L5.2 |
67/48/1. | [1] | 146720-2700 | SPACER BUSHING L5.4 |
67/48/1. | [1] | 146720-2800 | SPACER BUSHING L5.5 |
67/48/1. | [1] | 146720-2900 | SPACER BUSHING L5.6 |
67/48/1. | [1] | 146720-4500 | SPACER BUSHING L1.8 |
67/48/1. | [1] | 146720-4600 | SPACER BUSHING L1.9 |
67/48/1. | [1] | 146720-4700 | SPACER BUSHING L2.0 |
67/48/1. | [1] | 146720-4800 | SPACER BUSHING L2.1 |
67/48/1. | [1] | 146720-4900 | SPACER BUSHING L2.2 |
67/48/1. | [1] | 146720-5000 | SPACER BUSHING L2.3 |
67/48/1. | [1] | 146720-5100 | SPACER BUSHING L2.4 |
67/48/1. | [1] | 146720-5200 | SPACER BUSHING L2.5 |
67/48/1. | [1] | 146720-5300 | SPACER BUSHING L2.6 |
67/48/1. | [1] | 146725-2500 | SPACER BUSHING L5.7 |
67/48/1. | [1] | 146725-2600 | SPACER BUSHING L5.8 |
67/48/1. | [1] | 146725-2700 | SPACER BUSHING L5.9 |
67/48/1. | [1] | 146725-2800 | SPACER BUSHING L6.0 |
67/48/1. | [1] | 146725-2900 | SPACER BUSHING L6.1 |
67/48/1. | [1] | 146725-3000 | SPACER BUSHING L6.2 |
67/48/1. | [1] | 146725-3100 | SPACER BUSHING L6.3 |
67/48/1. | [1] | 146725-3200 | SPACER BUSHING L6.4 |
67/48/1. | [1] | 146725-3300 | SPACER BUSHING L6.5 |
67/48/1. | [1] | 146725-3400 | SPACER BUSHING L6.6 |
67/48/1. | [1] | 146725-3500 | SPACER BUSHING L6.7 |
67/48/1. | [1] | 146725-3600 | SPACER BUSHING L6.8 |
67/48/1. | [1] | 146725-3700 | SPACER BUSHING L6.9 |
67/48/1. | [1] | 146725-3800 | SPACER BUSHING L7.0 |
67/48/1. | [1] | 146725-3900 | SPACER BUSHING L7.1 |
67/48/1. | [1] | 146725-4000 | SPACER BUSHING L7.2 |
67/48/1. | [1] | 146725-4100 | SPACER BUSHING L7.3 |
67/48/1. | [1] | 146725-4200 | SPACER BUSHING L7.4 |
67/48/1. | [1] | 146725-4300 | SPACER BUSHING L7.5 |
67/49. | [1] | 146721-3820 | COVER |
67/50. | [1] | 146722-0200 | FLAT-HEAD SCREW |
67/51. | [1] | 146600-0300 | O-RING |
67/53. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/54. | [2] | 139006-4500 | BLEEDER SCREW |
67/55. | [2] | 139006-4800 | BLEEDER SCREW |
67/56. | [1] | 146723-1120 | CONTROL LEVER |
67/57. | [1] | 146712-0100 | BEARING PIN |
67/58. | [2] | 146620-0600 | CAPSULE |
67/59. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
67/60. | [1] | 146724-0300 | ELEMENT |
67/61. | [1] | 146724-0600 | CAPSULE |
67/64. | [1] | 146935-6000 | BRACKET |
67/68. | [1] | 139006-4400 | BLEEDER SCREW |
67/78. | [1] | 146600-4400 | SEAL RING |
67/83. | [1] | 146717-4200 | COILED SPRING |
67/98. | [2] | 146648-2800 | SPACER BUSHING |
67/112. | [1] | 146934-9920 | BRACKET |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-3400 | THREADED PIN L53.00 |
67/201B. | [1] | 146545-3500 | THREADED PIN L55.00 |
67/201C. | [1] | 146545-3600 | THREADED PIN L57.00 |
67/202. | [1] | 139208-0900 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
68. | [1] | 146810-9420 | CONTROL SHAFT |
69. | [1] | 139310-0200 | PLAIN WASHER |
72. | [1] | 146830-4200 | CONTROL LEVER |
72B. | [1] | 146830-4300 | CONTROL LEVER |
73. | [1] | 014110-6440 | LOCKING WASHER |
75. | [1] | 013020-6040 | UNION NUT M6P1H5 |
95. | [1] | 146865-9520 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0100 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER D20&8.4T1.40 |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-0500 | PLAIN WASHER D17&6.4T1.60 |
115. | [1] | 146975-4200 | SLIDING SLEEVE |
116. | [1] | 146576-0200 | CAP |
117/1. | [1] | 146577-1800 | PLUG L2.10 |
117/1. | [1] | 146577-1900 | PLUG L2.30 |
117/1. | [1] | 146577-2000 | PLUG L2.50 |
117/1. | [1] | 146577-2100 | PLUG L2.70 |
117/1. | [1] | 146577-2200 | PLUG L2.90 |
117/1. | [1] | 146577-2300 | PLUG L3.10 |
117/1. | [1] | 146577-2400 | PLUG L3.30 |
117/1. | [1] | 146577-2500 | PLUG L3.50 |
117/1. | [1] | 146577-2600 | PLUG L3.70 |
117/1. | [1] | 146577-2700 | PLUG L3.90 |
117/1. | [1] | 146577-2800 | PLUG L4.10 |
117/1. | [1] | 146577-2900 | PLUG L4.30 |
117/1. | [1] | 146577-3000 | PLUG L4.50 |
117/1. | [1] | 146577-3100 | PLUG L4.70 |
117/1. | [1] | 146577-3200 | PLUG L4.90 |
117/1. | [1] | 146577-3300 | PLUG L5.10 |
117/1. | [1] | 146577-6700 | PLUG L2.2 |
117/1. | [1] | 146577-6800 | PLUG L2.4 |
117/1. | [1] | 146577-6900 | PLUG L2.6 |
117/1. | [1] | 146577-7000 | PLUG L2.8 |
117/1. | [1] | 146577-7100 | PLUG L3.0 |
117/1. | [1] | 146577-7200 | PLUG L3.2 |
117/1. | [1] | 146577-7300 | PLUG L3.4 |
117/1. | [1] | 146577-7400 | PLUG L3.6 |
117/1. | [1] | 146577-7500 | PLUG L3.8 |
117/1. | [1] | 146577-7600 | PLUG L4.0 |
117/1. | [1] | 146577-7700 | PLUG L4.2 |
117/1. | [1] | 146577-7800 | PLUG L4.4 |
117/1. | [1] | 146577-7900 | PLUG L4.6 |
117/1. | [1] | 146577-8000 | PLUG L4.8 |
117/1. | [1] | 146577-8100 | PLUG L5.0 |
117/1. | [1] | 146877-0000 | PLUG L5.2 |
117/1. | [1] | 146877-0100 | PLUG L5.3 |
117/1. | [1] | 146877-0200 | PLUG L5.4 |
117/1. | [1] | 146877-0300 | PLUG L5.5 |
117/1. | [1] | 146877-4700 | PLUG |
117/1. | [1] | 146877-4800 | PLUG |
117/1. | [1] | 146877-4900 | PLUG |
117/1. | [1] | 146877-5000 | PLUG |
123. | [4] | 146620-0500 | HEX-SOCKET-HEAD CAP SCREW |
130. | [1] | 146421-1620 | CAPSULE |
130/3. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0620 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-2620 | OVER FLOW VALVE |
137. | [2] | 139512-0500 | GASKET |
138. | [1] | 146666-8420 | INLET UNION |
159. | [1] | 146625-8000 | PLATE |
160. | [1] | 020105-0940 | BLEEDER SCREW |
205. | [1] | 029470-4030 | WOODRUFF KEY |
206. | [1] | 013121-4140 | UNION NUT M14P1.5H11 |
207. | [1] | 029321-4050 | LOCKING WASHER |
220. | [1] | 146587-1900 | COILED SPRING |
221. | [1] | 146930-7121 | BRACKET |
222. | [1] | 146620-9900 | BLEEDER SCREW |
224. | [2] | 139006-4400 | BLEEDER SCREW |
225. | [1] | 146930-7200 | BRACKET |
231. | [1] | 010206-2240 | HEX-SOCKET-HEAD CAP SCREW |
237. | [1] | 146620-0200 | HEX-SOCKET-HEAD CAP SCREW |
240. | [1] | 146650-1220 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146658-7320 | WIRE |
243. | [1] | 146621-4901 | UNION NUT |
245. | [2] | 139512-0500 | GASKET |
246. | [1] | 027412-2440 | EYE BOLT |
247. | [1] | 146677-7420 | INLET UNION |
260. | [1] | 146611-2121 | BRACKET |
261. | [2] | 146621-4700 | UNION NUT |
262. | [1] | 139008-0900 | BLEEDER SCREW |
264. | [1] | 016500-5010 | O-RING |
270. | [1] | 146615-5220 | TOOTHED GEAR |
270/1. | [1] | 146615-5200 | TOOTHED GEAR |
270/2. | [1] | 146615-0201 | COUPLING PLATE |
270/3. | [6] | 020006-1870 | BLEEDER SCREW M6P1L18 7T |
280. | [1] | 146361-5620 | START ADVANCE ASSY |
281. | [1] | 146600-0800 | O-RING |
282. | [1] | 010206-1240 | HEX-SOCKET-HEAD CAP SCREW M6P1L12 |
287. | [1] | 020306-3070 | BLEEDER SCREW |
310. | [1] | 146685-3420 | POTENTCIOMETER |
310/2. | [2] | 139104-0400 | FLAT-HEAD SCREW |
310/3. | [1] | 146648-2900 | JOINT CONNECTION |
310/3B. | [1] | 146648-3000 | JOINT CONNECTION |
310/3C. | [1] | 146648-3100 | JOINT CONNECTION |
310/3D. | [1] | 146648-3200 | JOINT CONNECTION |
310/3E. | [1] | 146648-3300 | JOINT CONNECTION |
310/3F. | [1] | 146649-7700 | JOINT CONNECTION |
310/3G. | [1] | 146649-7800 | JOINT CONNECTION |
310/3H. | [1] | 146649-7900 | JOINT CONNECTION |
310/3I. | [1] | 146649-8000 | JOINT CONNECTION |
310/3J. | [1] | 146649-8100 | JOINT CONNECTION |
310/3K. | [1] | 146649-8200 | JOINT CONNECTION |
310/3L. | [1] | 146649-8300 | JOINT CONNECTION |
310/4. | [1] | 146661-0601 | BOOT |
800S. | [1] | 146020-0220 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0700 | PACKING RING |
804S. | [1] | 146232-1320 | COMPRESSION SPRING |
805S. | [1] | 146574-0120 | PARTS SET |
810S. | [1] | 146600-6320 | REPAIR SET |
821S. | [1] | 146210-7820 | ROLLER SET |
835S. | [1] | 146598-1000 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
839S. | [1] | 146421-1820 | CAPSULE |
839S/3. | [1] | 146600-0500 | O-RING |
903. | [1] | 146672-4620 | PULSE GENERATOR |
903/2. | [1] | 146600-1300 | O-RING &13W1.9 |
905. | [1] | 146679-2420 | ADJUSTING DEVICE |
906. | [1] | 146979-3000 | NAMEPLATE |
912. | [2] | 139006-5700 | BLEEDER SCREW |
Include in #2:
104746-5113
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104746-5113
9 460 614 880
8972630863 ISUZU
INJECTION-PUMP ASSEMBLY
4JB1-TC K 11CJ INJECTION PUMP ASSY VE4 VE
4JB1-TC K 11CJ INJECTION PUMP ASSY VE4 VE
Information:
Start By:a. remove spacer plate
Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Put compression on valve spring (2) with tool (A), and remove locks (1).2. Remove tool (A), rotocoil, spring, valve stem oil shield and valve. Put identification marks on valves with respect to their location in the cylinder head. 3. Check the spring force with tool (B). The spring force is 257 25 N (57.8 5.6 lb.). The length of spring under test force is 44.86 mm (1.766 in). The free length after test is 52.07 mm (2.050 in).4. Perform Steps 1 through 3 again for the remainder of the valves. The following steps are for the installation of the valves.5. Put clean engine oil on the valve stems. Install the valve, oil shield, spring (2) and rotocoil in the cylinder head. 6. Put tool (A) in position on the valve spring, and install the locks with tool (C).
Locks can be thrown from valve when the compressor is released if they are not in their correct position on valve stem. Personal injury can be the result if not carefully removed.
7. Remove tool (A), and hit the top of valve with a plastic hammer be sure the locks are in their correct position on valve.8. Do Steps 5 through 7 again for the remainder of the valves.End By:a. install spacer plate
Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Put compression on valve spring (2) with tool (A), and remove locks (1).2. Remove tool (A), rotocoil, spring, valve stem oil shield and valve. Put identification marks on valves with respect to their location in the cylinder head. 3. Check the spring force with tool (B). The spring force is 257 25 N (57.8 5.6 lb.). The length of spring under test force is 44.86 mm (1.766 in). The free length after test is 52.07 mm (2.050 in).4. Perform Steps 1 through 3 again for the remainder of the valves. The following steps are for the installation of the valves.5. Put clean engine oil on the valve stems. Install the valve, oil shield, spring (2) and rotocoil in the cylinder head. 6. Put tool (A) in position on the valve spring, and install the locks with tool (C).
Locks can be thrown from valve when the compressor is released if they are not in their correct position on valve stem. Personal injury can be the result if not carefully removed.
7. Remove tool (A), and hit the top of valve with a plastic hammer be sure the locks are in their correct position on valve.8. Do Steps 5 through 7 again for the remainder of the valves.End By:a. install spacer plate
Have questions with 104746-5113?
Group cross 104746-5113 ZEXEL
Isuzu
104746-5113
9 460 614 880
8972630863
INJECTION-PUMP ASSEMBLY
4JB1-TC
4JB1-TC
