Information injection-pump assembly
BOSCH
9 460 611 959
9460611959
ZEXEL
104745-7361
1047457361
NISSAN
1670084K01
1670084k01

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

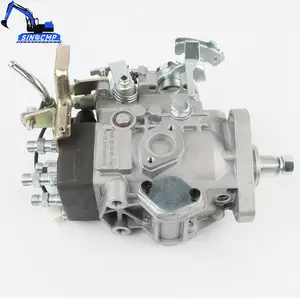

Diesel Fuel Injection Pump 104645-7361 104745-7361 NP-VE4/10F1200RNP1748 1670084K01 Compatible For NISSAN
CFNCFJGJ [Part number] : 104645-7361 104745-7361 || [Easy installation] : Standard interface, easy installation, plug and play, no professional skills, easy installation. || [Durable and reliable] : After multiple tests, long life, excellent quality, and stable work in extreme environments. || [Efficient and stable] : With the support of advanced technology, fuel supply is efficient and stable, ensuring the smooth flow of vehicles. || [High quality] : The use of high-quality materials and smart design, strict testing and verification, to ensure long-term stability and high reliability.
CFNCFJGJ [Part number] : 104645-7361 104745-7361 || [Easy installation] : Standard interface, easy installation, plug and play, no professional skills, easy installation. || [Durable and reliable] : After multiple tests, long life, excellent quality, and stable work in extreme environments. || [Efficient and stable] : With the support of advanced technology, fuel supply is efficient and stable, ensuring the smooth flow of vehicles. || [High quality] : The use of high-quality materials and smart design, strict testing and verification, to ensure long-term stability and high reliability.
Diesel VE Fuel Injection Pump 104645-7361 104745-7361 NP-VE4/10F1200RNP1748 1670084K01 Compatible With TD27
PFIMORLAX 1. Durable and wear-resistant design: Our fuel pump adopts good-quality materials and precision manufacturing technology, which has excellent durability and wear-resistant ability and can run stably for a long time. || 2. High-performance delivery: The fuel pump adopts advanced technology, which can deliver fuel to the engine efficiently and reliably, and make the power output of the vehicle stable. || 3. Low noise and mute: special noise reduction design, low noise level during operation, bringing a quieter and more comfortable driving experience. || 4. Quick response: Quick fuel supply response can quickly meet the engine's demand for fuel and improve the driving experience of the vehicle. || 5. Compatible with various models: widely compatible with various brands and models of cars, with simple installation and no need for complicated modification.
PFIMORLAX 1. Durable and wear-resistant design: Our fuel pump adopts good-quality materials and precision manufacturing technology, which has excellent durability and wear-resistant ability and can run stably for a long time. || 2. High-performance delivery: The fuel pump adopts advanced technology, which can deliver fuel to the engine efficiently and reliably, and make the power output of the vehicle stable. || 3. Low noise and mute: special noise reduction design, low noise level during operation, bringing a quieter and more comfortable driving experience. || 4. Quick response: Quick fuel supply response can quickly meet the engine's demand for fuel and improve the driving experience of the vehicle. || 5. Compatible with various models: widely compatible with various brands and models of cars, with simple installation and no need for complicated modification.
104745-7361 1047457361 16700-84K01 VE4 Fuel Injection Pump for Nissan TD27 Engine Patrol Y60 Y61 Navara D21 D22 Terrano
HIRINTOL 🔸Replace Part Number: 104745-7361 9460611959 16700-84K01 NP-VE4/10F1200RNP1748 || 🔸Compatible Model: for Nissan TD27 Engine Patrol Y60 Y61 Navara D21 D22 Terrano || 🔸Efficient And Stable: Using advanced technology, it can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || 🔸Durable And Reliable: Tested and proven many times, it has a long life and reliable quality to keep working under extreme conditions. || 🔸Easy Installation: standard interface design, easy installation, plug and play, no professional skills required.
HIRINTOL 🔸Replace Part Number: 104745-7361 9460611959 16700-84K01 NP-VE4/10F1200RNP1748 || 🔸Compatible Model: for Nissan TD27 Engine Patrol Y60 Y61 Navara D21 D22 Terrano || 🔸Efficient And Stable: Using advanced technology, it can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || 🔸Durable And Reliable: Tested and proven many times, it has a long life and reliable quality to keep working under extreme conditions. || 🔸Easy Installation: standard interface design, easy installation, plug and play, no professional skills required.
Components :
0. | INJECTION-PUMP ASSEMBLY | 104745-7361 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104645-7361 |
3. | NUMBER PLATE | 146972-4900 |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105148-1221 |
8. | Nozzle and Holder | 16600-63G01 |
9. | Open Pre:MPa(Kqf/cm2) | 9.8{100} |
10. | NOZZLE-HOLDER | 105078-0050 |
11. | NOZZLE | 105007-1210 |
Scheme ###:
1/6. | [1] | 146601-0900 | PACKING RING |
6. | [1] | 146100-0020 | SUPPLY PUMP |
9. | [1] | 146103-0000 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0020 | DRIVE SHAFT |
12/1. | [1] | 146200-0000 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-1720 | ROLLER SET |
24. | [1] | 146303-0000 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0000 | SLOTTED WASHER |
29. | [1] | 146220-2120 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146300-0000 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
33. | [1] | 146603-0700 | SHIM D17.5&7.5T0.60 |
34. | [1] | 146302-3600 | COMPRESSION SPRING |
34B. | [1] | 146302-3500 | COMPRESSION SPRING |
34C. | [1] | 146302-3700 | COMPRESSION SPRING |
35/1. | [0] | 146603-0700 | SHIM D17.5&7.5T0.60 |
35/1. | [0] | 146603-0800 | SHIM D17.5&7.5T0.70 |
35/1. | [0] | 146603-0900 | SHIM D17.5&7.5T0.90 |
35/1. | [0] | 146603-1000 | SHIM D17.5&7.5T1.00 |
35/1. | [0] | 146603-1100 | SHIM D17.5&7.5T1.20 |
35/1. | [0] | 146603-3600 | SHIM D17.5&7.5T2.40 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-0700 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-0100 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM |
48/1. | [1] | 146690-5900 | SHIM |
48/1. | [1] | 146690-6000 | SHIM |
48/1. | [1] | 146690-6100 | SHIM |
48/1. | [1] | 146690-6200 | SHIM |
48/1. | [1] | 146690-6300 | SHIM |
48/1. | [1] | 146690-6400 | SHIM |
48/1. | [1] | 146690-6500 | SHIM |
48/1. | [1] | 146690-6600 | SHIM |
48/1. | [1] | 146690-6700 | SHIM |
48/1. | [1] | 146690-6800 | SHIM |
48/1. | [1] | 146690-6900 | SHIM |
48/1. | [1] | 146690-7000 | SHIM |
48/1. | [1] | 146690-7100 | SHIM |
48/1. | [1] | 146690-7200 | SHIM |
48/1. | [1] | 146690-7300 | SHIM |
48/1. | [1] | 146690-7400 | SHIM |
48/1. | [1] | 146690-7500 | SHIM |
48/1. | [1] | 146690-7800 | SHIM |
49. | [2] | 146234-0020 | GUIDE PIN |
50. | [1] | 146401-3420 | HYDRAULIC HEAD |
50. | [1] | 146401-3420 | HYDRAULIC HEAD |
50. | [1] | 146401-3420 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
55. | [4] | 146430-0320 | DELIVERY-VALVE ASSEMBLY |
56. | [4] | 146432-0000 | COMPRESSION SPRING |
58. | [4] | 146440-0220 | FITTING |
60. | [3] | 139106-0100 | FLAT-HEAD SCREW |
67. | [1] | 146820-8620 | GOVERNOR COVER |
67/1. | [1] | 146805-2120 | GOVERNOR COVER |
67/2. | [1] | 146515-0320 | CONTROL SHAFT |
67/3. | [1] | 146600-0100 | O-RING |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/6. | [1] | 014110-6440 | LOCKING WASHER |
67/8. | [1] | 146515-1820 | LEVER SHAFT |
67/9. | [1] | 146592-0400 | COILED SPRING |
67/10. | [1] | 146600-0200 | O-RING |
67/11. | [1] | 146602-0100 | PLAIN WASHER D14&10.1T1.50 |
67/12. | [1] | 146540-4000 | CONTROL LEVER |
67/12B. | [1] | 146540-4100 | CONTROL LEVER |
67/13. | [1] | 146621-1700 | UNION NUT |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-2800 | BLEEDER SCREW |
67/16. | [1] | 146526-6400 | BLEEDER SCREW |
67/25. | [2] | 013020-6040 | UNION NUT M6P1H5 |
67/25. | [2] | 013020-6040 | UNION NUT M6P1H5 |
67/26. | [1] | 139006-0200 | BLEEDER SCREW |
67/78. | [1] | 146600-4400 | SEAL RING |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-3400 | THREADED PIN L53.00 |
67/201B. | [1] | 146545-3500 | THREADED PIN L55.00 |
67/201C. | [1] | 146545-3600 | THREADED PIN L57.00 |
67/202. | [1] | 139208-0900 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
72. | [1] | 146831-0520 | CONTROL LEVER |
72B. | [1] | 146831-0620 | CONTROL LEVER |
73. | [1] | 014110-6440 | LOCKING WASHER |
75. | [1] | 146621-0700 | UNION NUT |
95. | [1] | 146861-0120 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0100 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER D20&8.4T1.40 |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-2600 | PLAIN WASHER D34&13T1.0 |
115. | [1] | 146975-4200 | SLIDING SLEEVE |
116. | [1] | 146576-0200 | CAP |
117/1. | [1] | 146577-1800 | PLUG L2.10 |
117/1. | [1] | 146577-1900 | PLUG L2.30 |
117/1. | [1] | 146577-2000 | PLUG L2.50 |
117/1. | [1] | 146577-2100 | PLUG L2.70 |
117/1. | [1] | 146577-2200 | PLUG L2.90 |
117/1. | [1] | 146577-2300 | PLUG L3.10 |
117/1. | [1] | 146577-2400 | PLUG L3.30 |
117/1. | [1] | 146577-2500 | PLUG L3.50 |
117/1. | [1] | 146577-2600 | PLUG L3.70 |
117/1. | [1] | 146577-2700 | PLUG L3.90 |
117/1. | [1] | 146577-2800 | PLUG L4.10 |
117/1. | [1] | 146577-2900 | PLUG L4.30 |
117/1. | [1] | 146577-3000 | PLUG L4.50 |
117/1. | [1] | 146577-3100 | PLUG L4.70 |
117/1. | [1] | 146577-3200 | PLUG L4.90 |
117/1. | [1] | 146577-3300 | PLUG L5.10 |
117/1. | [1] | 146577-6700 | PLUG L2.2 |
117/1. | [1] | 146577-6800 | PLUG L2.4 |
117/1. | [1] | 146577-6900 | PLUG L2.6 |
117/1. | [1] | 146577-7000 | PLUG L2.8 |
117/1. | [1] | 146577-7100 | PLUG L3.0 |
117/1. | [1] | 146577-7200 | PLUG L3.2 |
117/1. | [1] | 146577-7300 | PLUG L3.4 |
117/1. | [1] | 146577-7400 | PLUG L3.6 |
117/1. | [1] | 146577-7500 | PLUG L3.8 |
117/1. | [1] | 146577-7600 | PLUG L4.0 |
117/1. | [1] | 146577-7700 | PLUG L4.2 |
117/1. | [1] | 146577-7800 | PLUG L4.4 |
117/1. | [1] | 146577-7900 | PLUG L4.6 |
117/1. | [1] | 146577-8000 | PLUG L4.8 |
117/1. | [1] | 146577-8100 | PLUG L5.0 |
117/1. | [1] | 146877-0000 | PLUG L5.2 |
117/1. | [1] | 146877-0100 | PLUG L5.3 |
117/1. | [1] | 146877-0200 | PLUG L5.4 |
117/1. | [1] | 146877-0300 | PLUG L5.5 |
117/1. | [1] | 146877-4700 | PLUG |
117/1. | [1] | 146877-4800 | PLUG |
117/1. | [1] | 146877-4900 | PLUG |
117/1. | [1] | 146877-5000 | PLUG |
120. | [1] | 146579-2720 | RETAINING PIN |
122. | [1] | 146580-3900 | GOVERNOR SPRING |
123. | [4] | 139106-0200 | FLAT-HEAD SCREW |
130. | [1] | 146421-0020 | CAPSULE |
130/2. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
130/3. | [1] | 146422-0000 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0220 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-0020 | OVER FLOW VALVE |
200. | [1] | 146206-0100 | COILED SPRING |
217. | [1] | 146541-3100 | SLOTTED WASHER |
218. | [1] | 146592-1300 | COILED SPRING |
219. | [1] | 146541-3000 | BUSHING |
220. | [1] | 146587-7200 | COILED SPRING |
230. | [1] | 146934-1120 | BRACKET |
231. | [1] | 139006-4600 | BLEEDER SCREW |
236. | [1] | 139006-4800 | BLEEDER SCREW |
237. | [1] | 146620-0200 | HEX-SOCKET-HEAD CAP SCREW |
240. | [1] | 146650-0720 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146658-6120 | WIRE |
243. | [1] | 146621-1000 | UNION NUT |
246. | [1] | 027412-2440 | EYE BOLT |
309. | [1] | 139006-4600 | BLEEDER SCREW |
310. | [1] | 146684-8820 | POTENTCIOMETER |
310/2. | [1] | 146926-0700 | BRACKET |
310/3. | [2] | 139104-0400 | FLAT-HEAD SCREW |
310/4. | [1] | 146620-2900 | FLAT-HEAD SCREW |
310/5. | [1] | 146621-0500 | UNION NUT |
310/6. | [1] | 146614-2300 | JOINT CONNECTION |
311. | [2] | 010206-1040 | HEX-SOCKET-HEAD CAP SCREW |
800S. | [1] | 146009-9220 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0900 | PACKING RING |
800S/1/6. | [1] | 146601-0900 | PACKING RING |
804S. | [1] | 146232-0320 | COMPRESSION SPRING |
805S. | [1] | 146574-0320 | PARTS SET |
810S. | [1] | 146600-1120 | REPAIR SET |
821S. | [1] | 146210-5720 | ROLLER SET |
835S. | [1] | 146598-1000 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
847S. | [1] | 146684-2210 | POTENTCIOMETER |
906. | [1] | 146972-4900 | NAMEPLATE |
Include in #2:
104745-7361
as INJECTION-PUMP ASSEMBLY
Cross reference number
Zexel num
Bosch num
Firm num
Name
104745-7361
9 460 611 959
1670084K01 NISSAN
INJECTION-PUMP ASSEMBLY
TD27 K 11CJ INJECTION PUMP ASSY VE4 VE
TD27 K 11CJ INJECTION PUMP ASSY VE4 VE
104745-7361
9 460 611 959
1670084K01 NISSAN-DIESEL
INJECTION-PUMP ASSEMBLY
TD27 K 11CJ INJECTION PUMP ASSY VE4 VE
TD27 K 11CJ INJECTION PUMP ASSY VE4 VE
Information:
Illustration 4 g01784824
Right side view of machine (A) Hood and guard group (B) Lines group (Air) (C) Air cleaner
Illustration 5 g01784914
Front view of machineInstallation Procedure
The installation procedure that follows is specific for the listed machine.Diesel Particulate Filter Installation
Illustration 6 g01784177
(2) 331-8935 Bracket (12) 5P-8245 Hard Washer (13) 6V-8149 Nut (14) 8F-6437 Washer (15) 8T-4956 Bolt
Place two new 331-8935 Brackets (2) parallel to each other on top of the hood. Secure the brackets by using four new 8F-6437 Washers (14), four new 5P-8245 Hard Washers (12), four new 6V-8149 Nuts (13) and four new 8T-4956 Bolts (15). Refer to Illustration 6.
Illustration 7 g01784193
(5) 295-3044 Exhaust Support Gp (Lower half) (14) 8F-6437 Washer (15) 8T-4956 Bolt
Install the two lower halves of the new 295-3044 Exhaust Support Gp (5) onto two brackets (2) using four new 8F-6437 Washers (14) and four new 8T-4956 Bolts (15). Refer to Illustration 7.
Illustration 8 g01784213
(1) 331-8928 Diesel Particulate Filter Gp (5a) Clamp As (Upper half) (5b) Bolts (5c) Hard Washers (5d) Weld Nuts
Place 331-8928 Diesel Particulate Filter Gp (1) onto the two lower halves of exhaust support group (5). The weight of the diesel particulate filter group is approximately 43.6 kg (96.1 lb). Refer to Illustration 8.
Install the two upper clamp assemblies (5a) onto the two lower halves of exhaust support group (5) by using four hard washers (5c), four weld nuts (5d) and four bolts (5b). Refer to Illustration 8.
Illustration 9 g01784214
(9) 174-5414 Clamp (11) 255-2899 Tail Pipe As
Install the new 255-2899 Tail Pipe As (11) to the outlet module tube of the diesel particulate filter group. Refer to Illustration 9.
Secure tail pipe assembly (11) to the outlet module tube of diesel particulate filter group by using a new 174-5414 Clamp (9). Refer to Illustration 9.
Illustration 10 g01784215
(3) 331-9047 Filter Tube As (7) 241-6170 Plug (8) 8T-6765 Pipe Plug (10) 209-4589 Clamp
Install the new 331-9047 Filter Tube As (3) to the inlet module tube of the diesel particulate filter group. Refer to Illustration 10.
Secure filter tube assembly (3) to the inlet module tube of the diesel particulate filter group by using one new 209-4589 Clamp (10). Refer to Illustration 10.
Install the new 241-6170 Plug (7) and 8T-6765 Pipe Plug (8) onto the bosses that are provided on filter tube assembly (3). Refer to Illustration 10.
Illustration 11 g01784216
(6) 270-0112 Bellows (10) 209-4589 Clamp
Install the new 270-0112 Bellows (6) to filter tube assembly (3). Refer to Illustration 11.
Secure bellows (6) to filter tube assembly (3) by using one new 209-4589 Clamp (10). Refer to Illustration 11.
Illustration 12 g01784217
(4) 331-8934 Filter Tube (10) 209-4589 Clamp
Install the new 331-8934 Filter Tube (4) into bellows (6). Refer to Illustration 12.
Secure filter tube (4) to bellows (6) by using one new 209-4589 Clamp (10). Refer to Illustration 12.
Connect
Have questions with 104745-7361?
Group cross 104745-7361 ZEXEL
Nissan
Nissan-Diesel
Nissan
104745-7361
9 460 611 959
1670084K01
INJECTION-PUMP ASSEMBLY
TD27
TD27
Nissan-Diesel
104745-7361
9 460 611 959
1670084K01
INJECTION-PUMP ASSEMBLY
TD27
TD27
