Information injection-pump assembly
BOSCH
9 460 615 093
9460615093
ZEXEL
104742-7570
1047427570
YANMAR
12967251950
12967251950
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

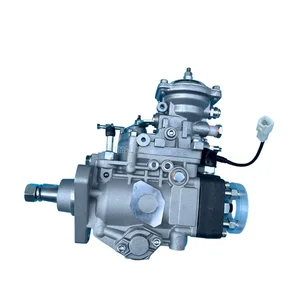

YIHETOP Fuel Injection Pump 129672-51950 104742-7570 9460615093 Compatible for Yanmar 4JH4 4JH4-HTE1 4JH4TX1 Engine
YIHETOP Part Number:104742-7570, 129672-51950, 9460615093, 1047427570, 12967251950 || Compatible For Yanmar Engine: 4JH4, 4JH4-HTE, 4JH4-HTE1, 4JH4-TE, 4JH4TX1
YIHETOP Part Number:104742-7570, 129672-51950, 9460615093, 1047427570, 12967251950 || Compatible For Yanmar Engine: 4JH4, 4JH4-HTE, 4JH4-HTE1, 4JH4-TE, 4JH4TX1
Components :
0. | INJECTION-PUMP ASSEMBLY | 104742-7570 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104642-7570 |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | |
10. | NOZZLE-HOLDER | |
11. | NOZZLE |
Scheme ###:
1/6. | [1] | 146601-0700 | PACKING RING |
6. | [1] | 146100-0120 | SUPPLY PUMP |
9. | [1] | 146103-0000 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-1920 | DRIVE SHAFT |
12/1. | [1] | 146200-1900 | DRIVE SHAFT |
12/1. | [1] | 146200-1900 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
12/5. | [1] | 146206-0400 | COILED SPRING |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-9020 | ROLLER SET |
24. | [1] | 146303-0400 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0301 | SLOTTED WASHER |
29. | [1] | 146220-5020 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146300-4500 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
33. | [1] | 146603-0700 | SHIM |
34. | [1] | 146306-4700 | COMPRESSION SPRING |
34B. | [1] | 146306-4500 | COMPRESSION SPRING |
35/1. | [0] | 146603-0700 | SHIM D17.5&7.5T0.60 |
35/1. | [0] | 146603-0800 | SHIM D17.5&7.5T0.70 |
35/1. | [0] | 146603-0900 | SHIM D17.5&7.5T0.90 |
35/1. | [0] | 146603-1000 | SHIM D17.5&7.5T1.00 |
35/1. | [0] | 146603-1100 | SHIM D17.5&7.5T1.20 |
35/1. | [0] | 146603-3600 | SHIM D17.5&7.5T2.40 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-0700 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-5200 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM D17&5.2T2.1 |
48/1. | [1] | 146690-5900 | SHIM D17&5.2T2.2 |
48/1. | [1] | 146690-6000 | SHIM D17&5.2T2.3 |
48/1. | [1] | 146690-6100 | SHIM D17&5.2T2.4 |
48/1. | [1] | 146690-6200 | SHIM D17&5.2T2.5 |
48/1. | [1] | 146690-6300 | SHIM D17&5.2T2.6 |
48/1. | [1] | 146690-6400 | SHIM D17&5.2T2.7 |
48/1. | [1] | 146690-6500 | SHIM D17&5.2T2.8 |
48/1. | [1] | 146690-6600 | SHIM D17&5.2T2.9 |
48/1. | [1] | 146690-6700 | SHIM D17&5.2T3.0 |
48/1. | [1] | 146690-6800 | SHIM D17&5.2T3.1 |
48/1. | [1] | 146690-6900 | SHIM D17&5.2T3.2 |
48/1. | [1] | 146690-7000 | SHIM D17&5.2T3.3 |
48/1. | [1] | 146690-7100 | SHIM D17&5.2T3.4 |
48/1. | [1] | 146690-7200 | SHIM D17&5.2T0.4 |
48/1. | [1] | 146690-7300 | SHIM D17&5.2T0.6 |
48/1. | [1] | 146690-7400 | SHIM D17&5.2T0.7 |
48/1. | [1] | 146690-7500 | SHIM D17&5.2T1.9 |
48/1. | [1] | 146690-7800 | SHIM D17&5.2T0.2 |
49. | [2] | 146234-0600 | GUIDE PIN |
50. | [1] | 146402-5520 | HYDRAULIC HEAD |
50. | [1] | 146402-5520 | HYDRAULIC HEAD |
50. | [1] | 146402-5520 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET |
58. | [4] | 149300-0521 | PRESSURE-CONTROL VALVE |
60. | [3] | 139106-0100 | FLAT-HEAD SCREW |
67. | [1] | 146704-2520 | COMPENSATOR,MANIFOLD-PRES |
67/1. | [1] | 146508-8821 | GOVERNOR COVER |
67/2. | [1] | 146815-0120 | CONTROL SHAFT |
67/3. | [1] | 146600-0100 | O-RING |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/5. | [1] | 146831-7900 | CONTROL LEVER |
67/5B. | [1] | 146831-8000 | CONTROL LEVER |
67/6. | [2] | 014110-6440 | LOCKING WASHER D12.2&6.1T1.5 |
67/6. | [2] | 014110-6440 | LOCKING WASHER D12.2&6.1T1.5 |
67/7. | [1] | 013020-6040 | UNION NUT |
67/8. | [1] | 146515-1120 | LEVER SHAFT |
67/9. | [1] | 146587-4600 | COILED SPRING |
67/10. | [1] | 146600-0200 | O-RING |
67/11. | [1] | 146602-0100 | PLAIN WASHER |
67/12. | [1] | 146540-0000 | CONTROL LEVER |
67/13. | [1] | 013020-6040 | UNION NUT |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-4500 | BLEEDER SCREW |
67/16. | [1] | 146526-3000 | BLEEDER SCREW |
67/17. | [1] | 146526-0000 | FLAT-HEAD SCREW |
67/18. | [1] | 146587-4000 | COILED SPRING |
67/19. | [1] | 146541-0000 | ANGLE PIECE |
67/23. | [1] | 146613-1300 | BRACKET |
67/24. | [2] | 139006-4700 | BLEEDER SCREW |
67/25. | [2] | 013020-6040 | UNION NUT |
67/25. | [2] | 013020-6040 | UNION NUT |
67/31. | [1] | 146710-0700 | BUSHING |
67/32. | [1] | 146711-0000 | PLATE |
67/33. | [1] | 139218-0400 | UNION NUT |
67/34. | [1] | 146712-0700 | BEARING PIN |
67/35. | [1] | 146621-0300 | UNION NUT |
67/36. | [1] | 146600-1400 | O-RING |
67/37. | [1] | 146710-0100 | BUSHING |
67/38. | [1] | 139506-0200 | GASKET |
67/39. | [1] | 146620-9500 | CAPSULE |
67/40. | [1] | 026512-1540 | GASKET |
67/41. | [1] | 146713-4300 | ADJUSTING PIN |
67/42. | [2] | 146714-0200 | PLATE |
67/43. | [1] | 146715-0300 | DIAPHRAGM |
67/44. | [1] | 139306-0100 | LOCKING WASHER |
67/45. | [1] | 013030-6040 | UNION NUT |
67/46. | [1] | 146716-0000 | UNION NUT |
67/47. | [1] | 146717-3900 | COILED SPRING |
67/48/1. | [1] | 146720-3000 | SPACER BUSHING L3.7 |
67/48/1. | [1] | 146720-3100 | SPACER BUSHING L3.9 |
67/48/1. | [1] | 146720-3200 | SPACER BUSHING L4.1 |
67/48/1. | [1] | 146720-3300 | SPACER BUSHING L4.3 |
67/48/1. | [1] | 146720-3400 | SPACER BUSHING L4.5 |
67/48/1. | [1] | 146720-3500 | SPACER BUSHING L4.7 |
67/48/1. | [1] | 146720-3600 | SPACER BUSHING L4.9 |
67/48/1. | [1] | 146720-3700 | SPACER BUSHING L5.1 |
67/48/1. | [1] | 146720-3800 | SPACER BUSHING L5.3 |
67/48/1. | [1] | 146720-3900 | SPACER BUSHING L5.5 |
67/48/1. | [1] | 146720-4000 | SPACER BUSHING L5.7 |
67/48/1. | [1] | 146720-4100 | SPACER BUSHING L5.9 |
67/48/1. | [1] | 146720-4200 | SPACER BUSHING L6.1 |
67/48/1. | [1] | 146720-4300 | SPACER BUSHING L6.3 |
67/48/1. | [1] | 146720-4400 | SPACER BUSHING L6.5 |
67/48/1. | [1] | 146720-8900 | SPACER BUSHING L6.7 |
67/48/1. | [1] | 146720-9000 | SPACER BUSHING L6.9 |
67/48/1. | [1] | 146720-9100 | SPACER BUSHING L7.1 |
67/48/1. | [1] | 146720-9200 | SPACER BUSHING L7.3 |
67/48/1. | [1] | 146720-9300 | SPACER BUSHING L7.5 |
67/48/1. | [1] | 146720-9400 | SPACER BUSHING L7.7 |
67/48/1. | [1] | 146720-9500 | SPACER BUSHING L7.9 |
67/48/1. | [1] | 146720-9600 | SPACER BUSHING L8.1 |
67/48/1. | [1] | 146720-9700 | SPACER BUSHING L8.3 |
67/48/1. | [1] | 146720-9800 | SPACER BUSHING L8.5 |
67/48/1. | [1] | 146720-9900 | SPACER BUSHING L3.6 |
67/48/1. | [1] | 146725-0000 | SPACER BUSHING L3.8 |
67/48/1. | [1] | 146725-0100 | SPACER BUSHING L4.0 |
67/48/1. | [1] | 146725-0200 | SPACER BUSHING L4.2 |
67/48/1. | [1] | 146725-0300 | SPACER BUSHING L4.4 |
67/48/1. | [1] | 146725-0400 | SPACER BUSHING L4.6 |
67/48/1. | [1] | 146725-0500 | SPACER BUSHING L4.8 |
67/48/1. | [1] | 146725-0600 | SPACER BUSHING L5.0 |
67/48/1. | [1] | 146725-0700 | SPACER BUSHING L5.2 |
67/48/1. | [1] | 146725-0800 | SPACER BUSHING L5.4 |
67/48/1. | [1] | 146725-0900 | SPACER BUSHING L5.6 |
67/48/1. | [1] | 146725-1000 | SPACER BUSHING L5.8 |
67/48/1. | [1] | 146725-1100 | SPACER BUSHING L6.0 |
67/48/1. | [1] | 146725-1200 | SPACER BUSHING L6.2 |
67/48/1. | [1] | 146725-1300 | SPACER BUSHING L6.4 |
67/48/1. | [1] | 146725-1400 | SPACER BUSHING L6.6 |
67/48/1. | [1] | 146725-1500 | SPACER BUSHING L6.8 |
67/48/1. | [1] | 146725-1600 | SPACER BUSHING L7.0 |
67/48/1. | [1] | 146725-1700 | SPACER BUSHING L7.2 |
67/48/1. | [1] | 146725-1800 | SPACER BUSHING L7.4 |
67/48/1. | [1] | 146725-1900 | SPACER BUSHING L7.6 |
67/48/1. | [1] | 146725-2000 | SPACER BUSHING L7.8 |
67/48/1. | [1] | 146725-2100 | SPACER BUSHING L8.0 |
67/48/1. | [1] | 146725-2200 | SPACER BUSHING L8.2 |
67/48/1. | [1] | 146725-2300 | SPACER BUSHING L8.4 |
67/48/1. | [1] | 146725-2400 | SPACER BUSHING L8.6 |
67/49. | [1] | 146721-4920 | COVER |
67/54. | [4] | 020006-1240 | BLEEDER SCREW |
67/56. | [1] | 146723-0300 | CONTROL LEVER |
67/57. | [1] | 146712-0100 | BEARING PIN |
67/58. | [2] | 146620-0600 | CAPSULE |
67/59. | [2] | 026506-1040 | GASKET |
67/60. | [1] | 146724-0300 | ELEMENT |
67/61. | [1] | 146724-0600 | CAPSULE |
67/78. | [1] | 146600-4400 | SEAL RING |
67/83. | [1] | 146717-4200 | COILED SPRING |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-3400 | THREADED PIN L53.00 |
67/201B. | [1] | 146545-3500 | THREADED PIN L55.00 |
67/201C. | [1] | 146545-3600 | THREADED PIN L57.00 |
67/202. | [1] | 139208-0900 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
95. | [1] | 146855-1520 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1.0 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0100 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-2600 | PLAIN WASHER |
115. | [1] | 146975-4200 | SLIDING SLEEVE |
116. | [1] | 146576-0200 | CAP |
117/1. | [1] | 146577-1800 | PLUG L2.10 |
117/1. | [1] | 146577-1900 | PLUG L2.30 |
117/1. | [1] | 146577-2000 | PLUG L2.50 |
117/1. | [1] | 146577-2100 | PLUG L2.70 |
117/1. | [1] | 146577-2200 | PLUG L2.90 |
117/1. | [1] | 146577-2300 | PLUG L3.10 |
117/1. | [1] | 146577-2400 | PLUG L3.30 |
117/1. | [1] | 146577-2500 | PLUG L3.50 |
117/1. | [1] | 146577-2600 | PLUG L3.70 |
117/1. | [1] | 146577-2700 | PLUG L3.90 |
117/1. | [1] | 146577-2800 | PLUG L4.10 |
117/1. | [1] | 146577-2900 | PLUG L4.30 |
117/1. | [1] | 146577-3000 | PLUG L4.50 |
117/1. | [1] | 146577-3100 | PLUG L4.70 |
117/1. | [1] | 146577-3200 | PLUG L4.90 |
117/1. | [1] | 146577-3300 | PLUG L5.10 |
117/1. | [1] | 146577-6700 | PLUG L2.2 |
117/1. | [1] | 146577-6800 | PLUG L2.4 |
117/1. | [1] | 146577-6900 | PLUG L2.6 |
117/1. | [1] | 146577-7000 | PLUG L2.8 |
117/1. | [1] | 146577-7100 | PLUG L3.0 |
117/1. | [1] | 146577-7200 | PLUG L3.2 |
117/1. | [1] | 146577-7300 | PLUG L3.4 |
117/1. | [1] | 146577-7400 | PLUG L3.6 |
117/1. | [1] | 146577-7500 | PLUG L3.8 |
117/1. | [1] | 146577-7600 | PLUG L4.0 |
117/1. | [1] | 146577-7700 | PLUG L4.2 |
117/1. | [1] | 146577-7800 | PLUG L4.4 |
117/1. | [1] | 146577-7900 | PLUG L4.6 |
117/1. | [1] | 146577-8000 | PLUG L4.8 |
117/1. | [1] | 146577-8100 | PLUG L5.0 |
117/1. | [1] | 146877-0000 | PLUG L5.2 |
117/1. | [1] | 146877-0100 | PLUG L5.3 |
117/1. | [1] | 146877-0200 | PLUG L5.4 |
117/1. | [1] | 146877-0300 | PLUG L5.5 |
117/1. | [1] | 146877-4700 | PLUG L5.6 |
117/1. | [1] | 146877-4800 | PLUG L5.7 |
117/1. | [1] | 146877-4900 | PLUG L5.8 |
117/1. | [1] | 146877-5000 | PLUG L5.9 |
120. | [1] | 146879-4220 | RETAINING PIN |
122. | [1] | 146580-1200 | GOVERNOR SPRING |
123. | [4] | 146620-0500 | HEX-SOCKET-HEAD CAP SCREW |
130. | [1] | 146421-1120 | CAPSULE |
130/2. | [1] | 139508-0200 | GASKET |
130/3. | [1] | 146422-0300 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0520 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-2620 | OVER FLOW VALVE |
230. | [1] | 146936-6300 | BRACKET |
231. | [1] | 139006-4700 | BLEEDER SCREW |
237. | [1] | 146620-0200 | HEX-SOCKET-HEAD CAP SCREW |
238. | [1] | 146655-0400 | COILED SPRING |
240. | [1] | 146650-4520 | PULLING ELECTROMAGNET |
240/4. | [1] | 146600-1700 | O-RING |
240/7. | [1] | 146600-1700 | O-RING |
242. | [1] | 146658-4820 | WIRE |
243. | [1] | 146621-4901 | UNION NUT |
245. | [1] | 139512-0500 | GASKET |
246. | [1] | 146125-1320 | EYE BOLT |
251. | [1] | 146125-0101 | FILTER |
252. | [1] | 146125-0200 | COILED SPRING |
280. | [1] | 146361-6320 | START ADVANCE ASSY |
281. | [1] | 146600-0800 | O-RING |
282. | [2] | 010206-1240 | HEX-SOCKET-HEAD CAP SCREW |
287. | [1] | 020146-1270 | BLEEDER SCREW |
800S. | [1] | 146020-3320 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0700 | PACKING RING |
804S. | [1] | 146232-1720 | COMPRESSION SPRING |
805S. | [1] | 146574-0920 | PARTS SET |
810S. | [1] | 146600-1120 | REPAIR SET |
821S. | [1] | 146210-7320 | ROLLER SET |
835S. | [1] | 146598-1000 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
906. | [1] | 146911-1000 | NAMEPLATE |
907. | [1] | 029470-4030 | WOODRUFF KEY |
908. | [1] | 013121-4140 | UNION NUT |
909. | [1] | 029321-4050 | LOCKING WASHER |
Include in #2:
104742-7570
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
9 460 615 093
9460615093
ZEXEL
104742-7570
1047427570
YANMAR
12967251950
12967251950
Zexel num
Bosch num
Firm num
Name
104742-7570
9 460 615 093
12967251950 YANMAR
INJECTION-PUMP ASSEMBLY
4JH4-HTE K
4JH4-HTE K
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113orSAEJ967d
1404 Test oil ISO4113orSAEJ967d
Test oil temperature
degC
45
45
50
Nozzle
105780-0060
Bosch type code
NP-DN0SD1510
Nozzle holder
105780-2150
Opening pressure
MPa
13
13
13.3
Opening pressure
kgf/cm2
133
133
136
Injection pipe
157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450
Inside diameter - outside diameter - length (mm) mm 2-6-450
Joint assembly
157641-4720
Tube assembly
157641-4020
Transfer pump pressure
kPa
20
20
20
Transfer pump pressure
kgf/cm2
0.2
0.2
0.2
Direction of rotation (viewed from drive side)
Right R
Right R
Timer measuring device installation position
Low pressure side LOW PRESSURE SIDE
Low pressure side LOW PRESSURE SIDE
Injection timing adjustment
Pump speed
r/min
750
750
750
Boost pressure
kPa
40
38.7
41.3
Boost pressure
mmHg
300
290
310
Average injection quantity
mm3/st.
91.2
90.7
91.7
Basic
*
Oil temperature
degC
50
48
52
Remarks
CBS
CBS
Injection timing adjustment_02
Pump speed
r/min
1100
1100
1100
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
128.2
127.7
128.7
Difference in delivery
mm3/st.
10.5
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
Injection timing adjustment_03
Pump speed
r/min
500
500
500
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
43.1
43.1
43.1
Oil temperature
degC
48
46
50
Injection timing adjustment_04
Pump speed
r/min
750
750
750
Boost pressure
kPa
40
38.7
41.3
Boost pressure
mmHg
300
290
310
Average injection quantity
mm3/st.
91.2
89.2
93.2
Basic
*
Oil temperature
degC
50
48
52
Remarks
CBS
CBS
Injection timing adjustment_05
Pump speed
r/min
1100
1100
1100
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
128.2
126.2
130.2
Difference in delivery
mm3/st.
10.5
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
Injection timing adjustment_06
Pump speed
r/min
1600
1600
1600
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
124
116
132
Oil temperature
degC
50
48
52
Injection quantity adjustment
Pump speed
r/min
1750
1750
1750
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
60.3
55.8
64.8
Difference in delivery
mm3/st.
8
Basic
*
Oil temperature
degC
50
48
52
Injection quantity adjustment_02
Pump speed
r/min
2000
2000
2000
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
5
Oil temperature
degC
50
48
52
Injection quantity adjustment_03
Pump speed
r/min
1750
1750
1750
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Average injection quantity
mm3/st.
60.3
55.3
65.3
Basic
*
Oil temperature
degC
50
48
52
Governor adjustment
Pump speed
r/min
380
380
380
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
8
6
10
Difference in delivery
mm3/st.
3
Basic
*
Oil temperature
degC
48
46
50
Governor adjustment_02
Pump speed
r/min
380
380
380
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
8
5.5
10.5
Difference in delivery
mm3/st.
3
Basic
*
Oil temperature
degC
48
46
50
Timer adjustment
Pump speed
r/min
100
100
100
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
110
90
130
Basic
*
Oil temperature
degC
48
46
50
Remarks
Full
Full
Timer adjustment_02
Pump speed
r/min
100
100
100
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
110
110
110
Oil temperature
degC
48
46
50
Remarks
Full
Full
Speed control lever angle
Pump speed
r/min
380
380
380
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet ON at idling position and reversed operate
Magnet ON at idling position and reversed operate
Speed control lever angle_02
Pump speed
r/min
380
380
380
Boost pressure
kPa
0
0
0
Boost pressure
mmHg
0
0
0
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF at idling position and stop lever operate
Magnet OFF at idling position and stop lever operate
0000000901
Pump speed
r/min
1500
1500
1500
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Overflow quantity
cm3/min
1360
1130
1590
Oil temperature
degC
50
48
52
Stop lever angle
Pump speed
r/min
1500
1500
1500
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Pressure
kPa
569
540
598
Pressure
kgf/cm2
5.8
5.5
6.1
Basic
*
Oil temperature
degC
50
48
52
Stop lever angle_02
Pump speed
r/min
1200
1200
1200
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Pressure
kPa
481
442
520
Pressure
kgf/cm2
4.9
4.5
5.3
Oil temperature
degC
50
48
52
Stop lever angle_03
Pump speed
r/min
1400
1400
1400
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Pressure
kPa
539
500
578
Pressure
kgf/cm2
5.5
5.1
5.9
Oil temperature
degC
50
48
52
Stop lever angle_04
Pump speed
r/min
1500
1500
1500
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Pressure
kPa
569
530
608
Pressure
kgf/cm2
5.8
5.4
6.2
Basic
*
Oil temperature
degC
50
48
52
Stop lever angle_05
Pump speed
r/min
1600
1600
1600
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Pressure
kPa
598
559
637
Pressure
kgf/cm2
6.1
5.7
6.5
Oil temperature
degC
50
48
52
0000001101
Pump speed
r/min
1500
1500
1500
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Timer stroke
mm
1.2
1
1.4
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
1200
1200
1200
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Timer stroke
mm
0.5
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
1500
1500
1500
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Timer stroke
mm
1.2
0.8
1.6
Basic
*
Oil temperature
degC
50
48
52
_04
Pump speed
r/min
1600
1600
1600
Boost pressure
kPa
80
78.7
81.3
Boost pressure
mmHg
600
590
610
Timer stroke
mm
2.1
1.5
2.7
Oil temperature
degC
50
48
52
0000001201
Max. applied voltage
V
8
8
8
Test voltage
Reverse operation (At Normal: OFF, At Stop: ON) V 13 12 14
Reverse operation (At Normal: OFF, At Stop: ON) V 13 12 14
Timing setting
K dimension
mm
3.6
3.5
3.7
KF dimension
mm
6.85
6.75
6.95
MS dimension
mm
0.7
0.6
0.8
BCS stroke
mm
6.9
6.8
7
Pre-stroke
mm
0.2
0.18
0.22
Control lever angle alpha
deg.
25
21
29
Control lever angle beta
deg.
40.5
35.5
45.5
Test data Ex:
0000001801 Temp. adjust full-load screw
Temporary full load screw adjustment
Set the full load screw protrusion at L mm at assembly.
----------
L=14+-0.5mm
----------
L=14+-0.5mm
----------
L=14+-0.5mm
----------
L=14+-0.5mm
0000001901 STOP LEVER ADJUSTMENT
Adjustment of the stop lever
1. Confirm that the starting injection quantity is within standards at the normal position.
If below the specified lower limit, move the stop lever serrations one tooth and reconfirm.
2. Pull the stop lever (A) to the fuel cut direction at the standard idling speed of N and adjust the screw (B) to the position Q.
Fix nut (C) to the torque T at the position where the clearance between the stop lever and the end of the screw is L mm (the screw is returned 2 turns).
The head of the screw must protrude above the face of the nut. If the head of the screw is below the face of the nut, adjust the clearance between the stop lever A and the end of the screw at Q to L mm or more.
3. If adjustment in item 2 is not possible, move the stop lever installation position 1 tooth.
4. The stop lever's operating force is max. M kg (at R = 35). The stop lever must operate smoothly.
(D) Normal position
(E) Stop position
----------
N=380r/min Q=0mm3/st L=2mm T=6~9N-m(0.6~0.9kgf-m) M=4.0kg
----------
S=Dia6.5+0.09mm R=35mm
----------
N=380r/min Q=0mm3/st L=2mm T=6~9N-m(0.6~0.9kgf-m) M=4.0kg
----------
S=Dia6.5+0.09mm R=35mm
0000002001 W-CSD ADJUSTMENT
Adjustment of the W-CSD
Adjust screw A so that the timer advance angle determined in (B) can be obtained.
Y:Timer stroke TA (mm)
X:Temperature t (deg C)
(B) Timer stroke TA (mm):
TA = -0.059t + 2.22 ( -10 deg C <= t <= 20 deg C)
TA = -0.0433t + 1.906 ( 20 deg C <= t <= 35 deg C)
TA = -0.0239t + 1.227 ( 35 deg C <= t)
(C) Tolerance +-0.1(mm)
----------
----------
(C)=TA+-0.1mm
----------
----------
(C)=TA+-0.1mm
Have questions with 104742-7570?
Group cross 104742-7570 ZEXEL
Yanmar
Yanmar
104742-7570
9 460 615 093
12967251950
INJECTION-PUMP ASSEMBLY
4JH4-HTE
4JH4-HTE
