Information injection-pump assembly
BOSCH
F 01G 09W 0FB
f01g09w0fb
ZEXEL
104741-8132
1047418132
MITSUBISHI-HEAV
32A6520410
32a6520410

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

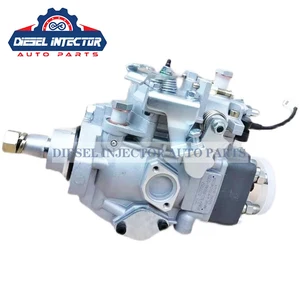

104641-8132 32A65-20410 VE Injector Pumps Diesel Compatible for Zexel Fuel Injection Pump Compatible for mitsubishi S4S Engine
OKLCJUN Fast start: Ensures fast response and reliability during cold and hot starts. || Low noise and vibration: Optimized design to reduce noise and vibration and improve driving comfort. || Space saving: Compact design for easy installation and placement in the engine compartment of the vehicle. || Our fuel pump efficiently transfers fuel to the engine, which will enhance your vehicle's performance and fuel efficiency. || With anti-clogging design, it can effectively filter impurities and particles in the oil to ensure that the fuel flows smoothly. This will extend the life of the fuel pump and reduce the frequency of maintenance.
OKLCJUN Fast start: Ensures fast response and reliability during cold and hot starts. || Low noise and vibration: Optimized design to reduce noise and vibration and improve driving comfort. || Space saving: Compact design for easy installation and placement in the engine compartment of the vehicle. || Our fuel pump efficiently transfers fuel to the engine, which will enhance your vehicle's performance and fuel efficiency. || With anti-clogging design, it can effectively filter impurities and particles in the oil to ensure that the fuel flows smoothly. This will extend the life of the fuel pump and reduce the frequency of maintenance.
104641-8132 ZEXEL NP-VE 4/11F1250RNP2622 32A65-20410 Injection Pump Compatible With MITSUBISHI S4S
ZAIQUDOU Make sure the OE number matches the part you are replacing. || Easy to install: direct replacement, OEM standard, plug and play. Not just aftermarket replacements. || Efficient and stable: The use of advanced technology can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || Warranty period: 6 months. If there are any problems during this period, repair or replacement services will be provided. || Package includes: 1 piece jet pump
ZAIQUDOU Make sure the OE number matches the part you are replacing. || Easy to install: direct replacement, OEM standard, plug and play. Not just aftermarket replacements. || Efficient and stable: The use of advanced technology can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || Warranty period: 6 months. If there are any problems during this period, repair or replacement services will be provided. || Package includes: 1 piece jet pump
Diesel Fuel Injection Pump 104641-8132 104741-8132 32A65-20410 NP-VE4/11F1150RNP2622 Compatible For MITSUBISHI
TINEOOC OEM NO. 104641-8132 104741-8132 32A65-20410 NP-VE4/11F1150RNP2622 || Diesel Fuel Injection Pump 104641-8132 104741-8132 32A65-20410 NP-VE4/11F1150RNP2622 Compatible For MITSUBISHI || ⚙️ The name of my store is: A spare parts king, here is the car parts you want! || ⚙️ The fuel pump is equipped with a standardized interface for quick and easy installation, no additional tools or modifications are required, and vehicle owners can easily replace it by themselves. || ⚙️ Optimized design and advanced technology ensure that the fuel pump provides a constant and stable fuel supply, enhancing the overall performance and fuel efficiency of the vehicle.
TINEOOC OEM NO. 104641-8132 104741-8132 32A65-20410 NP-VE4/11F1150RNP2622 || Diesel Fuel Injection Pump 104641-8132 104741-8132 32A65-20410 NP-VE4/11F1150RNP2622 Compatible For MITSUBISHI || ⚙️ The name of my store is: A spare parts king, here is the car parts you want! || ⚙️ The fuel pump is equipped with a standardized interface for quick and easy installation, no additional tools or modifications are required, and vehicle owners can easily replace it by themselves. || ⚙️ Optimized design and advanced technology ensure that the fuel pump provides a constant and stable fuel supply, enhancing the overall performance and fuel efficiency of the vehicle.
Components :
0. | INJECTION-PUMP ASSEMBLY | 104741-8132 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | |
10. | NOZZLE-HOLDER | |
11. | NOZZLE |
Scheme ###:
1/6. | [1] | 146601-0900 | PACKING RING |
6. | [1] | 146100-0420 | SUPPLY PUMP |
9. | [1] | 146103-0100 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0020 | DRIVE SHAFT |
12/1. | [1] | 146200-0000 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-2320 | ROLLER SET |
24. | [1] | 146303-0000 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0000 | SLOTTED WASHER |
29. | [1] | 146220-4820 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146311-8920 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
34. | [1] | 146312-6700 | COMPRESSION SPRING |
34B. | [1] | 146312-6800 | COMPRESSION SPRING |
34C. | [1] | 146312-6900 | COMPRESSION SPRING |
35/1. | [1] | 146690-3200 | SHIM D11.5&9.4T0.1 |
35/1. | [1] | 146690-3300 | SHIM D11.5&9.4T0.2 |
35/1. | [1] | 146690-3400 | SHIM D11.5&9.4T0.25 |
35/1. | [1] | 146690-3500 | SHIM D11.5&9.4T1.0 |
35/1. | [1] | 146690-4100 | SHIM D11.5&9.4T2 |
35/1. | [1] | 146690-4200 | SHIM D11.5&9.4T0.5 |
35/1. | [1] | 146690-4300 | SHIM D11.5&9.4T0.75 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-4020 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-0100 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
41. | [1] | 146312-1900 | COMPRESSION SPRING |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM D17&5.2T2.1 |
48/1. | [1] | 146690-5900 | SHIM D17&5.2T2.2 |
48/1. | [1] | 146690-6000 | SHIM D17&5.2T2.3 |
48/1. | [1] | 146690-6100 | SHIM D17&5.2T2.4 |
48/1. | [1] | 146690-6200 | SHIM D17&5.2T2.5 |
48/1. | [1] | 146690-6300 | SHIM D17&5.2T2.6 |
48/1. | [1] | 146690-6400 | SHIM D17&5.2T2.7 |
48/1. | [1] | 146690-6500 | SHIM D17&5.2T2.8 |
48/1. | [1] | 146690-6600 | SHIM D17&5.2T2.9 |
48/1. | [1] | 146690-6700 | SHIM D17&5.2T3.0 |
48/1. | [1] | 146690-6800 | SHIM D17&5.2T3.1 |
48/1. | [1] | 146690-6900 | SHIM D17&5.2T3.2 |
48/1. | [1] | 146690-7000 | SHIM D17&5.2T3.3 |
48/1. | [1] | 146690-7100 | SHIM D17&5.2T3.4 |
48/1. | [1] | 146690-7200 | SHIM D17&5.2T0.4 |
48/1. | [1] | 146690-7300 | SHIM D17&5.2T0.6 |
48/1. | [1] | 146690-7400 | SHIM D17&5.2T0.7 |
48/1. | [1] | 146690-7500 | SHIM D17&5.2T1.9 |
48/1. | [1] | 146690-7800 | SHIM D17&5.2T0.2 |
49. | [2] | 146234-0600 | GUIDE PIN |
50. | [1] | 146401-4220 | HYDRAULIC HEAD |
50. | [1] | 146401-4220 | HYDRAULIC HEAD |
50. | [1] | 146401-4220 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET |
55. | [4] | 146430-3320 | DELIVERY-VALVE ASSEMBLY VE33 |
56. | [4] | 146432-0000 | COMPRESSION SPRING |
58. | [4] | 146440-0220 | FITTING |
60. | [3] | 139106-0100 | FLAT-HEAD SCREW |
67. | [1] | 146822-3320 | GOVERNOR COVER |
67/1. | [1] | 146508-1022 | GOVERNOR COVER |
67/2. | [1] | 146815-0120 | CONTROL SHAFT |
67/3. | [1] | 146600-0100 | O-RING |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/5. | [1] | 146832-5500 | CONTROL LEVER MARK:255 |
67/5B. | [1] | 146832-5600 | CONTROL LEVER MARK:256 |
67/5C. | [1] | 146832-9300 | CONTROL LEVER MARK:293 |
67/5D. | [1] | 146832-9400 | CONTROL LEVER MARK:294 |
67/6. | [2] | 014110-6440 | LOCKING WASHER D12.2&6.1T1.5 |
67/6. | [2] | 014110-6440 | LOCKING WASHER D12.2&6.1T1.5 |
67/7. | [1] | 013020-6040 | UNION NUT |
67/8. | [1] | 146515-1820 | LEVER SHAFT |
67/9. | [1] | 146587-4500 | COILED SPRING |
67/10. | [1] | 146600-0200 | O-RING |
67/11. | [1] | 146602-0100 | PLAIN WASHER |
67/12. | [1] | 146540-1300 | CONTROL LEVER |
67/12B. | [1] | 146540-1400 | CONTROL LEVER MARK:0 |
67/12C. | [1] | 146540-5200 | CONTROL LEVER |
67/12D. | [1] | 146540-5300 | CONTROL LEVER |
67/13. | [1] | 146621-1700 | UNION NUT |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-3400 | BLEEDER SCREW |
67/16. | [1] | 146526-7300 | FLAT-HEAD SCREW |
67/18. | [1] | 146587-0400 | COILED SPRING |
67/19. | [1] | 146541-0000 | ANGLE PIECE |
67/23. | [1] | 146925-2520 | BRACKET |
67/24. | [2] | 139006-4500 | BLEEDER SCREW |
67/25. | [1] | 013020-6040 | UNION NUT |
67/78. | [1] | 146600-4400 | SEAL RING |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-4600 | THREADED PIN L=24MM |
67/201B. | [1] | 146545-4700 | THREADED PIN L=26MM |
67/201C. | [1] | 146545-4800 | THREADED PIN L=28MM |
67/202. | [1] | 146598-5000 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
67/204. | [1] | 146545-4500 | DAMPER |
95. | [1] | 146891-3220 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1.0 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0420 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-9400 | PLAIN WASHER |
115. | [1] | 146976-3000 | SLIDING SLEEVE |
116. | [1] | 146576-0400 | CAP |
117/1. | [1] | 146877-0820 | PLUG L=5.0 |
117/1. | [1] | 146877-0920 | PLUG L=5.1 |
117/1. | [1] | 146877-1020 | PLUG L=5.2 |
117/1. | [1] | 146877-1120 | PLUG L=5.3 |
117/1. | [1] | 146877-1220 | PLUG L=5.4 |
117/1. | [1] | 146877-1320 | PLUG L=5.5 |
117/1. | [1] | 146877-1420 | PLUG L=5.6 |
117/1. | [1] | 146877-1520 | PLUG L=5.7 |
117/1. | [1] | 146877-1620 | PLUG L=5.8 |
117/1. | [1] | 146877-1720 | PLUG L=5.9 |
117/1. | [1] | 146877-1820 | PLUG L=6.0 |
117/1. | [1] | 146877-1920 | PLUG L=6.1 |
117/1. | [1] | 146877-2020 | PLUG L=6.2 |
117/1. | [1] | 146877-2120 | PLUG L=6.3 |
117/1. | [1] | 146877-2220 | PLUG L=6.4 |
117/1. | [1] | 146877-2320 | PLUG L=6.5 |
117/1. | [1] | 146877-2420 | PLUG L=6.6 |
117/1. | [1] | 146877-2520 | PLUG L=6.7 |
117/1. | [1] | 146877-2620 | PLUG L=6.8 |
117/1. | [1] | 146877-2720 | PLUG L=6.9 |
117/1. | [1] | 146877-2820 | PLUG L=7.0 |
117/1. | [1] | 146877-2920 | PLUG L=7.1 |
117/1. | [1] | 146877-3020 | PLUG L=7.2 |
117/1. | [1] | 146877-3120 | PLUG L=7.3 |
117/1. | [1] | 146877-3220 | PLUG L=7.4 |
117/1. | [1] | 146877-3320 | PLUG L=7.5 |
117/1. | [1] | 146877-3420 | PLUG L=7.6 |
117/1. | [1] | 146877-3520 | PLUG L=7.7 |
117/1. | [1] | 146877-3620 | PLUG L=7.8 |
117/1. | [1] | 146877-3720 | PLUG L=7.9 |
117/1. | [1] | 146877-3820 | PLUG L=8.0 |
117/1. | [1] | 146877-3920 | PLUG L=8.1 |
117/1. | [1] | 146877-4020 | PLUG L=8.2 |
117/1. | [1] | 146877-4120 | PLUG L=8.3 |
117/1. | [1] | 146877-4220 | PLUG L=8.4 |
120. | [1] | 146879-6820 | RETAINING PIN |
122. | [1] | 146580-0600 | GOVERNOR SPRING |
123. | [4] | 139106-0200 | FLAT-HEAD SCREW |
130. | [1] | 146421-0020 | CAPSULE |
130/2. | [1] | 026508-1140 | GASKET D11.4&8.2T1.0 |
130/3. | [1] | 146422-0000 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-3720 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-0120 | OVER FLOW VALVE |
137. | [2] | 139512-0500 | GASKET |
200. | [1] | 146206-0100 | COILED SPRING |
235. | [1] | 146935-8601 | BRACKET |
236. | [2] | 010206-2240 | HEX-SOCKET-HEAD CAP SCREW |
237. | [1] | 146620-0200 | HEX-SOCKET-HEAD CAP SCREW |
240. | [1] | 146650-1220 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146662-1420 | WIRE |
243. | [1] | 146621-4901 | UNION NUT |
245. | [1] | 139512-0500 | GASKET |
247. | [1] | 146669-1720 | INLET UNION |
251. | [1] | 146125-0101 | FILTER |
252. | [1] | 146125-0200 | COILED SPRING |
343. | [1] | 146598-8700 | CAP NUT |
410. | [1] | 014020-6140 | PLAIN WASHER D11.5&6.5 |
411. | [1] | 146598-6300 | CAP NUT |
800S. | [1] | 146020-1820 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0900 | PACKING RING |
804S. | [1] | 146232-0720 | COMPRESSION SPRING |
805S. | [1] | 146574-1220 | PARTS SET |
810S. | [1] | 146600-1120 | REPAIR SET |
821S. | [1] | 146210-5720 | ROLLER SET |
825S. | [1] | 146598-8600 | CAP NUT |
835S. | [1] | 146598-7320 | CAP |
836S. | [1] | 146598-7920 | CAP |
837S. | [1] | 146598-7310 | CAP |
838S. | [1] | 146598-6710 | CAP |
906. | [1] | 146940-3400 | NAMEPLATE |
907. | [1] | 025803-1640 | WOODRUFF KEY |
908. | [1] | 013021-2140 | UNION NUT |
909. | [1] | 014111-2440 | LOCKING WASHER |
Include in #2:
104741-8132
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
F 01G 09W 0FB
f01g09w0fb
ZEXEL
104741-8132
1047418132
MITSUBISHI-HEAV
32A6520410
32a6520410
Zexel num
Bosch num
Firm num
Name
104741-8132
F 01G 09W 0FB
32A6520410 MITSUBISHI-HEAV
INJECTION-PUMP ASSEMBLY
S4S
S4S
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113orSAEJ967d
1404 Test oil ISO4113orSAEJ967d
Test oil temperature
degC
45
45
50
Nozzle
105780-0060
Bosch type code
NP-DN0SD1510
Nozzle holder
105780-2150
Opening pressure
MPa
13
13
13.3
Opening pressure
kgf/cm2
133
133
136
Injection pipe
157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450
Inside diameter - outside diameter - length (mm) mm 2-6-450
Joint assembly
157641-4720
Tube assembly
157641-4020
Transfer pump pressure
kPa
20
20
20
Transfer pump pressure
kgf/cm2
0.2
0.2
0.2
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
50.5
50
51
Difference in delivery
mm3/st.
4
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_02
Pump speed
r/min
500
500
500
Average injection quantity
mm3/st.
48.5
43
54
Oil temperature
degC
48
46
50
Injection timing adjustment_03
Pump speed
r/min
800
800
800
Average injection quantity
mm3/st.
52.6
48.6
56.6
Oil temperature
degC
50
48
52
Injection timing adjustment_04
Pump speed
r/min
900
900
900
Average injection quantity
mm3/st.
51.5
47.5
55.5
Oil temperature
degC
50
48
52
Injection timing adjustment_05
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
50.5
49.5
51.5
Difference in delivery
mm3/st.
4.5
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_06
Pump speed
r/min
1250
1250
1250
Average injection quantity
mm3/st.
46.5
40
50.5
Oil temperature
degC
50
48
52
Injection quantity adjustment
Pump speed
r/min
1350
1350
1350
Average injection quantity
mm3/st.
13.8
11.8
15.8
Difference in delivery
mm3/st.
4
Basic
*
Oil temperature
degC
50
48
52
Injection quantity adjustment_02
Pump speed
r/min
1450
1450
1450
Average injection quantity
mm3/st.
3
Oil temperature
degC
50
48
52
Injection quantity adjustment_03
Pump speed
r/min
1350
1350
1350
Average injection quantity
mm3/st.
13.8
10.3
17.3
Difference in delivery
mm3/st.
4.5
Basic
*
Oil temperature
degC
50
48
52
Governor adjustment
Pump speed
r/min
475
475
475
Average injection quantity
mm3/st.
8.2
6.2
10.2
Difference in delivery
mm3/st.
2
Basic
*
Oil temperature
degC
48
46
50
Governor adjustment_02
Pump speed
r/min
475
475
475
Average injection quantity
mm3/st.
8.2
5.7
10.7
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
48
46
50
Timer adjustment
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
59.1
54.1
64.1
Basic
*
Oil temperature
degC
48
46
50
Remarks
Full
Full
Timer adjustment_02
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
59.1
54.1
64.1
Oil temperature
degC
48
46
50
Remarks
Full
Full
Speed control lever angle
Pump speed
r/min
475
475
475
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF at idling position
Magnet OFF at idling position
0000000901
Pump speed
r/min
800
800
800
Overflow quantity
cm3/min
420
290
550
Oil temperature
degC
50
48
52
Stop lever angle
Pump speed
r/min
800
800
800
Pressure
kPa
549
520
578
Pressure
kgf/cm2
5.6
5.3
5.9
Basic
*
Oil temperature
degC
50
48
52
Stop lever angle_02
Pump speed
r/min
600
600
600
Pressure
kPa
500
451
549
Pressure
kgf/cm2
5.1
4.6
5.6
Oil temperature
degC
50
48
52
Stop lever angle_03
Pump speed
r/min
800
800
800
Pressure
kPa
549
510
588
Pressure
kgf/cm2
5.6
5.2
6
Basic
*
Oil temperature
degC
50
48
52
Stop lever angle_04
Pump speed
r/min
1000
1000
1000
Pressure
kPa
598
549
647
Pressure
kgf/cm2
6.1
5.6
6.6
Oil temperature
degC
50
48
52
Stop lever angle_05
Pump speed
r/min
1100
1100
1100
Pressure
kPa
628
579
677
Pressure
kgf/cm2
6.4
5.9
6.9
Oil temperature
degC
50
48
52
Stop lever angle_06
Pump speed
r/min
1250
1250
1250
Pressure
kPa
647
598
696
Pressure
kgf/cm2
6.6
6.1
7.1
Oil temperature
degC
50
48
52
0000001101
Pump speed
r/min
800
800
800
Timer stroke
mm
1.6
1.4
1.8
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
600
600
600
Timer stroke
mm
0.6
0
1.2
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
800
800
800
Timer stroke
mm
1.6
1.2
2
Basic
*
Oil temperature
degC
50
48
52
_04
Pump speed
r/min
1000
1000
1000
Timer stroke
mm
2.4
1.8
3
Oil temperature
degC
50
48
52
_05
Pump speed
r/min
1250
1250
1250
Timer stroke
mm
2.9
2.4
3.3
Oil temperature
degC
50
48
52
0000001201
Max. applied voltage
V
8
8
8
Test voltage
V
13
12
14
0000001401
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
40
39.5
40.5
Timer stroke TA
mm
1.4
1.2
1.6
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
1250
1250
1250
Average injection quantity
mm3/st.
46.5
40
50.5
Timer stroke TA
mm
2.9
2.4
3.3
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
1250
1250
1250
Average injection quantity
mm3/st.
33
32
34
Timer stroke TA
mm
1.5
0.5
2.5
Timer stroke variation dT
mm
1.4
1.4
1.4
Oil temperature
degC
50
48
52
Timing setting
K dimension
mm
3.3
3.2
3.4
KF dimension
mm
5.8
5.7
5.9
MS dimension
mm
1
0.9
1.1
Pre-stroke
mm
0.1
0.08
0.12
Control lever angle alpha
deg.
21.5
17.5
25.5
Control lever angle beta
deg.
29
24
34
Test data Ex:
0000001801 STARTING I/Q ADJUSTMENT

Starting Q decrease lever adjustment
Adjust using the screw (A) so that the standards are satisfied, then fix using the nut (B).
Screw (A) protrusion: L
(B) Nut (SW10, T1 after completing adjustment)
(C) Cap
(D) Stop lever
----------
L=7.4~11.1mm T1=6~9N-m(0.6~0.9kgf-m)
----------
L=7.4~11.1mm
----------
L=7.4~11.1mm T1=6~9N-m(0.6~0.9kgf-m)
----------
L=7.4~11.1mm
Information:
26Feb2020
U-93
A-70
D-86
O-82
Parts stock action only
PRODUCT IMPROVEMENT PROGRAM FOR INSPECTING AND POSSIBLY REMOVING CERTAIN 471-6029 DEF INJECTOR AND MOUNTING GROUPS FROM DEALER PARTS STOCK
108I 7750 PI70799
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
When submitting claim for Parts Stock Action, Use the appropriate 99Z as the s/n, the appropriate Service Letter Program Number as the Part number in the Part Causing Failure field, "7751" as the Group Number, "56" as the Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
31May2020
PROBLEM
A defined batch of existing 471-6029 DEF Injector and Mounting Groups can fail under certain conditions.
ACTION REQUIRED
Inspect all 471-6029 DEF Injector and Mounting Groups in dealer parts stock.
Open the packaging and visually inspect the DEF injector.
If the DEF injector's upper body molding mark is an A or B, then the DEF injector is acceptable to use. Repackage the DEF injector and mark the packaging as inspected per this program and place the part back into dealer parts stock.
If the DEF injector's upper body molding mark is a 1 or 2, then remove the part from dealer parts stock. Refer to the Parts Disposition.
Image 1 shows the molding marks and location.
SERVICE CLAIM ALLOWANCES
Submit one claim for all parts removed from dealer parts stock.
PARTS DISPOSITION
NACD:
Hold all 471-6029 DEF Injector and Mounting Groups removed from dealer parts stock for a Parts Return Request (PRR). A Parts Return Request (PRR) will be issued to you through the Send-It-Back process after the claim is submitted. Make sure to list the service letter program number on the packing slip and include the closed work order paperwork. Handle all other parts in accordance with your Warranty Bulletin on warranty parts handling.
If a Parts Return Request (PRR) is not issued to you after 30 days through the Send-It-Back process, handle the parts in accordance with your warranty bulletin on warranty parts handling.
EAME, LACD, and APD:
Hold all 471-6029 DEF Injector and Mounting Groups removed from dealer parts stock for 30 days for a possible Parts Return Request (PRR). Make sure to list the service letter program number on the packing slip and include the closed work order paperwork. Handle all other parts in accordance with your Warranty Bulletin on warranty parts handling.
If a Parts Return Request (PRR) is not issued to you after 30 days through the Send-It-Back process, handle the parts in accordance with your warranty bulletin on warranty parts handling.
Have questions with 104741-8132?
Group cross 104741-8132 ZEXEL
Mitsubishi-Heav
Mitsubishi
Mitsubishi-Heav
104741-8132
F 01G 09W 0FB
32A6520410
INJECTION-PUMP ASSEMBLY
S4S
S4S
