Information injection-pump assembly
BOSCH
9 460 614 966
9460614966
ZEXEL
104741-7330
1047417330
KOMATSU
6205711380
6205711380

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

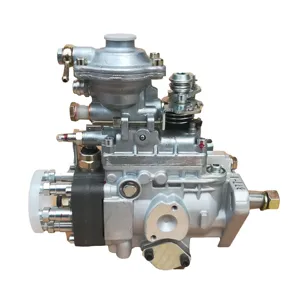

104641-7330 FUEL-INJECTION PUMP VE4/11F1100RNP2515 6205-71-1380 Compatible For Komatsu 4D95L
LCQBXGPU Long lifespan, stable and durable || Enhance power and solve oil leakage || Smooth start-up and improved fuel consumption || Excellent raw materials and advanced technology || 104641-7330 FUEL-INJECTION PUMP VE4/11F1100RNP2515 6205-71-1380 Compatible For Komatsu 4D95L
LCQBXGPU Long lifespan, stable and durable || Enhance power and solve oil leakage || Smooth start-up and improved fuel consumption || Excellent raw materials and advanced technology || 104641-7330 FUEL-INJECTION PUMP VE4/11F1100RNP2515 6205-71-1380 Compatible For Komatsu 4D95L

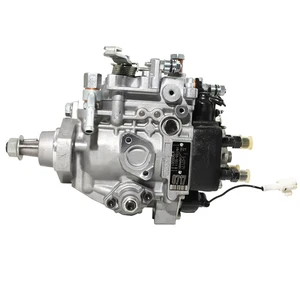

104641-7330 FUEL-INJECTION PUMP VE4/11F1100RNP2515 6205-71-1380 Compatible For Komatsu 4D95L
TWXLLDRM This fuel injection pump uses cutting-edge injection technology to realize ultra-fine atomization of fuel, greatly improving combustion efficiency, enabling the engine to release more powerful power and significantly improving response speed. || We insist on using aviation-grade high-strength materials, which have excellent high temperature resistance, high pressure resistance and wear resistance. From raw materials to many fine processes on the production line, every step exceeds the quality standards. || Our fuel injection pump provides accurate adaptation models, and in-depth research and development and testing are carried out for the matched models to ensure that the products can perfectly fit your car in terms of interfaces, dimensions, operating parameters and so on. || This fuel injection pump can accurately control the fuel injection quantity, whether on urban roads or at high speed, it can ensure that the engine can get accurate and appropriate fuel, effectively improve fuel utilization and reduce fuel consumption. || 104641-7330 FUEL-INJECTION PUMP VE4/11F1100RNP2515 6205-71-1380 Compatible For Komatsu 4D95L
TWXLLDRM This fuel injection pump uses cutting-edge injection technology to realize ultra-fine atomization of fuel, greatly improving combustion efficiency, enabling the engine to release more powerful power and significantly improving response speed. || We insist on using aviation-grade high-strength materials, which have excellent high temperature resistance, high pressure resistance and wear resistance. From raw materials to many fine processes on the production line, every step exceeds the quality standards. || Our fuel injection pump provides accurate adaptation models, and in-depth research and development and testing are carried out for the matched models to ensure that the products can perfectly fit your car in terms of interfaces, dimensions, operating parameters and so on. || This fuel injection pump can accurately control the fuel injection quantity, whether on urban roads or at high speed, it can ensure that the engine can get accurate and appropriate fuel, effectively improve fuel utilization and reduce fuel consumption. || 104641-7330 FUEL-INJECTION PUMP VE4/11F1100RNP2515 6205-71-1380 Compatible For Komatsu 4D95L
104641-7330 FUEL-INJECTION PUMP VE4/11F1100RNP2515 6205-71-1380 Compatible With Komatsu 4D95L
ZAIQUDOU Make sure the OE number matches the part you are replacing. || Easy to install: direct replacement, OEM standard, plug and play. Not just aftermarket replacements. || Efficient and stable: The use of advanced technology can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || Warranty period: 6 months. If there are any problems during this period, repair or replacement services will be provided. || Package includes: 1 piece jet pump
ZAIQUDOU Make sure the OE number matches the part you are replacing. || Easy to install: direct replacement, OEM standard, plug and play. Not just aftermarket replacements. || Efficient and stable: The use of advanced technology can provide efficient and stable fuel supply to ensure the normal operation of the vehicle. || Warranty period: 6 months. If there are any problems during this period, repair or replacement services will be provided. || Package includes: 1 piece jet pump
Components :
0. | INJECTION-PUMP ASSEMBLY | 104741-7330 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104641-7330 |
3. | NUMBER PLATE | 146984-3200 |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105119-4070 |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 19.6(200) |
10. | NOZZLE-HOLDER | 105048-4450 |
11. | NOZZLE | 105017-3450 |
Scheme ###:
1/6. | [1] | 146601-1100 | PACKING RING |
6. | [1] | 146100-0120 | SUPPLY PUMP |
9. | [1] | 146103-0000 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0820 | DRIVE SHAFT |
12/1. | [1] | 146200-0800 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-8820 | ROLLER SET |
24. | [1] | 146303-0000 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0301 | SLOTTED WASHER |
29. | [1] | 146220-2620 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146300-0100 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
33. | [1] | 146603-0700 | SHIM D17.5&7.5T0.60 |
34. | [1] | 146302-1900 | COMPRESSION SPRING K=2.25KG/MM |
35/1. | [0] | 146603-0700 | SHIM D17.5&7.5T0.60 |
35/1. | [0] | 146603-0800 | SHIM D17.5&7.5T0.70 |
35/1. | [0] | 146603-0900 | SHIM D17.5&7.5T0.90 |
35/1. | [0] | 146603-1000 | SHIM D17.5&7.5T1.00 |
35/1. | [0] | 146603-1100 | SHIM D17.5&7.5T1.20 |
35/1. | [0] | 146603-3600 | SHIM D17.5&7.5T2.40 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-0700 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-5100 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM D17&5.2T2.1 |
48/1. | [1] | 146690-5900 | SHIM D17&5.2T2.2 |
48/1. | [1] | 146690-6000 | SHIM D17&5.2T2.3 |
48/1. | [1] | 146690-6100 | SHIM D17&5.2T2.4 |
48/1. | [1] | 146690-6200 | SHIM D17&5.2T2.5 |
48/1. | [1] | 146690-6300 | SHIM D17&5.2T2.6 |
48/1. | [1] | 146690-6400 | SHIM D17&5.2T2.7 |
48/1. | [1] | 146690-6500 | SHIM D17&5.2T2.8 |
48/1. | [1] | 146690-6600 | SHIM D17&5.2T2.9 |
48/1. | [1] | 146690-6700 | SHIM D17&5.2T3.0 |
48/1. | [1] | 146690-6800 | SHIM D17&5.2T3.1 |
48/1. | [1] | 146690-6900 | SHIM D17&5.2T3.2 |
48/1. | [1] | 146690-7000 | SHIM D17&5.2T3.3 |
48/1. | [1] | 146690-7100 | SHIM D17&5.2T3.4 |
48/1. | [1] | 146690-7200 | SHIM D17&5.2T0.4 |
48/1. | [1] | 146690-7300 | SHIM D17&5.2T0.6 |
48/1. | [1] | 146690-7400 | SHIM D17&5.2T0.7 |
48/1. | [1] | 146690-7500 | SHIM D17&5.2T1.9 |
48/1. | [1] | 146690-7800 | SHIM D17&5.2T0.2 |
49. | [2] | 146234-0600 | GUIDE PIN |
50. | [1] | 146402-3420 | HYDRAULIC HEAD |
50. | [1] | 146402-3420 | HYDRAULIC HEAD |
50. | [1] | 146402-3420 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
55. | [4] | 146430-6020 | DELIVERY-VALVE ASSEMBLY |
56. | [4] | 146432-0200 | COMPRESSION SPRING |
58. | [4] | 146440-0220 | FITTING |
60. | [4] | 139106-0100 | FLAT-HEAD SCREW |
67. | [1] | 146821-9720 | GOVERNOR COVER |
67/1. | [1] | 146508-1022 | GOVERNOR COVER |
67/2. | [1] | 146515-0220 | CONTROL SHAFT |
67/3. | [1] | 146600-0100 | O-RING |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/5. | [1] | 146530-0000 | CONTROL LEVER |
67/5B. | [1] | 146530-0100 | CONTROL LEVER |
67/5C. | [1] | 146832-1500 | CONTROL LEVER |
67/5D. | [1] | 146832-1600 | CONTROL LEVER |
67/6. | [2] | 014110-6440 | LOCKING WASHER |
67/6. | [2] | 014110-6440 | LOCKING WASHER |
67/7. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/8. | [1] | 146515-1820 | LEVER SHAFT |
67/9. | [1] | 146587-4600 | COILED SPRING |
67/10. | [1] | 146600-0200 | O-RING |
67/11. | [1] | 146602-0100 | PLAIN WASHER D14&10.1T1.50 |
67/12. | [1] | 146540-1300 | CONTROL LEVER |
67/12B. | [1] | 146540-1400 | CONTROL LEVER MARK:0 |
67/12C. | [1] | 146540-5200 | CONTROL LEVER |
67/12D. | [1] | 146540-5300 | CONTROL LEVER |
67/13. | [1] | 146621-1700 | UNION NUT |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-2800 | BLEEDER SCREW |
67/16. | [1] | 146526-2800 | BLEEDER SCREW |
67/18. | [1] | 146587-2000 | COILED SPRING |
67/19. | [1] | 146541-0000 | ANGLE PIECE |
67/25. | [2] | 013020-6040 | UNION NUT M6P1H5 |
67/25. | [2] | 013020-6040 | UNION NUT M6P1H5 |
67/26. | [1] | 139006-4800 | BLEEDER SCREW |
67/78. | [1] | 146600-4400 | SEAL RING |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-4600 | THREADED PIN L=24MM |
67/201B. | [1] | 146545-4700 | THREADED PIN L=26MM |
67/201C. | [1] | 146545-4800 | THREADED PIN L=28MM |
67/201D. | [1] | 146545-5000 | THREADED PIN |
67/202. | [1] | 146598-5000 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
67/204. | [1] | 146545-4500 | DAMPER |
95. | [1] | 146871-4720 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0520 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER D20&8.4T1.40 |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-2600 | PLAIN WASHER D34&13T1.0 |
115. | [1] | 146976-2400 | SLIDING SLEEVE |
116. | [1] | 146576-0400 | CAP |
117/1. | [1] | 146877-0820 | PLUG L=5.0 |
117/1. | [1] | 146877-0920 | PLUG L=5.1 |
117/1. | [1] | 146877-1020 | PLUG |
117/1. | [1] | 146877-1120 | PLUG |
117/1. | [1] | 146877-1220 | PLUG |
117/1. | [1] | 146877-1320 | PLUG |
117/1. | [1] | 146877-1420 | PLUG |
117/1. | [1] | 146877-1520 | PLUG |
117/1. | [1] | 146877-1620 | PLUG |
117/1. | [1] | 146877-1720 | PLUG |
117/1. | [1] | 146877-1820 | PLUG |
117/1. | [1] | 146877-1920 | PLUG |
117/1. | [1] | 146877-2020 | PLUG |
117/1. | [1] | 146877-2120 | PLUG |
117/1. | [1] | 146877-2220 | PLUG |
117/1. | [1] | 146877-2320 | PLUG |
117/1. | [1] | 146877-2420 | PLUG |
117/1. | [1] | 146877-2520 | PLUG |
117/1. | [1] | 146877-2620 | PLUG |
117/1. | [1] | 146877-2720 | PLUG |
117/1. | [1] | 146877-2820 | PLUG |
117/1. | [1] | 146877-2920 | PLUG |
117/1. | [1] | 146877-3020 | PLUG |
117/1. | [1] | 146877-3120 | PLUG |
117/1. | [1] | 146877-3220 | PLUG |
117/1. | [1] | 146877-3320 | PLUG |
117/1. | [1] | 146877-3420 | PLUG |
117/1. | [1] | 146877-3520 | PLUG |
117/1. | [1] | 146877-3620 | PLUG |
117/1. | [1] | 146877-3720 | PLUG |
117/1. | [1] | 146877-3820 | PLUG |
117/1. | [1] | 146877-3920 | PLUG |
117/1. | [1] | 146877-4020 | PLUG |
117/1. | [1] | 146877-4120 | PLUG |
117/1. | [1] | 146877-4220 | PLUG |
120. | [1] | 146879-3920 | RETAINING PIN |
122. | [1] | 146580-2800 | GOVERNOR SPRING |
123. | [4] | 139106-0200 | FLAT-HEAD SCREW |
130. | [1] | 146421-1720 | CAPSULE |
130/2. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
130/3. | [1] | 146422-1001 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0220 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-0120 | OVER FLOW VALVE |
137. | [2] | 139512-0500 | GASKET |
205. | [1] | 029470-4030 | WOODRUFF KEY |
240. | [1] | 146650-1320 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146662-0120 | WIRE |
243. | [1] | 146621-1000 | UNION NUT |
245. | [3] | 139512-0500 | GASKET |
246. | [1] | 146125-0020 | EYE BOLT |
248. | [1] | 146614-0200 | SPACER BUSHING |
343. | [1] | 146598-8320 | CAP |
800S. | [1] | 146018-9720 | PUMP HOUSING |
800S/1/6. | [1] | 146601-1100 | PACKING RING |
804S. | [1] | 146232-1520 | COMPRESSION SPRING |
805S. | [1] | 146574-0320 | PARTS SET |
810S. | [1] | 146600-1120 | REPAIR SET |
821S. | [1] | 146210-5720 | ROLLER SET |
825S. | [1] | 146598-8120 | CAP |
835S. | [1] | 146598-7320 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
837S. | [1] | 146598-7310 | CAP |
906. | [1] | 146984-2600 | NAMEPLATE |
940. | [1] | 146598-7520 | CAP |
Include in #2:
104741-7330
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
9 460 614 966
9460614966
ZEXEL
104741-7330
1047417330
KOMATSU
6205711380
6205711380
Zexel num
Bosch num
Firm num
Name
104741-7330
9 460 614 966
6205711380 KOMATSU
INJECTION-PUMP ASSEMBLY
S4D95L K 11CJ INJECTION PUMP ASSY VE4 VE
S4D95L K 11CJ INJECTION PUMP ASSY VE4 VE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113orSAEJ967d
1404 Test oil ISO4113orSAEJ967d
Test oil temperature
degC
45
45
50
Nozzle
105780-0060
Bosch type code
NP-DN0SD1510
Nozzle holder
105780-2150
Opening pressure
MPa
13
13
13.3
Opening pressure
kgf/cm2
133
133
136
Injection pipe
157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450
Inside diameter - outside diameter - length (mm) mm 2-6-450
Joint assembly
157641-4720
Tube assembly
157641-4020
Transfer pump pressure
kPa
20
20
20
Transfer pump pressure
kgf/cm2
0.2
0.2
0.2
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
88.6
88.1
89.1
Difference in delivery
mm3/st.
7
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_02
Pump speed
r/min
500
500
500
Average injection quantity
mm3/st.
58.1
54.1
62.1
Oil temperature
degC
48
46
50
Injection timing adjustment_03
Pump speed
r/min
800
800
800
Average injection quantity
mm3/st.
86.1
82.1
90.1
Oil temperature
degC
50
48
52
Injection timing adjustment_04
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
88.6
87.6
89.6
Difference in delivery
mm3/st.
7.5
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_05
Pump speed
r/min
1100
1100
1100
Average injection quantity
mm3/st.
88.4
84.4
92.4
Oil temperature
degC
50
48
52
Injection quantity adjustment
Pump speed
r/min
1225
1225
1225
Average injection quantity
mm3/st.
58
54
62
Difference in delivery
mm3/st.
7
Basic
*
Oil temperature
degC
50
48
52
Injection quantity adjustment_02
Pump speed
r/min
1350
1350
1350
Average injection quantity
mm3/st.
6
Oil temperature
degC
50
48
52
Injection quantity adjustment_03
Pump speed
r/min
1225
1225
1225
Average injection quantity
mm3/st.
58
53.5
62.5
Basic
*
Oil temperature
degC
50
48
52
Governor adjustment
Pump speed
r/min
400
400
400
Average injection quantity
mm3/st.
9
7
11
Difference in delivery
mm3/st.
2
Basic
*
Oil temperature
degC
48
46
50
Governor adjustment_02
Pump speed
r/min
400
400
400
Average injection quantity
mm3/st.
9
6.5
11.5
Difference in delivery
mm3/st.
2
Basic
*
Oil temperature
degC
48
46
50
Timer adjustment
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
93.2
88.2
98.2
Basic
*
Oil temperature
degC
48
46
50
Remarks
IDLE
IDLE
Timer adjustment_02
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
93.2
88.2
98.2
Oil temperature
degC
48
46
50
Remarks
IDLE
IDLE
Speed control lever angle
Pump speed
r/min
400
400
400
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF at idling position
Magnet OFF at idling position
0000000901
Pump speed
r/min
1100
1100
1100
Overflow quantity
cm3/min
400
270
530
Oil temperature
degC
50
48
52
Stop lever angle
Pump speed
r/min
1100
1100
1100
Pressure
kPa
441
421
461
Pressure
kgf/cm2
4.5
4.3
4.7
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
Stop lever angle_02
Pump speed
r/min
1100
1100
1100
Pressure
kPa
441
412
470
Pressure
kgf/cm2
4.5
4.2
4.8
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
0000001101
Pump speed
r/min
1100
1100
1100
Timer stroke
mm
1
0.8
1.2
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
_02
Pump speed
r/min
1100
1100
1100
Timer stroke
mm
1
0.7
1.3
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
_03
Pump speed
r/min
1200
1200
1200
Timer stroke
mm
1.8
0.3
3.3
Oil temperature
degC
50
48
52
0000001201
Max. applied voltage
V
16
16
16
Test voltage
V
25
24
26
0000001401
Pump speed
r/min
800
800
800
Average injection quantity
mm3/st.
26.8
25.8
27.8
Timer stroke TA
mm
1.3
1
1.6
Timer stroke variation dT
mm
1.3
1.3
1.3
Basic
*
Oil temperature
degC
50
48
52
Remarks
Reverse operation
Reverse operation
_02
Pump speed
r/min
800
800
800
Average injection quantity
mm3/st.
26.8
25.3
28.3
Timer stroke TA
mm
1.3
0.9
1.7
Timer stroke variation dT
mm
1.3
1.3
1.3
Basic
*
Oil temperature
degC
50
48
52
Remarks
Reverse operation
Reverse operation
_03
Pump speed
r/min
800
800
800
Average injection quantity
mm3/st.
21.5
19.5
23.5
Timer stroke TA
mm
2
2
Timer stroke variation dT
mm
2
2
Oil temperature
degC
50
48
52
Remarks
Reverse operation
Reverse operation
Timing setting
K dimension
mm
3.1
3
3.2
KF dimension
mm
5.5
5.4
5.6
MS dimension
mm
1.7
1.6
1.8
Pre-stroke
mm
0.45
0.43
0.47
Control lever angle alpha
deg.
16
12
20
Control lever angle beta
deg.
32
27
37
Test data Ex:
0000001801 STOP LEVER ADJUSTMENT

Adjustment of the stop lever
(1)Adjust the starting injection quantity adjusting bolt (B) so that the starting injection quantity is as specified.
(2)Fix using the lock nut.
(A) = starting injection quantity adjusting nut
(C) = starting injection quantity adjusting lever
(D) = adjusting position L:
----------
----------
L=7~13mm T=6~9N-m{0.6~0.9kgf-m}
----------
----------
L=7~13mm T=6~9N-m{0.6~0.9kgf-m}
Information:
PARTS NEEDED
Qty
Part Number Description
1 4609257 INJECTOR AS-DEF
1 5398400 SFWR GP-A1000
1 BULK_COOLANT COOLANT (MAX 1 GALLON)
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 2% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Ensure that all safety information, warnings, and instructions are read and understood before any operation or any maintenance procedures are performed. Refer to the Operation and Maintenance Manual "Safety Section".
1. Remove the existing DEF injector assembly and replace with a new 460-9257 DEF Injector Assembly. Refer to UENR4468, Disassembly and Assembly, to remove and install the new DEF Injector Assembly.
2. Update the engine software. Reflash the engine controller (ECM) with the 539-8400 Software Group or latest available on SIS Web.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-3000 hrs,
0-36 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
3001-5000 hrs,
37-60 mo 100.0% 0.0% 0.0% 0.0% 0.0% 100.0%
This is a 2.0-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
Have questions with 104741-7330?
Group cross 104741-7330 ZEXEL
Komatsu
104741-7330
9 460 614 966
6205711380
INJECTION-PUMP ASSEMBLY
S4D95L
S4D95L
