Information injection-pump assembly
BOSCH
9 460 614 476
9460614476
ZEXEL
104741-7271
1047417271
KOMATSU
6205711360
6205711360

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

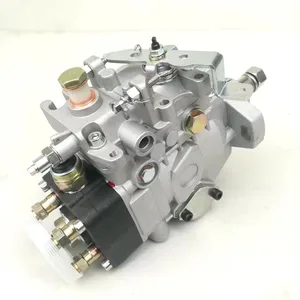

WBFRYEE Diesel Fuel Injection Pump 104641-7271 104741-7271 6205-71-1360 NP-VE4/11F1300RNP2489 Compatible with Komatsu
WBFRYEE The fuel injection pump needs to be maintained, and the filter screen, sealing ring and other vulnerable parts should be replaced regularly to ensure normal operation. || The fuel injection pump needs to cooperate with the engine control unit (ECU) to achieve accurate control and adjustment. || The working pressure of pressure pump is usually hundreds or thousands of bars, the specific value depends on the engine model and design requirements. || The injector will control the injection according to the engine load || The working state of fuel injection pump will directly affect the power and fuel economy of the engine.
WBFRYEE The fuel injection pump needs to be maintained, and the filter screen, sealing ring and other vulnerable parts should be replaced regularly to ensure normal operation. || The fuel injection pump needs to cooperate with the engine control unit (ECU) to achieve accurate control and adjustment. || The working pressure of pressure pump is usually hundreds or thousands of bars, the specific value depends on the engine model and design requirements. || The injector will control the injection according to the engine load || The working state of fuel injection pump will directly affect the power and fuel economy of the engine.
Diesel High Pressure Fuel Pump 104641-7271,6205-71-1360,6205711360 Compatible With KOMATSU
WAGXONUS 1. High pressure resistance: automotive high pressure fuel pump is made of corrosion-resistant material, resistant to high pressure impact and wear, long service life. || 2. Comfort and safety: the engine high-pressure fuel injection pump operates stably under high pressure, providing a smooth driving experience without the risk of leakage or rupture. || 3. adapt to reliable: automotive pressure fuel pump is stable and reliable, adapt to various road conditions, ensure engine efficiency, reduce failure. || 4.Lightweight: High pressure fuel pump small size, light weight, flexible installation, low cost and cost-effective. || Diesel High Pressure Fuel Pump 104641-7271,6205-71-1360,6205711360 Compatible With KOMATSU
WAGXONUS 1. High pressure resistance: automotive high pressure fuel pump is made of corrosion-resistant material, resistant to high pressure impact and wear, long service life. || 2. Comfort and safety: the engine high-pressure fuel injection pump operates stably under high pressure, providing a smooth driving experience without the risk of leakage or rupture. || 3. adapt to reliable: automotive pressure fuel pump is stable and reliable, adapt to various road conditions, ensure engine efficiency, reduce failure. || 4.Lightweight: High pressure fuel pump small size, light weight, flexible installation, low cost and cost-effective. || Diesel High Pressure Fuel Pump 104641-7271,6205-71-1360,6205711360 Compatible With KOMATSU
Diesel Fuel Injection Pump 104641-7271 104741-7271 6205-71-1360 NP-VE4/11F1300RNP2489 Compatible For KOMATSU
VSQQGPSV Through high-precision pressure, fuel can be fully atomized, promoting complete combustion and improving fuel economy. || High precision manufacturing processes ensure the accuracy of fuel metering and injection. || Excellent design minimizes noise and vibration during operation, providing you with a quieter and more comfortable driving experience. || A good fuel injection pump is crucial for engine power, fuel efficiency, and fuel economy. || Diesel Fuel Injection Pump 104641-7271 104741-7271 6205-71-1360 NP-VE4/11F1300RNP2489 Compatible For KOMATSU
VSQQGPSV Through high-precision pressure, fuel can be fully atomized, promoting complete combustion and improving fuel economy. || High precision manufacturing processes ensure the accuracy of fuel metering and injection. || Excellent design minimizes noise and vibration during operation, providing you with a quieter and more comfortable driving experience. || A good fuel injection pump is crucial for engine power, fuel efficiency, and fuel economy. || Diesel Fuel Injection Pump 104641-7271 104741-7271 6205-71-1360 NP-VE4/11F1300RNP2489 Compatible For KOMATSU
Components :
0. | INJECTION-PUMP ASSEMBLY | 104741-7271 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104641-7270 |
3. | NUMBER PLATE | 146984-0800 |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | 105119-4070 |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | 19.6(200) |
10. | NOZZLE-HOLDER | 105048-4450 |
11. | NOZZLE | 105017-3450 |
Scheme ###:
1/6. | [1] | 146601-1100 | PACKING RING |
6. | [1] | 146100-0120 | SUPPLY PUMP |
6. | [1] | 146100-0120 | SUPPLY PUMP |
9. | [1] | 146103-0000 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0820 | DRIVE SHAFT |
12/1. | [1] | 146200-0800 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-8820 | ROLLER SET |
24. | [1] | 146303-0000 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0300 | SLOTTED WASHER |
29. | [1] | 146220-2620 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146300-0100 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
33. | [1] | 146603-0700 | SHIM D17.5&7.5T0.60 |
34. | [1] | 146302-1900 | COMPRESSION SPRING K=2.25KG/MM |
35/1. | [0] | 146603-0700 | SHIM D17.5&7.5T0.60 |
35/1. | [0] | 146603-0800 | SHIM D17.5&7.5T0.70 |
35/1. | [0] | 146603-0900 | SHIM D17.5&7.5T0.90 |
35/1. | [0] | 146603-1000 | SHIM D17.5&7.5T1.00 |
35/1. | [0] | 146603-1100 | SHIM D17.5&7.5T1.20 |
35/1. | [0] | 146603-3600 | SHIM D17.5&7.5T2.40 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-0700 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-5100 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM D17&5.2T2.1 |
48/1. | [1] | 146690-5900 | SHIM D17&5.2T2.2 |
48/1. | [1] | 146690-6000 | SHIM D17&5.2T2.3 |
48/1. | [1] | 146690-6100 | SHIM D17&5.2T2.4 |
48/1. | [1] | 146690-6200 | SHIM D17&5.2T2.5 |
48/1. | [1] | 146690-6300 | SHIM D17&5.2T2.6 |
48/1. | [1] | 146690-6400 | SHIM D17&5.2T2.7 |
48/1. | [1] | 146690-6500 | SHIM D17&5.2T2.8 |
48/1. | [1] | 146690-6600 | SHIM D17&5.2T2.9 |
48/1. | [1] | 146690-6700 | SHIM D17&5.2T3.0 |
48/1. | [1] | 146690-6800 | SHIM D17&5.2T3.1 |
48/1. | [1] | 146690-6900 | SHIM D17&5.2T3.2 |
48/1. | [1] | 146690-7000 | SHIM D17&5.2T3.3 |
48/1. | [1] | 146690-7100 | SHIM D17&5.2T3.4 |
48/1. | [1] | 146690-7200 | SHIM D17&5.2T0.4 |
48/1. | [1] | 146690-7300 | SHIM D17&5.2T0.6 |
48/1. | [1] | 146690-7400 | SHIM D17&5.2T0.7 |
48/1. | [1] | 146690-7500 | SHIM D17&5.2T1.9 |
48/1. | [1] | 146690-7800 | SHIM D17&5.2T0.2 |
49. | [2] | 146234-0600 | GUIDE PIN |
50. | [1] | 146402-3420 | HYDRAULIC HEAD |
50. | [1] | 146402-3420 | HYDRAULIC HEAD |
50. | [1] | 146402-3420 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
55. | [4] | 146430-6020 | DELIVERY-VALVE ASSEMBLY |
56. | [4] | 146432-0200 | COMPRESSION SPRING |
58. | [4] | 146440-0220 | FITTING |
60. | [4] | 139106-0100 | FLAT-HEAD SCREW |
67. | [1] | 146821-9720 | GOVERNOR COVER |
67/1. | [1] | 146508-1022 | GOVERNOR COVER |
67/2. | [1] | 146515-0220 | CONTROL SHAFT |
67/3. | [1] | 146600-0100 | O-RING |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/5. | [1] | 146530-0000 | CONTROL LEVER |
67/5B. | [1] | 146530-0100 | CONTROL LEVER |
67/5C. | [1] | 146832-1500 | CONTROL LEVER |
67/5D. | [1] | 146832-1600 | CONTROL LEVER |
67/6. | [2] | 014110-6440 | LOCKING WASHER |
67/7. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/8. | [1] | 146515-1820 | LEVER SHAFT |
67/9. | [1] | 146587-4600 | COILED SPRING |
67/10. | [1] | 146600-0200 | O-RING |
67/11. | [1] | 146602-0100 | PLAIN WASHER D14&10.1T1.50 |
67/12. | [1] | 146540-1300 | CONTROL LEVER |
67/12B. | [1] | 146540-1400 | CONTROL LEVER |
67/13. | [1] | 146621-1700 | UNION NUT |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-2800 | BLEEDER SCREW |
67/16. | [1] | 146526-2800 | BLEEDER SCREW |
67/18. | [1] | 146587-2000 | COILED SPRING |
67/19. | [1] | 146541-0000 | ANGLE PIECE |
67/25. | [2] | 013020-6040 | UNION NUT M6P1H5 |
67/26. | [1] | 139006-4800 | BLEEDER SCREW |
67/78. | [1] | 146600-4400 | SEAL RING |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-4600 | THREADED PIN |
67/201B. | [1] | 146545-4700 | THREADED PIN |
67/201C. | [1] | 146545-4800 | THREADED PIN |
67/202. | [1] | 146598-5000 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
67/204. | [1] | 146545-4500 | DAMPER |
95. | [1] | 146871-4720 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0520 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER D20&8.4T1.40 |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-2600 | PLAIN WASHER D34&13T1.0 |
115. | [1] | 146976-1600 | SLIDING SLEEVE |
116. | [1] | 146576-0400 | CAP |
117/1. | [1] | 146877-0820 | PLUG |
117/1. | [1] | 146877-0920 | PLUG |
117/1. | [1] | 146877-1020 | PLUG |
117/1. | [1] | 146877-1120 | PLUG |
117/1. | [1] | 146877-1220 | PLUG |
117/1. | [1] | 146877-1320 | PLUG |
117/1. | [1] | 146877-1420 | PLUG |
117/1. | [1] | 146877-1520 | PLUG |
117/1. | [1] | 146877-1620 | PLUG |
117/1. | [1] | 146877-1720 | PLUG |
117/1. | [1] | 146877-1820 | PLUG |
117/1. | [1] | 146877-1920 | PLUG |
117/1. | [1] | 146877-2020 | PLUG |
117/1. | [1] | 146877-2120 | PLUG |
117/1. | [1] | 146877-2220 | PLUG |
117/1. | [1] | 146877-2320 | PLUG |
117/1. | [1] | 146877-2420 | PLUG |
117/1. | [1] | 146877-2520 | PLUG |
117/1. | [1] | 146877-2620 | PLUG |
117/1. | [1] | 146877-2720 | PLUG |
117/1. | [1] | 146877-2820 | PLUG |
117/1. | [1] | 146877-2920 | PLUG |
117/1. | [1] | 146877-3020 | PLUG |
117/1. | [1] | 146877-3120 | PLUG |
117/1. | [1] | 146877-3220 | PLUG |
117/1. | [1] | 146877-3320 | PLUG |
117/1. | [1] | 146877-3420 | PLUG |
117/1. | [1] | 146877-3520 | PLUG |
117/1. | [1] | 146877-3620 | PLUG |
117/1. | [1] | 146877-3720 | PLUG |
117/1. | [1] | 146877-3820 | PLUG |
117/1. | [1] | 146877-3920 | PLUG |
117/1. | [1] | 146877-4020 | PLUG |
117/1. | [1] | 146877-4120 | PLUG |
117/1. | [1] | 146877-4220 | PLUG |
120. | [1] | 146879-3920 | RETAINING PIN |
122. | [1] | 146580-3700 | GOVERNOR SPRING |
123. | [4] | 139106-0200 | FLAT-HEAD SCREW |
130. | [1] | 146421-1720 | CAPSULE |
130/2. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
130/3. | [1] | 146422-1001 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0220 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-0120 | OVER FLOW VALVE |
137. | [2] | 029341-2140 | GASKET |
205. | [1] | 029470-4030 | WOODRUFF KEY |
240. | [1] | 146650-1220 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146662-1420 | WIRE |
243. | [1] | 146621-1000 | UNION NUT |
245. | [3] | 029341-2140 | GASKET |
246. | [1] | 146125-0020 | EYE BOLT |
248. | [1] | 146614-0200 | SPACER BUSHING |
343. | [1] | 146598-8320 | CAP |
800S. | [1] | 146018-9720 | PUMP HOUSING |
800S/1/6. | [1] | 146601-1100 | PACKING RING |
804S. | [1] | 146232-1520 | COMPRESSION SPRING |
805S. | [1] | 146574-0120 | PARTS SET |
810S. | [1] | 146600-1120 | REPAIR SET |
821S. | [1] | 146210-5720 | ROLLER SET |
825S. | [1] | 146598-8120 | CAP |
835S. | [1] | 146598-7320 | CAP |
835S. | [1] | 146598-7320 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
837S. | [1] | 146598-7310 | CAP |
906. | [1] | 146984-0800 | NAMEPLATE |
Include in #2:
104741-7271
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
9 460 614 476
9460614476
ZEXEL
104741-7271
1047417271
KOMATSU
6205711360
6205711360
Zexel num
Bosch num
Firm num
Name
104741-7271
9 460 614 476
6205711360 KOMATSU
INJECTION-PUMP ASSEMBLY
S4D95L K 11CJ INJECTION PUMP ASSY VE4 VE
S4D95L K 11CJ INJECTION PUMP ASSY VE4 VE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113orSAEJ967d
1404 Test oil ISO4113orSAEJ967d
Test oil temperature
degC
45
45
50
Nozzle
105780-0060
Bosch type code
NP-DN0SD1510
Nozzle holder
105780-2150
Opening pressure
MPa
13
13
13.3
Opening pressure
kgf/cm2
133
133
136
Injection pipe
157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450
Inside diameter - outside diameter - length (mm) mm 2-6-450
Joint assembly
157641-4720
Tube assembly
157641-4020
Transfer pump pressure
kPa
20
20
20
Transfer pump pressure
kgf/cm2
0.2
0.2
0.2
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
88.6
88.1
89.1
Difference in delivery
mm3/st.
7
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_02
Pump speed
r/min
500
500
500
Average injection quantity
mm3/st.
58.1
54.1
62.1
Oil temperature
degC
48
46
50
Injection timing adjustment_03
Pump speed
r/min
800
800
800
Average injection quantity
mm3/st.
86.1
82.1
90.1
Oil temperature
degC
50
48
52
Injection timing adjustment_04
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
88.6
87.6
89.6
Difference in delivery
mm3/st.
7.5
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_05
Pump speed
r/min
1300
1300
1300
Average injection quantity
mm3/st.
82.7
78.7
86.7
Oil temperature
degC
50
48
52
Injection quantity adjustment
Pump speed
r/min
1400
1400
1400
Average injection quantity
mm3/st.
52.6
48.6
56.6
Difference in delivery
mm3/st.
7
Basic
*
Oil temperature
degC
50
48
52
Injection quantity adjustment_02
Pump speed
r/min
1525
1525
1525
Average injection quantity
mm3/st.
6
Oil temperature
degC
50
48
52
Injection quantity adjustment_03
Pump speed
r/min
1400
1400
1400
Average injection quantity
mm3/st.
52.6
48.1
57.1
Basic
*
Oil temperature
degC
50
48
52
Governor adjustment
Pump speed
r/min
400
400
400
Average injection quantity
mm3/st.
9
7
11
Difference in delivery
mm3/st.
2
Basic
*
Oil temperature
degC
48
46
50
Governor adjustment_02
Pump speed
r/min
400
400
400
Average injection quantity
mm3/st.
9
6.5
11.5
Difference in delivery
mm3/st.
2
Basic
*
Oil temperature
degC
48
46
50
Timer adjustment
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
93.2
88.2
98.2
Basic
*
Oil temperature
degC
48
46
50
Remarks
IDLE
IDLE
Timer adjustment_02
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
93.2
88.2
98.2
Oil temperature
degC
48
46
50
Remarks
IDLE
IDLE
Speed control lever angle
Pump speed
r/min
400
400
400
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF at idling position
Magnet OFF at idling position
0000000901
Pump speed
r/min
1300
1300
1300
Overflow quantity
cm3/min
400
270
530
Oil temperature
degC
50
48
52
Stop lever angle
Pump speed
r/min
1300
1300
1300
Pressure
kPa
490
470
510
Pressure
kgf/cm2
5
4.8
5.2
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
Stop lever angle_02
Pump speed
r/min
1300
1300
1300
Pressure
kPa
490
461
519
Pressure
kgf/cm2
5
4.7
5.3
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
0000001101
Pump speed
r/min
1300
1300
1300
Timer stroke
mm
2.1
1.9
2.3
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
_02
Pump speed
r/min
1100
1100
1100
Timer stroke
mm
1
0.5
1.5
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
1300
1300
1300
Timer stroke
mm
2.1
1.8
2.4
Basic
*
Oil temperature
degC
50
48
52
Remarks
Full
Full
_04
Pump speed
r/min
1425
1425
1425
Timer stroke
mm
4.1
3.4
4.8
Oil temperature
degC
50
48
52
0000001201
Max. applied voltage
V
8
8
8
Test voltage
V
13
12
14
0000001401
Pump speed
r/min
800
800
800
Average injection quantity
mm3/st.
26.8
25.8
27.8
Timer stroke TA
mm
1.3
1
1.6
Timer stroke variation dT
mm
1.3
1.3
1.3
Basic
*
Oil temperature
degC
50
48
52
Remarks
Reverse operation
Reverse operation
_02
Pump speed
r/min
800
800
800
Average injection quantity
mm3/st.
26.8
25.3
28.3
Timer stroke TA
mm
1.3
0.9
1.7
Timer stroke variation dT
mm
1.3
1.3
1.3
Basic
*
Oil temperature
degC
50
48
52
Remarks
Reverse operation
Reverse operation
_03
Pump speed
r/min
800
800
800
Average injection quantity
mm3/st.
21.5
19.5
23.5
Timer stroke TA
mm
2
2
Timer stroke variation dT
mm
2
2
Oil temperature
degC
50
48
52
Remarks
Reverse operation
Reverse operation
Timing setting
K dimension
mm
3.1
3
3.2
KF dimension
mm
5.5
5.4
5.6
MS dimension
mm
1.7
1.6
1.8
Pre-stroke
mm
0.45
0.43
0.47
Control lever angle alpha
deg.
16
12
20
Control lever angle beta
deg.
32
27
37
Test data Ex:
0000001801 STOP LEVER ADJUSTMENT

Adjustment of the stop lever
(1)Adjust the starting injection quantity adjusting bolt (B) so that the starting injection quantity is as specified.
(2)Fix using the lock nut.
(A) = starting injection quantity adjusting nut
(C) = starting injection quantity adjusting lever
(D) = adjusting position L:
----------
----------
L=7~13mm T=6~9N-m{0.6~kgf-m}
----------
----------
L=7~13mm T=6~9N-m{0.6~kgf-m}
Information:
Start By:a. remove exhaust manifoldb. remove inlet manifoldc. remove fuel injection nozzle assembliesd. remove fuel filtere. remove water temperature regulatorf. remove cylinder head assembly 1. Put cylinder head assembly (1) in position on tool group (A). 2. Put compression on valve spring (2) with tool (C). 3. Remove spring locks (3). 4. Remove tool (C). Remove valve spring cap (2) and valve springs (4). 5. Remove washer (5) and O-ring seal (8) from valve (7).6. Remove seal (6). Remove valve (7). 7. Check the valve spring tension with tool (B). The outer spring force must be 180 9 N (40 2 lb.). The length of the spring under test force must be 27.4 mm (1.08 in.). The free length after test must be 45.2 mm (1.78 in.). The inner spring force must be 68.5 9 N (15.4 2 lb.). The length of the spring under test force must be 23.88 mm (.940 in.). The length after test must be 39.6 mm (1.56 in.).8. Do Steps 1 through 8 again for the remainder of the valves. If the cylinder head is equipped with removable valve guides, refer to module SENB8082-06, System Operating Testing And Adjusting Specifications, 4.236 And 4.2482 Diesel Engines For Lift Trucks.Install Valves
1. Put clean engine oil on the valve stems.2. Install valve (3), washer (2) and seal (1).
The closed coil of the spring must be toward the cylinder head.
3. Install springs (5) and valve spring cap (4). 4. Use tool (A), and put springs under compression, and install O-ring seal on the valve. Exhaust valves have an extra O-ring seal on them.
Locks (6) can be thrown from the valve when tool (A) is released if they are not in their correct position on the valve stem.
5. Use tool (B), and install locks (6) that hold the springs in place.6. Remove tool (A), and hit the top of the valve with a plastic hammer to be sure the locks are in their correct position on the valve.7. Do Steps 1 through 6 again for the remainder of the valves.End By:a. install cylinder head assemblyb. install water temperature regulatorc. install fuel filterd. install fuel injection nozzle assembliese. install inlet manifold
1. Put clean engine oil on the valve stems.2. Install valve (3), washer (2) and seal (1).
The closed coil of the spring must be toward the cylinder head.
3. Install springs (5) and valve spring cap (4). 4. Use tool (A), and put springs under compression, and install O-ring seal on the valve. Exhaust valves have an extra O-ring seal on them.
Locks (6) can be thrown from the valve when tool (A) is released if they are not in their correct position on the valve stem.
5. Use tool (B), and install locks (6) that hold the springs in place.6. Remove tool (A), and hit the top of the valve with a plastic hammer to be sure the locks are in their correct position on the valve.7. Do Steps 1 through 6 again for the remainder of the valves.End By:a. install cylinder head assemblyb. install water temperature regulatorc. install fuel filterd. install fuel injection nozzle assembliese. install inlet manifold
Have questions with 104741-7271?
Group cross 104741-7271 ZEXEL
Komatsu
Tata
Komatsu
Komatsu
104741-7271
9 460 614 476
6205711360
INJECTION-PUMP ASSEMBLY
S4D95L
S4D95L
