Information injection-pump assembly
BOSCH
9 460 614 138
9460614138
ZEXEL
104741-3950
1047413950
MITSUBISHI-HEAV
32C6500210
32c6500210
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

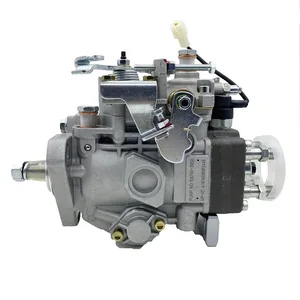

104641-3950 32C65-00210 VE Injector Pumps Diesel Zexel Fuel Injection Pump,Compatible for mitsubishi S4Q2 Engine
KCUHQWA Efficient fuel supply: It can accurately deliver diesel to the engine combustion chamber at high pressure, improving fuel utilization efficiency. || Precise injection: Ensure more precise timing and quantity of fuel injection, optimizing the combustion process. || Enhance power: Provide sufficient fuel pressure to the engine, allowing it to output stronger power. || Stability performance: The work is stable and reliable, ensuring that the engine can operate normally under various working conditions. || 104641-3950 32C65-00210 VE Injector Pumps Diesel Zexel Fuel Injection Pump,Compatible for mitsubishi S4Q2 Engine
KCUHQWA Efficient fuel supply: It can accurately deliver diesel to the engine combustion chamber at high pressure, improving fuel utilization efficiency. || Precise injection: Ensure more precise timing and quantity of fuel injection, optimizing the combustion process. || Enhance power: Provide sufficient fuel pressure to the engine, allowing it to output stronger power. || Stability performance: The work is stable and reliable, ensuring that the engine can operate normally under various working conditions. || 104641-3950 32C65-00210 VE Injector Pumps Diesel Zexel Fuel Injection Pump,Compatible for mitsubishi S4Q2 Engine

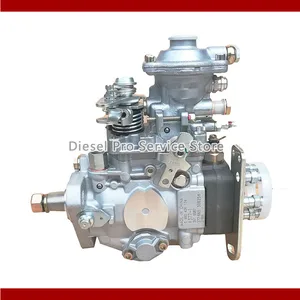

104641-3950 32C65-00210 VE Injector Pumps Diesel Zexel Fuel Injection Pump Compatible with S4Q2 Engine
LXXMZJT Quiet performance: EFI pumps are designed to reduce noise and vibration during operation and improve driving comfort || Easy maintenance: Fuel supply pumps are usually designed with easy installation and maintenance in mind, reducing operating costs || Strong adaptability: the fuel pump can adapt to different types of fuel, including gasoline, diesel, etc., to meet the needs of a variety of models || Strong fuel supply: The high pressure fuel pump can ensure that the fuel can be transported to the engine at sufficient pressure to improve the fuel combustion efficiency || 104641-3950 32C65-00210 VE Injector Pumps Diesel Zexel Fuel Injection Pump Compatible with S4Q2 Engine
LXXMZJT Quiet performance: EFI pumps are designed to reduce noise and vibration during operation and improve driving comfort || Easy maintenance: Fuel supply pumps are usually designed with easy installation and maintenance in mind, reducing operating costs || Strong adaptability: the fuel pump can adapt to different types of fuel, including gasoline, diesel, etc., to meet the needs of a variety of models || Strong fuel supply: The high pressure fuel pump can ensure that the fuel can be transported to the engine at sufficient pressure to improve the fuel combustion efficiency || 104641-3950 32C65-00210 VE Injector Pumps Diesel Zexel Fuel Injection Pump Compatible with S4Q2 Engine
104641-3950 32C65-00210 VE Injector Pumps Diesel Zexel Fuel Injection Pump,Compatible for mitsubishi S4Q2 Engine
KCUHQWA Strong durability: usually made of sturdy materials and advanced manufacturing processes, with a long service life. || Wide adaptability: Suitable for diesel engines of different types and powers. || Energy conservation and emission reduction: By precisely controlling fuel injection, it helps to reduce exhaust emissions and fuel consumption. || High reliability: reduces the probability of engine failure caused by fuel supply issues. || 104641-3950 32C65-00210 VE Injector Pumps Diesel Zexel Fuel Injection Pump,Compatible for mitsubishi S4Q2 Engine
KCUHQWA Strong durability: usually made of sturdy materials and advanced manufacturing processes, with a long service life. || Wide adaptability: Suitable for diesel engines of different types and powers. || Energy conservation and emission reduction: By precisely controlling fuel injection, it helps to reduce exhaust emissions and fuel consumption. || High reliability: reduces the probability of engine failure caused by fuel supply issues. || 104641-3950 32C65-00210 VE Injector Pumps Diesel Zexel Fuel Injection Pump,Compatible for mitsubishi S4Q2 Engine
Components :
0. | INJECTION-PUMP ASSEMBLY | 104741-3950 |
1. | _ | |
2. | FUEL INJECTION PUMP | 104641-3950 |
3. | NUMBER PLATE | 146989-3400 |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | |
10. | NOZZLE-HOLDER | |
11. | NOZZLE |
Scheme ###:
1/6. | [1] | 146601-0900 | PACKING RING |
6. | [1] | 146100-0420 | SUPPLY PUMP |
9. | [1] | 146103-0100 | COVER |
10. | [2] | 139104-0000 | FLAT-HEAD SCREW |
12. | [1] | 146200-0020 | DRIVE SHAFT |
12/1. | [1] | 146200-0000 | DRIVE SHAFT |
12/2. | [1] | 146201-0000 | WOODRUFF KEY |
12/3. | [2] | 146202-0100 | DAMPER |
12/4. | [1] | 146203-0000 | TOOTHED GEAR |
17. | [1] | 146204-0000 | PLAIN WASHER |
20. | [1] | 146210-2320 | ROLLER SET |
24. | [1] | 146303-0000 | BEARING PIN |
25. | [1] | 146304-0000 | BEARING PIN |
26. | [1] | 146305-0000 | CLAMPING BAND |
27. | [1] | 146205-0000 | SLOTTED WASHER |
29. | [1] | 146220-4820 | CAM PLATE |
30. | [1] | 146600-0800 | O-RING |
31. | [1] | 146311-5620 | PUMP PLUNGER |
32. | [1] | 146301-0000 | SLIDING PIECE |
34. | [1] | 146312-6700 | COMPRESSION SPRING |
34B. | [1] | 146312-6800 | COMPRESSION SPRING |
34C. | [1] | 146312-6900 | COMPRESSION SPRING |
35/1. | [1] | 146690-3200 | SHIM D11.5&9.4T0.1 |
35/1. | [1] | 146690-3300 | SHIM D11.5&9.4T0.2 |
35/1. | [1] | 146690-3400 | SHIM D11.5&9.4T0.25 |
35/1. | [1] | 146690-3500 | SHIM D11.5&9.4T1.0 |
35/1. | [1] | 146690-4100 | SHIM D11.5&9.4T2 |
35/1. | [1] | 146690-4200 | SHIM D11.5&9.4T0.5 |
35/1. | [1] | 146690-4300 | SHIM D11.5&9.4T0.75 |
36. | [1] | 146600-0800 | O-RING |
37. | [1] | 146310-4020 | COVER |
38. | [2] | 146620-5000 | BLEEDER SCREW |
39. | [1] | 146310-0100 | COVER |
40. | [2] | 146620-5000 | BLEEDER SCREW |
41. | [1] | 146312-1900 | COMPRESSION SPRING |
43. | [1] | 146230-0000 | SHIM |
44. | [1] | 146230-0100 | PLAIN WASHER |
45. | [1] | 146231-0001 | SLOTTED WASHER |
47. | [2] | 146233-0000 | SLOTTED WASHER |
48/1. | [1] | 146603-0000 | SHIM D17.0&5.2T0.50 |
48/1. | [1] | 146603-0100 | SHIM D17.0&5.2T0.80 |
48/1. | [1] | 146603-0200 | SHIM D17.0&5.2T1.00 |
48/1. | [1] | 146603-0300 | SHIM D17.0&5.2T1.20 |
48/1. | [1] | 146603-0400 | SHIM D17.0&5.2T1.50 |
48/1. | [1] | 146603-0500 | SHIM D17.0&5.2T1.80 |
48/1. | [1] | 146603-0600 | SHIM D17.0&5.2T2.00 |
48/1. | [1] | 146690-1400 | SHIM D17&5.2T0.9 |
48/1. | [1] | 146690-1500 | SHIM D17&5.2T1.1 |
48/1. | [1] | 146690-1600 | SHIM D17&5.2T1.3 |
48/1. | [1] | 146690-1700 | SHIM D17&5.2T1.4 |
48/1. | [1] | 146690-1800 | SHIM D17&5.2T1.6 |
48/1. | [1] | 146690-1900 | SHIM D17&5.2T1.7 |
48/1. | [1] | 146690-5800 | SHIM D17&5.2T2.1 |
48/1. | [1] | 146690-5900 | SHIM D17&5.2T2.2 |
48/1. | [1] | 146690-6000 | SHIM D17&5.2T2.3 |
48/1. | [1] | 146690-6100 | SHIM D17&5.2T2.4 |
48/1. | [1] | 146690-6200 | SHIM D17&5.2T2.5 |
48/1. | [1] | 146690-6300 | SHIM D17&5.2T2.6 |
48/1. | [1] | 146690-6400 | SHIM D17&5.2T2.7 |
48/1. | [1] | 146690-6500 | SHIM D17&5.2T2.8 |
48/1. | [1] | 146690-6600 | SHIM D17&5.2T2.9 |
48/1. | [1] | 146690-6700 | SHIM D17&5.2T3.0 |
48/1. | [1] | 146690-6800 | SHIM D17&5.2T3.1 |
48/1. | [1] | 146690-6900 | SHIM D17&5.2T3.2 |
48/1. | [1] | 146690-7000 | SHIM D17&5.2T3.3 |
48/1. | [1] | 146690-7100 | SHIM D17&5.2T3.4 |
48/1. | [1] | 146690-7200 | SHIM D17&5.2T0.4 |
48/1. | [1] | 146690-7300 | SHIM D17&5.2T0.6 |
48/1. | [1] | 146690-7400 | SHIM D17&5.2T0.7 |
48/1. | [1] | 146690-7500 | SHIM D17&5.2T1.9 |
48/1. | [1] | 146690-7800 | SHIM D17&5.2T0.2 |
49. | [2] | 146234-0600 | GUIDE PIN |
50. | [1] | 146401-4220 | HYDRAULIC HEAD |
50. | [1] | 146401-4220 | HYDRAULIC HEAD |
50. | [1] | 146401-4220 | HYDRAULIC HEAD |
51. | [1] | 146600-0000 | O-RING |
52/1. | [1] | 146420-0000 | SHIM D9.5&3.0T1.90 |
52/1. | [1] | 146420-0100 | SHIM D9.5&3.0T1.92 |
52/1. | [1] | 146420-0200 | SHIM D9.5&3.0T1.94 |
52/1. | [1] | 146420-0300 | SHIM D9.5&3.0T1.96 |
52/1. | [1] | 146420-0400 | SHIM D9.5&3.0T1.98 |
52/1. | [1] | 146420-0500 | SHIM D9.5&3.0T2.00 |
52/1. | [1] | 146420-0600 | SHIM D9.5&3.0T2.02 |
52/1. | [1] | 146420-0700 | SHIM D9.5&3.0T2.04 |
52/1. | [1] | 146420-0800 | SHIM D9.5&3.0T2.06 |
52/1. | [1] | 146420-0900 | SHIM D9.5&3.0T2.08 |
52/1. | [1] | 146420-1000 | SHIM D9.5&3.0T2.10 |
52/1. | [1] | 146420-1100 | SHIM D9.5&3.0T2.12 |
52/1. | [1] | 146420-1200 | SHIM D9.5&3.0T2.14 |
52/1. | [1] | 146420-1300 | SHIM D9.5&3.0T2.16 |
52/1. | [1] | 146420-1400 | SHIM D9.5&3.0T2.18 |
52/1. | [1] | 146420-1500 | SHIM D9.5&3.0T2.20 |
52/1. | [1] | 146420-1600 | SHIM D9.5&3.0T2.22 |
52/1. | [1] | 146420-1700 | SHIM D9.5&3.0T2.24 |
52/1. | [1] | 146420-1800 | SHIM D9.5&3.0T2.26 |
52/1. | [1] | 146420-1900 | SHIM D9.5&3.0T2.28 |
52/1. | [1] | 146420-2000 | SHIM D9.5&3.0T2.30 |
52/1. | [1] | 146420-2100 | SHIM D9.5&3.0T2.32 |
52/1. | [1] | 146420-2200 | SHIM D9.5&3.0T2.34 |
52/1. | [1] | 146420-2300 | SHIM D9.5&3.0T2.36 |
52/1. | [1] | 146420-2400 | SHIM D9.5&3.0T2.38 |
52/1. | [1] | 146420-2500 | SHIM D9.5&3.0T2.40 |
52/1. | [1] | 146420-2600 | SHIM D9.5&3.0T2.42 |
52/1. | [1] | 146420-2700 | SHIM D9.5&3.0T2.44 |
52/1. | [1] | 146420-2800 | SHIM D9.5&3.0T2.46 |
52/1. | [1] | 146420-2900 | SHIM D9.5&3.0T2.48 |
52/1. | [1] | 146420-3000 | SHIM D9.5&3.0T2.50 |
52/1. | [1] | 146420-3100 | SHIM D9.5&3.0T2.52 |
52/1. | [1] | 146420-3200 | SHIM D9.5&3.0T2.54 |
52/1. | [1] | 146420-3300 | SHIM D9.5&3.0T2.56 |
52/1. | [1] | 146420-3400 | SHIM D9.5&3.0T2.58 |
52/1. | [1] | 146420-3500 | SHIM D9.5&3.0T2.60 |
52/1. | [1] | 146420-3600 | SHIM D9.5&3.0T2.62 |
52/1. | [1] | 146420-3700 | SHIM D9.5&3.0T2.64 |
52/1. | [1] | 146420-3800 | SHIM D9.5&3.0T2.66 |
52/1. | [1] | 146420-3900 | SHIM D9.5&3.0T2.68 |
52/1. | [1] | 146420-4000 | SHIM D9.5&3.0T2.70 |
52/1. | [1] | 146420-4100 | SHIM D9.5&3.0T2.72 |
52/1. | [1] | 146420-4200 | SHIM D9.5&3.0T2.74 |
52/1. | [1] | 146420-4300 | SHIM D9.5&3.0T2.76 |
52/1. | [1] | 146420-4400 | SHIM D9.5&3.0T2.78 |
52/1. | [1] | 146420-4500 | SHIM D9.5&3.0T2.80 |
52/1. | [1] | 146420-4600 | SHIM D9.5&3.0T2.82 |
52/1. | [1] | 146420-4700 | SHIM D9.5&3.0T2.84 |
52/1. | [1] | 146420-4800 | SHIM D9.5&3.0T2.86 |
52/1. | [1] | 146420-4900 | SHIM D9.5&3.0T2.88 |
52/1. | [1] | 146420-5000 | SHIM D9.5&3.0T2.90 |
52/1. | [1] | 146420-5100 | SHIM D9.5&3.0T1.74 |
52/1. | [1] | 146420-5200 | SHIM D9.5&3.0T1.76 |
52/1. | [1] | 146420-5300 | SHIM D9.5&3.0T1.78 |
52/1. | [1] | 146420-5400 | SHIM D9.5&3.0T1.80 |
52/1. | [1] | 146420-5500 | SHIM D9.5&3.0T1.82 |
52/1. | [1] | 146420-5600 | SHIM D9.5&3.0T1.84 |
52/1. | [1] | 146420-5700 | SHIM D9.5&3.0T1.86 |
52/1. | [1] | 146420-5800 | SHIM D9.5&3.0T1.88 |
54. | [4] | 146433-0100 | GASKET D12&6.4T1.00 |
55. | [4] | 146430-2020 | DELIVERY-VALVE ASSEMBLY |
56. | [4] | 146432-0000 | COMPRESSION SPRING |
58. | [4] | 146440-0220 | FITTING |
60. | [3] | 139106-0100 | FLAT-HEAD SCREW |
67. | [1] | 146822-0120 | GOVERNOR COVER |
67/1. | [1] | 146508-1022 | GOVERNOR COVER |
67/2. | [1] | 146515-2520 | CONTROL SHAFT |
67/3. | [1] | 146600-0100 | O-RING |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/4. | [2] | 139310-0200 | PLAIN WASHER |
67/5. | [1] | 146832-5500 | CONTROL LEVER |
67/5B. | [1] | 146832-5600 | CONTROL LEVER |
67/6. | [2] | 014110-6440 | LOCKING WASHER |
67/6. | [2] | 014110-6440 | LOCKING WASHER |
67/7. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/8. | [1] | 146515-1820 | LEVER SHAFT |
67/9. | [1] | 146587-4500 | COILED SPRING |
67/10. | [1] | 146600-0200 | O-RING |
67/11. | [1] | 146602-0100 | PLAIN WASHER D14&10.1T1.50 |
67/12. | [1] | 146540-1300 | CONTROL LEVER |
67/12B. | [1] | 146540-1400 | CONTROL LEVER |
67/13. | [1] | 146621-1700 | UNION NUT |
67/14. | [1] | 146621-1700 | UNION NUT |
67/15. | [1] | 146526-2800 | BLEEDER SCREW |
67/16. | [1] | 146526-3400 | BLEEDER SCREW |
67/18. | [1] | 146587-0400 | COILED SPRING |
67/19. | [1] | 146541-0000 | ANGLE PIECE |
67/23. | [1] | 146925-2520 | BRACKET |
67/24. | [2] | 139006-4500 | BLEEDER SCREW |
67/25. | [1] | 013020-6040 | UNION NUT M6P1H5 |
67/78. | [1] | 146600-4400 | SEAL RING |
67/200. | [1] | 139308-0300 | PLAIN WASHER |
67/201. | [1] | 146545-3400 | THREADED PIN L53.00 |
67/201B. | [1] | 146545-3500 | THREADED PIN L55.00 |
67/201C. | [1] | 146545-3600 | THREADED PIN L57.00 |
67/202. | [1] | 139208-0900 | UNION NUT |
67/203. | [1] | 146600-1200 | O-RING |
95. | [1] | 146871-7320 | FULCRUM LEVER |
104. | [2] | 146568-0000 | SLOTTED SPRING PIN |
105. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
106. | [2] | 146588-0500 | COILED SPRING |
107. | [1] | 146569-0300 | UNION NUT |
108. | [1] | 146570-0420 | GOVERNOR SHAFT |
109. | [1] | 146600-0400 | O-RING |
110/1. | [1] | 146571-0000 | SHIM D20.2&8.3T1.05 |
110/1. | [1] | 146571-0100 | SHIM D20.2&8.3T1.25 |
110/1. | [1] | 146571-0200 | SHIM D20.2&8.3T1.45 |
110/1. | [1] | 146571-0300 | SHIM D20.2&8.3T1.65 |
110/1. | [1] | 146571-0400 | SHIM D20.2&8.3T1.85 |
110/1. | [1] | 146571-0500 | SHIM D20.2&8.3T1.15 |
110/1. | [1] | 146571-0600 | SHIM D20.2&8.3T1.35 |
110/1. | [1] | 146571-0700 | SHIM D20.2&8.3T1.55 |
110/1. | [1] | 146571-0800 | SHIM D20.2&8.3T1.75 |
111. | [1] | 146602-0600 | PLAIN WASHER D20&8.4T1.40 |
112. | [1] | 146572-0020 | FLYWEIGHT ASSEMBLY |
114. | [1] | 146602-2600 | PLAIN WASHER D34&13T1.0 |
115. | [1] | 146976-1500 | SLIDING SLEEVE |
116. | [1] | 146576-0200 | CAP |
117/1. | [1] | 146577-1800 | PLUG L2.10 |
117/1. | [1] | 146577-1900 | PLUG L2.30 |
117/1. | [1] | 146577-2000 | PLUG L2.50 |
117/1. | [1] | 146577-2100 | PLUG L2.70 |
117/1. | [1] | 146577-2200 | PLUG L2.90 |
117/1. | [1] | 146577-2300 | PLUG L3.10 |
117/1. | [1] | 146577-2400 | PLUG L3.30 |
117/1. | [1] | 146577-2500 | PLUG L3.50 |
117/1. | [1] | 146577-2600 | PLUG L3.70 |
117/1. | [1] | 146577-2700 | PLUG L3.90 |
117/1. | [1] | 146577-2800 | PLUG L4.10 |
117/1. | [1] | 146577-2900 | PLUG L4.30 |
117/1. | [1] | 146577-3000 | PLUG L4.50 |
117/1. | [1] | 146577-3100 | PLUG L4.70 |
117/1. | [1] | 146577-3200 | PLUG L4.90 |
117/1. | [1] | 146577-3300 | PLUG L5.10 |
117/1. | [1] | 146577-6700 | PLUG L2.2 |
117/1. | [1] | 146577-6800 | PLUG L2.4 |
117/1. | [1] | 146577-6900 | PLUG L2.6 |
117/1. | [1] | 146577-7000 | PLUG L2.8 |
117/1. | [1] | 146577-7100 | PLUG L3.0 |
117/1. | [1] | 146577-7200 | PLUG L3.2 |
117/1. | [1] | 146577-7300 | PLUG L3.4 |
117/1. | [1] | 146577-7400 | PLUG L3.6 |
117/1. | [1] | 146577-7500 | PLUG L3.8 |
117/1. | [1] | 146577-7600 | PLUG L4.0 |
117/1. | [1] | 146577-7700 | PLUG L4.2 |
117/1. | [1] | 146577-7800 | PLUG L4.4 |
117/1. | [1] | 146577-7900 | PLUG L4.6 |
117/1. | [1] | 146577-8000 | PLUG L4.8 |
117/1. | [1] | 146577-8100 | PLUG L5.0 |
117/1. | [1] | 146877-0000 | PLUG L5.2 |
117/1. | [1] | 146877-0100 | PLUG L5.3 |
117/1. | [1] | 146877-0200 | PLUG L5.4 |
117/1. | [1] | 146877-0300 | PLUG L5.5 |
117/1. | [1] | 146877-4700 | PLUG |
117/1. | [1] | 146877-4800 | PLUG |
117/1. | [1] | 146877-4900 | PLUG |
117/1. | [1] | 146877-5000 | PLUG |
120. | [1] | 146879-3420 | RETAINING PIN |
122. | [1] | 146580-3900 | GOVERNOR SPRING |
123. | [4] | 139106-0200 | FLAT-HEAD SCREW |
130. | [1] | 146421-0020 | CAPSULE |
130/2. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
130/3. | [1] | 146422-0000 | BLEEDER SCREW |
130/4. | [1] | 146600-0500 | O-RING |
133. | [1] | 146600-0600 | O-RING |
134. | [1] | 146600-0700 | O-RING |
135. | [1] | 146110-0220 | CONTROL VALVE |
135/5. | [1] | 146114-0000 | SPRING WASHER |
136. | [1] | 146120-0120 | OVER FLOW VALVE |
137. | [2] | 139512-0500 | GASKET |
200. | [1] | 146206-0100 | COILED SPRING |
235. | [1] | 146936-2300 | BRACKET |
236. | [2] | 010206-2240 | HEX-SOCKET-HEAD CAP SCREW |
237. | [1] | 146620-0200 | HEX-SOCKET-HEAD CAP SCREW |
240. | [1] | 146650-1220 | PULLING ELECTROMAGNET |
240/8. | [1] | 146600-1700 | O-RING |
242. | [1] | 146662-1420 | WIRE |
243. | [1] | 146621-4901 | UNION NUT |
245. | [1] | 139512-0500 | GASKET |
247. | [1] | 146669-1720 | INLET UNION |
251. | [1] | 146125-0101 | FILTER |
252. | [1] | 146125-0200 | COILED SPRING |
800S. | [1] | 146020-1820 | PUMP HOUSING |
800S/1/6. | [1] | 146601-0900 | PACKING RING |
804S. | [1] | 146232-0720 | COMPRESSION SPRING |
805S. | [1] | 146574-0320 | PARTS SET |
810S. | [1] | 146600-1120 | REPAIR SET |
821S. | [1] | 146210-5720 | ROLLER SET |
835S. | [1] | 146598-1000 | CAP |
836S/1. | [1] | 146598-0600 | CAP L18 |
836S/1. | [1] | 146598-0700 | CAP L21 |
836S/1. | [1] | 146598-0800 | CAP L24 |
836S/1. | [1] | 146598-0900 | CAP L27 |
900. | [1] | 146976-1520 | FLYWEIGHT ASSEMBLY |
906. | [1] | 146989-3400 | NAMEPLATE |
907. | [1] | 025803-1640 | WOODRUFF KEY |
908. | [1] | 013021-2140 | UNION NUT M12P1.75H10 |
909. | [1] | 014111-2440 | LOCKING WASHER D21.5&12.2T3 |
910S. | [1] | 146600-6020 | PARTS SET |
912S. | [1] | 026508-1140 | GASKET D11.4&8.2T1 |
913S. | [1] | 146422-0000 | BLEEDER SCREW |
914S. | [1] | 146699-0020 | VALVE SET |
915S. | [1] | 146662-1420 | WIRE |
916S. | [1] | 025803-1640 | WOODRUFF KEY |
921. | [1] | 146698-1320 | EYE BOLT |
Include in #2:
104741-3950
as INJECTION-PUMP ASSEMBLY
Cross reference number
BOSCH
9 460 614 138
9460614138
ZEXEL
104741-3950
1047413950
MITSUBISHI-HEAV
32C6500210
32c6500210
Zexel num
Bosch num
Firm num
Name
104741-3950
9 460 614 138
32C6500210 MITSUBISHI-HEAV
INJECTION-PUMP ASSEMBLY
S4Q2 K 11CJ INJECTION PUMP ASSY VE4 VE
S4Q2 K 11CJ INJECTION PUMP ASSY VE4 VE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113orSAEJ967d
1404 Test oil ISO4113orSAEJ967d
Test oil temperature
degC
45
45
50
Nozzle
105780-0060
Bosch type code
NP-DN0SD1510
Nozzle holder
105780-2150
Opening pressure
MPa
13
13
13.3
Opening pressure
kgf/cm2
133
133
136
Injection pipe
157805-7320
Injection pipe
Inside diameter - outside diameter - length (mm) mm 2-6-450
Inside diameter - outside diameter - length (mm) mm 2-6-450
Joint assembly
157641-4720
Tube assembly
157641-4020
Transfer pump pressure
kPa
20
20
20
Transfer pump pressure
kgf/cm2
0.2
0.2
0.2
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Pump speed
r/min
950
950
950
Average injection quantity
mm3/st.
42.7
42.2
43.2
Difference in delivery
mm3/st.
4
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_02
Pump speed
r/min
500
500
500
Average injection quantity
mm3/st.
40.1
36.1
44.1
Oil temperature
degC
48
46
50
Injection timing adjustment_03
Pump speed
r/min
800
800
800
Average injection quantity
mm3/st.
43.4
39.4
47.4
Oil temperature
degC
50
48
52
Injection timing adjustment_04
Pump speed
r/min
950
950
950
Average injection quantity
mm3/st.
42.7
41.7
43.7
Difference in delivery
mm3/st.
4.5
Basic
*
Oil temperature
degC
50
48
52
Injection timing adjustment_05
Pump speed
r/min
1400
1400
1400
Average injection quantity
mm3/st.
36.1
32.1
40.1
Oil temperature
degC
50
48
52
Injection quantity adjustment
Pump speed
r/min
1500
1500
1500
Average injection quantity
mm3/st.
20.3
18.3
22.3
Difference in delivery
mm3/st.
4.5
Basic
*
Oil temperature
degC
50
48
52
Injection quantity adjustment_02
Pump speed
r/min
1650
1650
1650
Average injection quantity
mm3/st.
3
Oil temperature
degC
50
48
52
Injection quantity adjustment_03
Pump speed
r/min
1500
1500
1500
Average injection quantity
mm3/st.
20.3
16.8
23.8
Difference in delivery
mm3/st.
5
Basic
*
Oil temperature
degC
50
48
52
Governor adjustment
Pump speed
r/min
500
500
500
Average injection quantity
mm3/st.
10
8
12
Difference in delivery
mm3/st.
2
Basic
*
Oil temperature
degC
48
46
50
Governor adjustment_02
Pump speed
r/min
500
500
500
Average injection quantity
mm3/st.
10
7.5
12.5
Difference in delivery
mm3/st.
2.5
Basic
*
Oil temperature
degC
48
46
50
Timer adjustment
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
46.5
41.5
51.5
Basic
*
Oil temperature
degC
48
46
50
Remarks
Full
Full
Timer adjustment_02
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
46.5
41.5
51.5
Oil temperature
degC
48
46
50
Remarks
Full
Full
Speed control lever angle
Pump speed
r/min
500
500
500
Average injection quantity
mm3/st.
0
0
0
Oil temperature
degC
48
46
50
Remarks
Magnet OFF at idling position
Magnet OFF at idling position
0000000901
Pump speed
r/min
1000
1000
1000
Overflow quantity
cm3/min
420
290
550
Oil temperature
degC
50
48
52
Stop lever angle
Pump speed
r/min
1000
1000
1000
Pressure
kPa
647
618
676
Pressure
kgf/cm2
6.6
6.3
6.9
Basic
*
Oil temperature
degC
50
48
52
0000001101
Pump speed
r/min
1000
1000
1000
Timer stroke
mm
2.5
2.3
2.7
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
750
750
750
Timer stroke
mm
1.5
0.9
2.1
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
1000
1000
1000
Timer stroke
mm
2.5
2.1
2.9
Basic
*
Oil temperature
degC
50
48
52
_04
Pump speed
r/min
1250
1250
1250
Timer stroke
mm
3.7
3.1
4.3
Oil temperature
degC
50
48
52
_05
Pump speed
r/min
1400
1400
1400
Timer stroke
mm
4.5
3.9
5.1
Oil temperature
degC
50
48
52
0000001201
Max. applied voltage
V
8
8
8
Test voltage
V
13
12
14
0000001401
Pump speed
r/min
1000
1000
1000
Average injection quantity
mm3/st.
33
32.5
33.5
Timer stroke TA
mm
1.1
0.9
1.3
Timer stroke variation dT
mm
1.4
1.4
1.4
Basic
*
Oil temperature
degC
50
48
52
_02
Pump speed
r/min
1400
1400
1400
Average injection quantity
mm3/st.
33.1
32.1
34.1
Timer stroke TA
mm
4.5
3.9
5.1
Timer stroke variation dT
mm
0
0
0
Oil temperature
degC
50
48
52
_03
Pump speed
r/min
1400
1400
1400
Average injection quantity
mm3/st.
26.7
25.7
27.7
Timer stroke TA
mm
2.3
1.3
3.3
Timer stroke variation dT
mm
2.2
2.2
2.2
Oil temperature
degC
50
48
52
Timing setting
K dimension
mm
3.3
3.2
3.4
KF dimension
mm
5.8
5.7
5.9
MS dimension
mm
2
1.9
2.1
Pre-stroke
mm
0.1
0.08
0.12
Control lever angle alpha
deg.
25
21
29
Control lever angle beta
deg.
27
22
32
Test data Ex:
0000001801 STARTING I/Q ADJUSTMENT
Starting Q decrease lever adjustment
Adjust using the screw (A) so that the standards are satisfied, then fix using the nut (B).
Screw (B) protrusion: L
(C) = Cap
(D) = Stop lever
----------
L=7.4~11.1mm
----------
L=7.4~11.1mm T=6~9N-m(0.6~0.9kgf-m)
----------
L=7.4~11.1mm
----------
L=7.4~11.1mm T=6~9N-m(0.6~0.9kgf-m)
Have questions with 104741-3950?
Group cross 104741-3950 ZEXEL
Mitsubishi
Mitsubishi
Mitsubishi-Heav
Mitsubishi
Mitsubishi-Heav
104741-3950
9 460 614 138
32C6500210
INJECTION-PUMP ASSEMBLY
S4Q2
S4Q2
