Information injection-pump assembly
BOSCH
9 400 612 993
9400612993
ZEXEL
101405-9342
1014059342
MITSUBISHI-HEAV
3426106010
3426106010
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

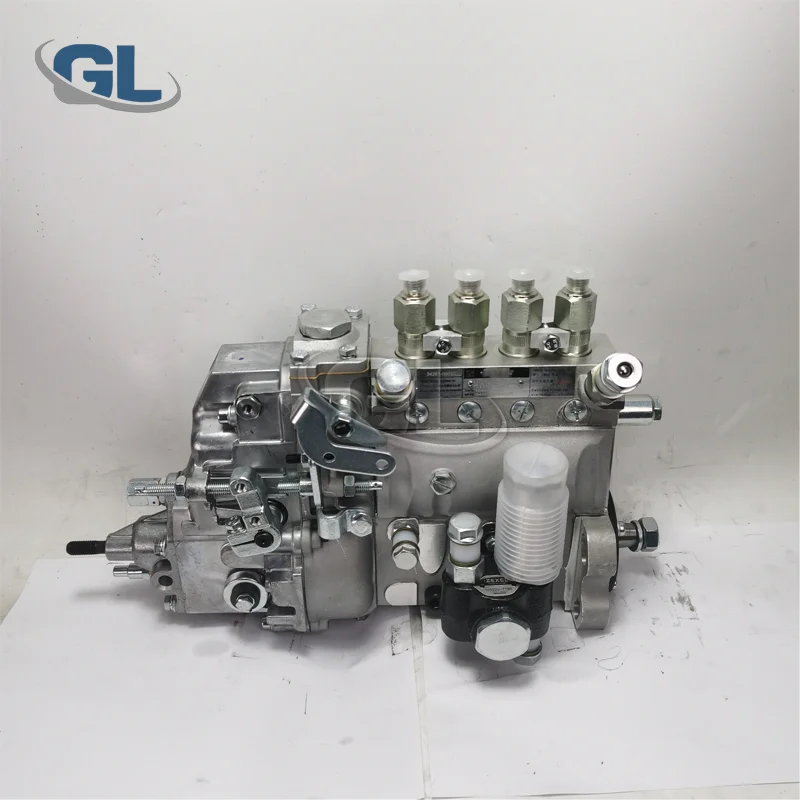

Meckparts Fuel Injection Pump 101405-9342 101040-4080 Compatible with Caterpillar Engine 3064 Compatible with Zexel
Meckparts Part Numbers: 101405-9342 101040-4080 1010404080 1014059342 34261-06010 3426106010 || Compatible with Caterpillar Engine 3064 Compatible with Zexel || Package Includes: 1 x Fuel Injection Pump || Easy To Install. Manufactured to Precise OE Requirements For Perfect Fit. Reliable Performance. || Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
Meckparts Part Numbers: 101405-9342 101040-4080 1010404080 1014059342 34261-06010 3426106010 || Compatible with Caterpillar Engine 3064 Compatible with Zexel || Package Includes: 1 x Fuel Injection Pump || Easy To Install. Manufactured to Precise OE Requirements For Perfect Fit. Reliable Performance. || Replacement Parts. As Good As OEM at a Fraction of the Price. Exact Same Performance as Original
Service parts 101405-9342 INJECTION-PUMP ASSEMBLY:
1.
_
5.
AUTOM. ADVANCE MECHANIS
6.
COUPLING PLATE
8.
_
9.
_
11.
Nozzle and Holder
12.
Open Pre:MPa(Kqf/cm2)
21.6{220}
15.
NOZZLE SET
Cross reference number
BOSCH
9 400 612 993
9400612993
ZEXEL
101405-9342
1014059342
MITSUBISHI-HEAV
3426106010
3426106010
Zexel num
Bosch num
Firm num
Name
101405-9342
9 400 612 993
3426106010 MITSUBISHI-HEAV
INJECTION-PUMP ASSEMBLY
S4K-T K 14BD INJECTION PUMP ASSY PE4AD PE
S4K-T K 14BD INJECTION PUMP ASSY PE4AD PE
Calibration Data:
Adjustment conditions
Test oil
1404 Test oil ISO4113 or {SAEJ967d}
1404 Test oil ISO4113 or {SAEJ967d}
Test oil temperature
degC
40
40
45
Nozzle and nozzle holder
105780-8140
Bosch type code
EF8511/9A
Nozzle
105780-0000
Bosch type code
DN12SD12T
Nozzle holder
105780-2080
Bosch type code
EF8511/9
Opening pressure
MPa
17.2
Opening pressure
kgf/cm2
175
Injection pipe
Outer diameter - inner diameter - length (mm) mm 6-2-600
Outer diameter - inner diameter - length (mm) mm 6-2-600
Overflow valve
131424-5720
Overflow valve opening pressure
kPa
255
221
289
Overflow valve opening pressure
kgf/cm2
2.6
2.25
2.95
Tester oil delivery pressure
kPa
255
255
255
Tester oil delivery pressure
kgf/cm2
2.6
2.6
2.6
Direction of rotation (viewed from drive side)
Right R
Right R
Injection timing adjustment
Direction of rotation (viewed from drive side)
Right R
Right R
Injection order
1-3-4-2
Pre-stroke
mm
3.5
3.45
3.55
Rack position
After adjusting injection quantity. R=A
After adjusting injection quantity. R=A
Beginning of injection position
Drive side NO.1
Drive side NO.1
Difference between angles 1
Cal 1-3 deg. 90 89.5 90.5
Cal 1-3 deg. 90 89.5 90.5
Difference between angles 2
Cal 1-4 deg. 180 179.5 180.5
Cal 1-4 deg. 180 179.5 180.5
Difference between angles 3
Cyl.1-2 deg. 270 269.5 270.5
Cyl.1-2 deg. 270 269.5 270.5
Injection quantity adjustment
Adjusting point
A
Rack position
9.1
Pump speed
r/min
975
975
975
Average injection quantity
mm3/st.
93.5
92.5
94.5
Max. variation between cylinders
%
0
-2.5
2.5
Basic
*
Fixing the lever
*
Injection quantity adjustment_02
Adjusting point
D
Rack position
6.8+-0.5
Pump speed
r/min
400
400
400
Average injection quantity
mm3/st.
12
10.7
13.3
Max. variation between cylinders
%
0
-10
10
Fixing the rack
*
Injection quantity adjustment_03
Adjusting point
E
Rack position
9.3++
Pump speed
r/min
100
100
100
Average injection quantity
mm3/st.
80
80
85
Fixing the lever
*
Rack limit
*
Test data Ex:
Governor adjustment
N:Pump speed
R:Rack position (mm)
(1)Target notch: K
(2)Tolerance for racks not indicated: +-0.05mm.
(3)RACK LIMIT
(4)Set idle sub-spring
(5)Main spring setting
(6)Rack difference between N = N1 and N = N2
----------
K=10 N1=975r/min N2=400r/min
----------
----------
K=10 N1=975r/min N2=400r/min
----------
Speed control lever angle
F:Full speed
I:Idle
S:Stop
----------
----------
a=17deg+-5deg b=0deg+-5deg c=31deg+-3deg
----------
----------
a=17deg+-5deg b=0deg+-5deg c=31deg+-3deg
Stop lever angle
N:Pump normal
S:Stop the pump.
(1)Use the hole at R = aa
(2)Speed = bb, rack position = cc (sealed at delivery)
(3)Normal
----------
aa=25mm bb=0r/min cc=1-0.5mm
----------
a=21deg+-5deg b=(55deg)
----------
aa=25mm bb=0r/min cc=1-0.5mm
----------
a=21deg+-5deg b=(55deg)
0000001501 I/P WITH LOAD PLUNGER ADJ
Load plunger-equipped pump adjustment
1. Adjust the variation between cylinders and the injection quantity.
2. At Full point A, adjust the pre-stroke to the specified value.
3. After pre-stroke adjustment, reconfirm that the fuel injection quantity and the variation between cylinders is as specified.
----------
----------
----------
----------
Timing setting
(1)Pump vertical direction
(2)Position of gear mark '3' at No 1 cylinder's beginning of injection
(3)B.T.D.C.: aa
(4)After adjusting the injection quantity, adjust at rack position bb.
----------
aa=6deg bb=9.1mm
----------
a=(110deg)
----------
aa=6deg bb=9.1mm
----------
a=(110deg)
