Information fuel-injection pump
BOSCH
9 410 617 322
9410617322
ZEXEL
104205-3090
1042053090
KUBOTA
1752951011
1752951011

Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

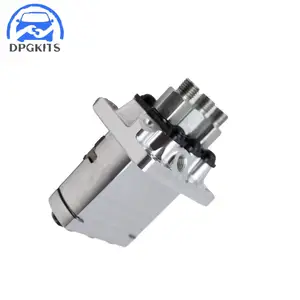

New Fuel Injection Pump Fits for Kubota Engine D722 RTV900G RTVX900R RTVX900W 9410617322
GSHLGAO Part Name: Fuel Injection Pump || Part Number:1752951011 1042053090 || Application: Suitable for use with the Kubota D722 Engine in models such as the RTV900G, RTVX900R, and RTVX900W. || Notification-The application information provided is for guidance purposes only. It is recommended to verify the part number and conduct a comparison with the old parts before making a purchase. Should you have any inquiries, please do not hesitate to contact us. || Premium Selection-This item boasts consistent performance, exceptional reliability, effortless installation, and rapid response times.
GSHLGAO Part Name: Fuel Injection Pump || Part Number:1752951011 1042053090 || Application: Suitable for use with the Kubota D722 Engine in models such as the RTV900G, RTVX900R, and RTVX900W. || Notification-The application information provided is for guidance purposes only. It is recommended to verify the part number and conduct a comparison with the old parts before making a purchase. Should you have any inquiries, please do not hesitate to contact us. || Premium Selection-This item boasts consistent performance, exceptional reliability, effortless installation, and rapid response times.
New Fuel Injection Pump Fits for Kubota Engine D722 RTV900G RTVX900R RTVX900W 9410617322 17529-51011 104205-3090
GSHLGAO Part Name: Fuel Injection Pump || Part Number:1752951011 1042053090 || Application: Suitable for use with the Kubota D722 Engine in models such as the RTV900G, RTVX900R, and RTVX900W. || Notification-The application information provided is for guidance purposes only. It is recommended to verify the part number and conduct a comparison with the old parts before making a purchase. Should you have any inquiries, please do not hesitate to contact us. || Premium Selection-This item boasts consistent performance, exceptional reliability, effortless installation, and rapid response times.
GSHLGAO Part Name: Fuel Injection Pump || Part Number:1752951011 1042053090 || Application: Suitable for use with the Kubota D722 Engine in models such as the RTV900G, RTVX900R, and RTVX900W. || Notification-The application information provided is for guidance purposes only. It is recommended to verify the part number and conduct a comparison with the old parts before making a purchase. Should you have any inquiries, please do not hesitate to contact us. || Premium Selection-This item boasts consistent performance, exceptional reliability, effortless installation, and rapid response times.
Components :
0. | INJECTION-PUMP ASSEMBLY | 104205-3090 |
1. | _ | |
2. | FUEL INJECTION PUMP | |
3. | NUMBER PLATE | |
4. | _ | |
5. | CAPSULE | |
6. | ADJUSTING DEVICE | |
7. | NOZZLE AND HOLDER ASSY | |
8. | Nozzle and Holder | |
9. | Open Pre:MPa(Kqf/cm2) | |
10. | NOZZLE-HOLDER | |
11. | NOZZLE |
Scheme ###:
5. | [3] | 140154-1720 | PLUNGER-AND-BARREL ASSY |
12. | [3] | 140110-4420 | DELIVERY-VALVE ASSEMBLY |
13. | [3] | 140112-2800 | COMPRESSION SPRING |
16. | [3] | 140115-2200 | GASKET D12.8&8.6T0.5 |
17. | [3] | 140116-7820 | FITTING |
20. | [3] | 016550-1220 | O-RING |
30. | [3] | 140131-0020 | FLANGE BUSHING |
31. | [3] | 140271-0000 | BEARING PIN |
32. | [6] | 016550-1620 | O-RING |
37. | [6] | 140124-0100 | FLAT-HEAD SCREW |
40. | [3] | 140200-2320 | TAPPET |
44. | [3] | 140212-0300 | BEARING PIN |
45. | [1] | 140213-0900 | LOCKING WASHER |
50. | [3] | 140215-2000 | COMPRESSION SPRING |
51. | [3] | 140216-1300 | SLOTTED WASHER |
52. | [3] | 140254-2900 | SLOTTED WASHER |
53/1. | [1] | 140254-1400 | PLATE T1.80 |
53/1. | [1] | 140254-1500 | PLATE T1.85 |
53/1. | [1] | 140254-1600 | PLATE T1.90 |
53/1. | [1] | 140254-1700 | PLATE T1.95 |
53/1. | [1] | 140254-1800 | PLATE T2.00 |
53/1. | [1] | 140254-1900 | PLATE T2.05 |
53/1. | [1] | 140254-2000 | PLATE T2.10 |
53/1. | [1] | 140254-2100 | PLATE T2.15 |
53/1. | [1] | 140254-2200 | PLATE T2.20 |
53/1. | [1] | 140254-2300 | PLATE T2.25 |
53/1. | [1] | 140254-2400 | PLATE T2.30 |
53/1. | [1] | 140254-2500 | PLATE T2.35 |
53/1. | [1] | 140254-2600 | PLATE T2.40 |
53/1. | [1] | 140254-2700 | PLATE T2.45 |
53/1. | [1] | 140254-2800 | PLATE T2.50 |
53/1. | [1] | 140254-3100 | PLATE T1.825 |
53/1. | [1] | 140254-3200 | PLATE T1.875 |
53/1. | [1] | 140254-3300 | PLATE T1.925 |
53/1. | [1] | 140254-3400 | PLATE T1.975 |
53/1. | [1] | 140254-3500 | PLATE T2.025 |
53/1. | [1] | 140254-3600 | PLATE T2.075 |
53/1. | [1] | 140254-3700 | PLATE T2.125 |
53/1. | [1] | 140254-3800 | PLATE T2.175 |
53/1. | [1] | 140254-3900 | PLATE T2.225 |
53/1. | [1] | 140254-4000 | PLATE T2.275 |
53/1. | [1] | 140254-4100 | PLATE T2.325 |
53/1. | [1] | 140254-4200 | PLATE T2.375 |
53/1. | [1] | 140254-4300 | PLATE T2.425 |
53/1. | [1] | 140254-4400 | PLATE T2.475 |
53/1. | [1] | 140254-4500 | PLATE T2.525 |
60. | [1] | 140243-3720 | CONTROL RACK |
65. | [1] | 140262-0500 | PLATE |
66. | [4] | 140252-0000 | FLAT-HEAD SCREW |
77. | [3] | 140241-4020 | CONTROL SLEEVE |
93. | [1] | 140402-3222 | EYE BOLT |
170. | [1] | 140405-0100 | CAPSULE |
171. | [1] | 026510-1340 | GASKET D13.4&10.2T1 |
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
7. Remove inner fuel lines (13). 8. Remove Jacobs washers (14) and Jacobs shims (15) from the Jacobs stud assemblies. 9. Remove bolt (17) and two Jacob stud assemblies (16) that hold the rocker shaft assembly to the head. Remove rocker shaft assembly (18). 10. Remove Jacobs exhaust valve bridges (20) from the exhaust valves only. The intake valves have the Caterpillar intake valve bridges. Remove the Caterpillar intake valve bridges (19).Install Jacobs Engine Brake
Do each step for each end of the engine. The front half is shown.1. Put clean engine oil on the bridges and dowels.2. Install Jacobs exhaust valve bridges (20) and the Caterpillar intake valve bridges (19) on the dowels.3. Keep hand pressure on the bridges, and turn the adjustment screw clockwise until contact is made with the valve stem. Turn the screw an extra 20° to 30°. This will make the dowel straight in the guide and compensate for gap (slack) in the threads. Hold the adjustment screw in this position, and tighten the locknut to a torque of 28 4 N m (21 3 lb.ft.). 4. Put rocket shaft assembly (18) in position on the cylinder head. 5. Install Jacobs washers (21) on the Jacobs stud assemblies (16). Put clean oil on the threads, and install washer and bolt (17) and Jacobs stud assemblies (16). Tighten the center bolt and Jacobs stud assemblies in increments of 70 N m (50 lb.ft.) each until a final torque of 450 N m (330 lb.ft.) is obtained.6. Make an adjustment to the valves to have a clearance of .015 (.038 mm) for the intake valves and .030 (0.76 mm) for the exhaust valves. Tighten the locknuts to a torque of 28 4 N m (21 3 lb.ft.), and check the valve clearance again. See Testing And Adjusting for the correct procedure. 7. Install a new Jacobs O-ring seal (22) on the Jacobs oil supply adapter in the rocker shaft assembly. Put clean oil on the Jacobs O-ring seal.
Do not cause damage to the O-ring seals on the inner fuel lines.
8. Install inner fuel lines (13). Tighten the fuel line nuts to a torque of 40 7 N m (30 5 lb.ft.) with tooling (A) and (B). The Jacobs brake for the 3406B Truck Engine has only one support bracket (11).9. Put Jacobs support brackets (11) in position as shown. Put oil on the threads of Jacobs bolts (12). Install the washers on the Jacobs bolts. Install Jacobs bolts (12) that hold the Jacobs support bracket in place. Tighten Jacobs bolts to a torque of 450 N m (330 lb.ft.). 10. Install Jacobs washers (14) on the Jacobs stud assemblies.
Be extra careful not to cause damage to the Jacobs oil supply adapter O-ring seal when the Jacobs brake housing assembly is installed.
The brake housing assembly with the mark "FRONT" on it must be installed on the front three cylinders. The brake housing assembly with the mark "REAR" must be install on
Do each step for each end of the engine. The front half is shown.1. Put clean engine oil on the bridges and dowels.2. Install Jacobs exhaust valve bridges (20) and the Caterpillar intake valve bridges (19) on the dowels.3. Keep hand pressure on the bridges, and turn the adjustment screw clockwise until contact is made with the valve stem. Turn the screw an extra 20° to 30°. This will make the dowel straight in the guide and compensate for gap (slack) in the threads. Hold the adjustment screw in this position, and tighten the locknut to a torque of 28 4 N m (21 3 lb.ft.). 4. Put rocket shaft assembly (18) in position on the cylinder head. 5. Install Jacobs washers (21) on the Jacobs stud assemblies (16). Put clean oil on the threads, and install washer and bolt (17) and Jacobs stud assemblies (16). Tighten the center bolt and Jacobs stud assemblies in increments of 70 N m (50 lb.ft.) each until a final torque of 450 N m (330 lb.ft.) is obtained.6. Make an adjustment to the valves to have a clearance of .015 (.038 mm) for the intake valves and .030 (0.76 mm) for the exhaust valves. Tighten the locknuts to a torque of 28 4 N m (21 3 lb.ft.), and check the valve clearance again. See Testing And Adjusting for the correct procedure. 7. Install a new Jacobs O-ring seal (22) on the Jacobs oil supply adapter in the rocker shaft assembly. Put clean oil on the Jacobs O-ring seal.
Do not cause damage to the O-ring seals on the inner fuel lines.
8. Install inner fuel lines (13). Tighten the fuel line nuts to a torque of 40 7 N m (30 5 lb.ft.) with tooling (A) and (B). The Jacobs brake for the 3406B Truck Engine has only one support bracket (11).9. Put Jacobs support brackets (11) in position as shown. Put oil on the threads of Jacobs bolts (12). Install the washers on the Jacobs bolts. Install Jacobs bolts (12) that hold the Jacobs support bracket in place. Tighten Jacobs bolts to a torque of 450 N m (330 lb.ft.). 10. Install Jacobs washers (14) on the Jacobs stud assemblies.
Be extra careful not to cause damage to the Jacobs oil supply adapter O-ring seal when the Jacobs brake housing assembly is installed.
The brake housing assembly with the mark "FRONT" on it must be installed on the front three cylinders. The brake housing assembly with the mark "REAR" must be install on
