Information injector assy
Rating:
Compare Prices: .
As an associate, we earn commssions on qualifying purchases through the links below

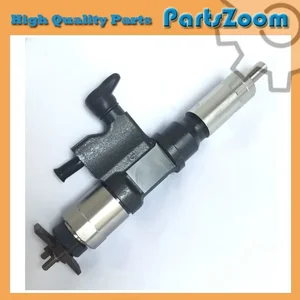

Common Rail Fuel Injector 095000-5000 095000-5001 for Isuzu 4HJ1 8-97306071-2 8973060712
Generic
Generic

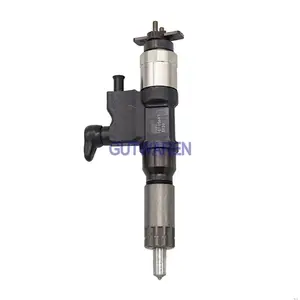

095000-5000 0950005000 Fuel Injector Suitable for Isuzu 4HJ1 Engine (6PCS)
CCXXMMYY Product Name:Fuel Injector || Product Number:095000-5000 0950005000 || Application:Suitable for Isuzu 4HJ1 Engine || Condition:New || Attention: Before placing an order, please compare its appearance, shape, size, and part number with your original equipment and ensure that it is suitable for your machine
CCXXMMYY Product Name:Fuel Injector || Product Number:095000-5000 0950005000 || Application:Suitable for Isuzu 4HJ1 Engine || Condition:New || Attention: Before placing an order, please compare its appearance, shape, size, and part number with your original equipment and ensure that it is suitable for your machine

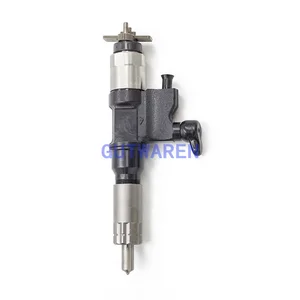

0950005000 095000-5000 6X Fuel Injector for Denso Isuzu 4HJ1 Engine
TUWODE Part Number: 950005000 095000-5000 || Item Type: Fuel Injector || Applicable Models: Fit for Denso Isuzu 4HJ1 Engine || Well-functioning fuel injectors ensure the correct air-fuel ratio, which is essential for minimizing harmful emissions. || Fuel is broken into fine droplets for optimal air mixing and enhanced combustion efficiency.
TUWODE Part Number: 950005000 095000-5000 || Item Type: Fuel Injector || Applicable Models: Fit for Denso Isuzu 4HJ1 Engine || Well-functioning fuel injectors ensure the correct air-fuel ratio, which is essential for minimizing harmful emissions. || Fuel is broken into fine droplets for optimal air mixing and enhanced combustion efficiency.
You can express buy:
USD 235
24-08-2024
24-08-2024
USD 13.29
13-11-2022
13-11-2022
DLLA156P799 093400-7990 common rail injector nozzle DLLA 156 P 799 for Denso Injector 095000-5000 ISUZU 4HJ1
USD 8.99
10-11-2022
10-11-2022
Images:
USD 100.9
[10-Nov-2022]
USD 280
[22-Oct-2018]
Components :
| 001. | INJECTOR ASSY | 09500-05000 |
| 001. | INJECTOR ASSY | 09500-05000 |
| 001. | INJECTOR ASSY | 09500-05000 |
| 001. | INJECTOR ASSY | 09500-05000 |
| 001. | INJECTOR ASSY | 09500-05000 |
| 001. | INJECTOR ASSY | 09500-05000 |
Scheme ###:
| 000. | [01] | 09500-05003 | INJECTOR ASSY | 1660089TC3 |
| 000. | [01] | 09500-05003 | INJECTOR ASSY | 1660089TD0 |
| 000. | [01] | 09500-05004 | INJECTOR ASSY | 1660089TD2 |
Cross reference number
| Part num | Firm num | Firm | Name |
| 09500-05000 | INJECTOR ASSY | ||
| 8-97306071-5 | ISUZU | INJECTOR ASSY | |
| 8-97306071-4 | ISUZU | INJECTOR ASSY | |
| 8-97306071-3 | ISUZU | INJECTOR ASSY | |
| 8-97306071-2 | ISUZU | INJECTOR ASSY | |
| 1660089TD2 | UD TRUCKS | INJECTOR ASSY | |
| 1660089TD2 | NISSAN MOTOR | INJECTOR ASSY | |
| 1660089TD0 | UD TRUCKS | INJECTOR ASSY | |
| 1660089TD0 | NISSAN MOTOR | INJECTOR ASSY | |
| 1660089TC3 | UD TRUCKS | INJECTOR ASSY | |
| 1660089TC3 | NISSAN MOTOR | INJECTOR ASSY |
Information:
Introduction
Do not perform any procedure in this Special Instruction until you read this information and you understand this information. This Special Instruction is intended for the installation of the 257-4183 Injector Wiring Harness Kit . The 257-4183 Injector Wiring Harness Kit can be used to repair fuel injector connectors.
Table 1
Required Tools
Tool Part Number Part Name Qty
A 9S-9150 Terminal Crimp Tool As 1
B 9U-6070 Heat Gun Gp 1 Removal of a Faulty Connector from the Wire Harness
The following steps can be used in order to remove a faulty connector for an injector on the wire harness that is located under the valve mechanism cover.
Identify the connector that needs to be replaced. Wiring for the injector solenoid is not sensitive to polarity.
Illustration 1 g01111254
Connector that is cut from the wire harness
Cut wire (1) at a distance of 70 mm (2.8 inch) from the rear surface of the connector.
Cut wire (2) at a distance of 65 mm (2.6 inch) from the rear surface of the connector.
Illustration 2 g01111314
(3) Wire from the harness for side (B) on the connector (4) Wire from the harness for side (A) on the connectorNote: The wires on the old connector are cut to length so that the wires on the wire harness will match up to the new connector. Cutting the wires to the proper length will aid in matching the harness wires to the wires on the new connector.
Discard the old connector.Installation of a New Connector
The following steps can be used in order to install a new connector for an injector on the wire harness that is located under the valve mechanism cover.
Use Tool (A) in order to remove 5 mm (0.2 inch) of the plastic from wires (3) and (4) .
Illustration 3 g01111333
Connecting the connector to the wire harness (A) Side (A) of the new connector (B) Side (B) of the new connector (3) Wire from the harness for side (B) on the new connector (4) Wire from the harness for side (A) on the new connector (5) Heat shrink tubes (6) Butt splice on the wire that is on side (A) of the new connector (7) Butt splice on the wire that is on side (B) of the new connector
Use heat shrink tubes (5) from the 257-4183 Injector Wiring Harness Kit . Slide the heat shrink tubes toward the connector in order to expose the butt splices.
Insert wire (4) into butt splice (6) .
Insert wire (3) into butt splice (7) .
Do not perform any procedure in this Special Instruction until you read this information and you understand this information. This Special Instruction is intended for the installation of the 257-4183 Injector Wiring Harness Kit . The 257-4183 Injector Wiring Harness Kit can be used to repair fuel injector connectors.
Table 1
Required Tools
Tool Part Number Part Name Qty
A 9S-9150 Terminal Crimp Tool As 1
B 9U-6070 Heat Gun Gp 1 Removal of a Faulty Connector from the Wire Harness
The following steps can be used in order to remove a faulty connector for an injector on the wire harness that is located under the valve mechanism cover.
Identify the connector that needs to be replaced. Wiring for the injector solenoid is not sensitive to polarity.
Illustration 1 g01111254
Connector that is cut from the wire harness
Cut wire (1) at a distance of 70 mm (2.8 inch) from the rear surface of the connector.
Cut wire (2) at a distance of 65 mm (2.6 inch) from the rear surface of the connector.
Illustration 2 g01111314
(3) Wire from the harness for side (B) on the connector (4) Wire from the harness for side (A) on the connectorNote: The wires on the old connector are cut to length so that the wires on the wire harness will match up to the new connector. Cutting the wires to the proper length will aid in matching the harness wires to the wires on the new connector.
Discard the old connector.Installation of a New Connector
The following steps can be used in order to install a new connector for an injector on the wire harness that is located under the valve mechanism cover.
Use Tool (A) in order to remove 5 mm (0.2 inch) of the plastic from wires (3) and (4) .
Illustration 3 g01111333
Connecting the connector to the wire harness (A) Side (A) of the new connector (B) Side (B) of the new connector (3) Wire from the harness for side (B) on the new connector (4) Wire from the harness for side (A) on the new connector (5) Heat shrink tubes (6) Butt splice on the wire that is on side (A) of the new connector (7) Butt splice on the wire that is on side (B) of the new connector
Use heat shrink tubes (5) from the 257-4183 Injector Wiring Harness Kit . Slide the heat shrink tubes toward the connector in order to expose the butt splices.
Insert wire (4) into butt splice (6) .
Insert wire (3) into butt splice (7) .
