Buy 09500-00213 INJECTOR ASSY Denso Cross




Information injector assy

09500-00213 INJECTOR ASSY
Rating:
57
Buy INJECTOR ASSY 09500-00213 genuine, new aftermarket engine parts with delivery

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below
$330.88

23 Dec 2024

CN: GSHLGAO Flagship sto
Compatible with Mitsubishi Engine 6M60 6M60T 6M60-T1 ME132615 ME302570 1pcs Fuel Injector 095000-0212 095000-0210 095000-1130
GSHLGAO Item Type: Fuel Injector || Part Numbers: 095000-0212 095000-0210 095000-0211 095000-0213 095000-0214 095000-1130 095000-1131 ME132615 ME302570 ME302571 ME132938 || Applicable Models: Suitable for use with Mitsubishi Engine models 6M60, 6M60T, and 6M60-T1. || Note: Please provide us with a physical address for delivery, whether it be your home or office address. P.O. box addresses are not accepted.
$688.09

28 Nov 2024
0.8818[0.40] Pounds
CN: zhengzhouyanghanshan
Compatible with 095000-0213 095000-0214 ME132615 ME302570 Engine 6M60 6M60T 6M60-T1 1pc Fuel Injector
JHXRBZR Part Number Reference: Compatible with 095000-0213, 095000-0214, ME132615, and ME302570. || Reliable Performance: Ensures fuel delivery for improved engine efficiency and performance. || Easy Installation: Direct replacement for effortless setup without modifications required. || Durability Assurance: Engineered for reliable use under various driving conditions. || Cost-effective Solution: An economical choice for maintaining your engine’s fuel system efficiency.
$329.79

26 Oct 2024

CN: QYWD

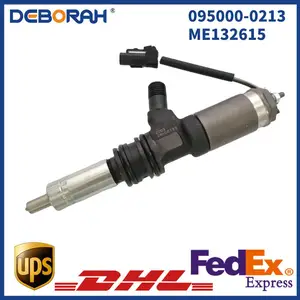

1X Fuel Injector Model 095000-0213 0950000213 for Mitsubishi 6M60 6M60T 6M60-T1 Engine
TUWODE Part Number: 095000-0213 950000213 || Item Type: Fuel Injector || Applicable Models: Fit for Mitsubishi 6M60 6M60T 6M60-T1 Engine || Well-functioning fuel injectors ensure the correct air-fuel ratio, which is essential for minimizing harmful emissions. || Fuel is broken into fine droplets for optimal air mixing and enhanced combustion efficiency.

Include in #3:

Number on scheme 000
INJECTOR ASSY
09500-00214 as INJECTOR ASSY

Cross reference number



Part num Firm num Firm Name
09500-00213  ME132615  INJECTOR ASSY




Information:

1. Locate top center (TC) compressing stroke for No. 1 piston. See LOCATING TOP CENTER COMPRESSION POSITION FOR NO. 1 PISTON in TESTING AND ADJUSTING. 2. Install the timing fixture plate (A), on the rear face of the accessory drive shaft housing.3. If the plate can be installed with the dowels in the accessory drive shaft housing aligned with the dowel holes in the plate, the accessory drive shaft is correctly timed. Proceed to Step 8. If the plate cannot be installed, continue with Step 4. 4. Remove the cover (1) from the front of the timing gear cover. Remove the accessory drive gear retaining nut and washer. 5. Using tool (B), separate the gear from the accessory drive shaft. Rotate the accessory drive shaft until the timing fixture plate (A) can be installed.6. Install the conical washer on the drive shaft with the O.D. in contact with the gear. Install and tighten the retaining nut to 100 10 lb. ft. (13,8 1,4 mkg). 7. Install the cover (1) on the timing gear cover, and remove the timing fixture plate.8. Position the fuel injection pump housing and governor on the engine, and install the mounting bolts.9. Connect the fuel injection lines and tighten the retaining nut to 30 5 lb. ft. (4,1 0,7 mkg).10. Connect the fuel ratio control sensing line.11. Connect the turbocharger oil supply line and clamp.12. Connect the governor control linkage.
When the governor control linkage is connected the spring tension must hold the governor control lever towards the OFF position.
Separate Governor From Fuel Injection Pump Housing
preparatory steps: a) remove fuel injection pump housing and governor as a unitb) remove fuel ratio control1. Remove idle screw housing plate assembly, and shut down solenoid. 2. Remove two retaining bolts (3) and remove the solenoid fuel shutoff lever (4).3. Remove the idle screw cover (1).4. Remove idle screw housing (2).5. Remove the rack stop collar retaining screw (7). 6. Remove the rack stop collar (5), collar (8), and spring (6).7. Remove the governor-to-fuel injection pump housing mounting bolts (9). 8. Remove the governor housing (10).9. Remove the governor spring (13), seat assembly (11), and washer-type spring. 10. Remove the three mounting bolts (12) and lock that secure the cylinder and weight assemblies (14) to the fuel injection pump housing.11. Pull the cylinder and weight assemblies straight out to clear locating dowels.12. Move the cylinder and weight assemblies sideways to disengage slot in piston from the rack (15).Connect Governor To Fuel Injection Pump Housing
1. Position the cylinder and weight assemblies (1) on the fuel injection pump housing so slot in piston is engaged with the rack (2).2. Push the cylinder and weight assemblies onto the locating dowels. 3. Install the three mounting bolts (5) and lock.4. Install the washer-type spring, seat assembly (4), and governor spring (6) on the cylinder assembly. The washer-type spring should be installed so the outside diameter of spring will contact the guide in governor housing (3).5. Position the governor housing

Have questions with 09500-00213?
